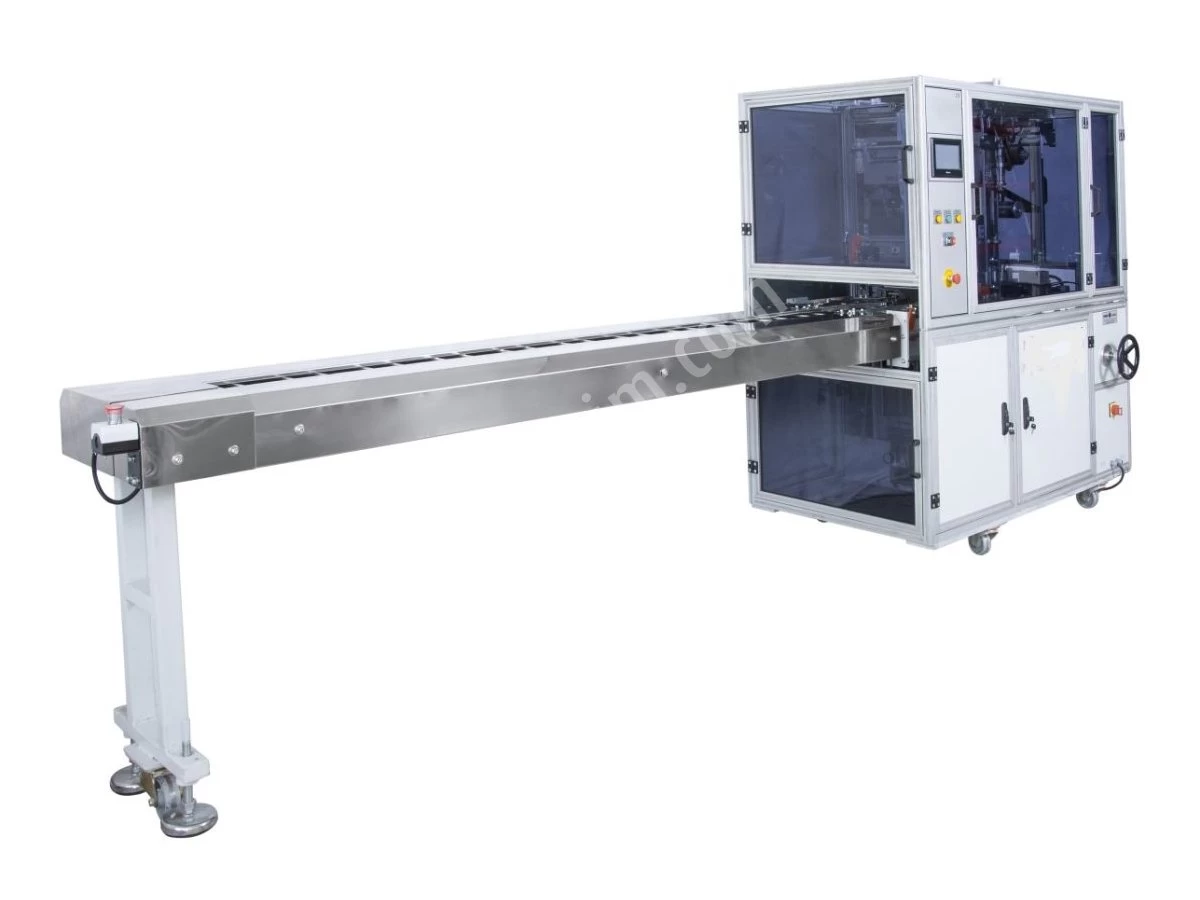

The Medical Syringe, Test Kit, Strip Test Packaging Machine is designed for wrapping small to medium-sized square and rectangular boxes in an envelope-type package, either individually or in sequence. This user-friendly machine allows packaging automation through an encoder-controlled PLC system with a touch screen, simplifying mold changes. With the flexibility for manual or automatic feeding depending on the box's delivery from the production line, this packaging machine is versatile for different packaging needs. For ease of opening, an opening band can be attached to the packaging film. Additionally, when using colored or printed external film, a photoelectric cell system and date coding equipment can be optionally installed.
| Machine Dimensions |
H190 x W100 x L430 cm |
| Weight |
950 Kg / 1,100 Kg |
| Feeding Belt Dimensions |
H90-100 x W25-30 x L140-150 cm |
| Power |
3.5 kW, 380/400 VAC 3 Phase 50/60 Hz |
| Air Consumption |
6 bar / min |
| Noise Level |
70-80 Decibels |
| Capacity Per Minute |
20-40 Based on Product Volume |
| Package Dimensions |
| Length (A) |
Min: 50mm / Max: 320mm |
| Width (B) |
Min: 30mm / Max: 120mm |
| Height (C) |
Min: 20mm / Max: 80mm |
| OPP, BOPP, PVC Length - Cellophane Length Mechanically Adjustable |
Min: 110mm / Max: 420mm |
