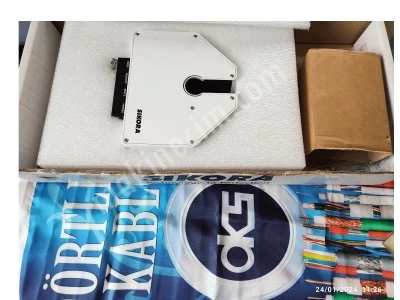

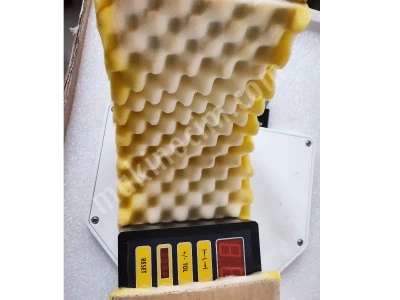

Lump 2000 Detector 2025 Xy (Dent, Lump, Diameter Measuring Device - (2-Axis Lump Detector)

LUMP 2000 DETECTOR XY 2025 ( WE 2 PİECE HAVE )

EXPLANATION

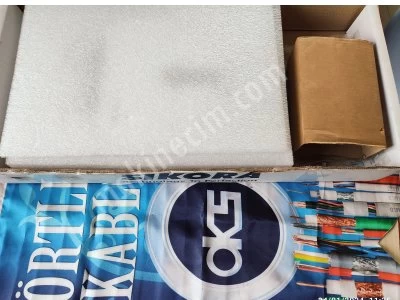

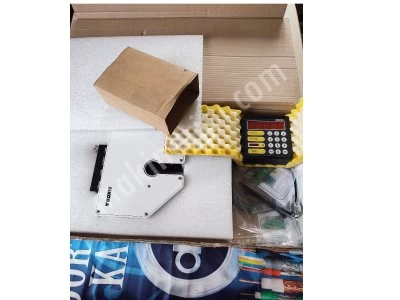

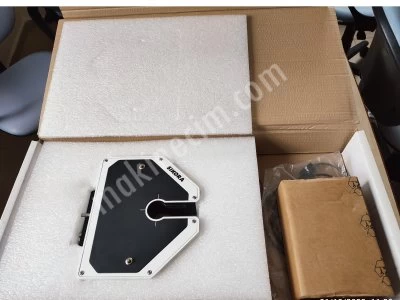

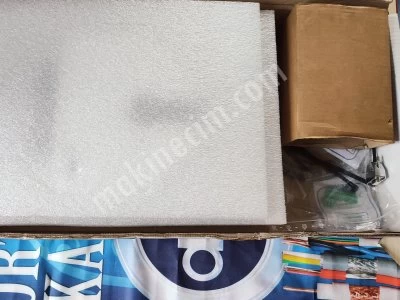

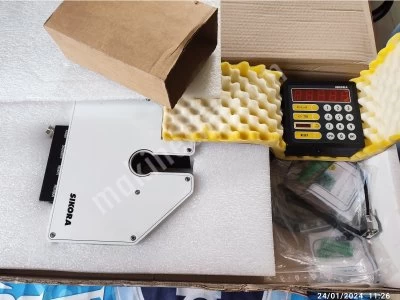

NEVER USED, STORED IN ITS BOX.

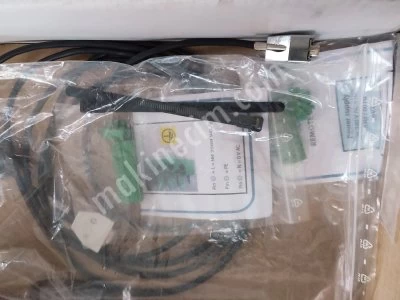

BOX AND INVOICES ARE AVAILABLE.

FEATURES;

Dual sensor and differential measuring principle

Error analysis for type, size, length and location

Lengths from 0.5 mm can be detected with Lump / Neck from 0.01 mm

Line speed 10 – 3,000 m/min

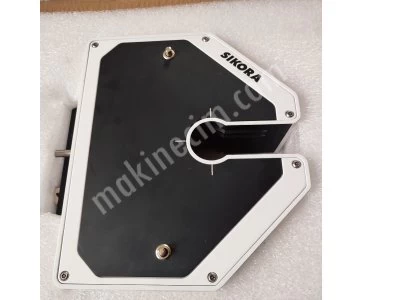

LUMP 2000 DETECTOR 2025 XY (2-axis pellet detector)

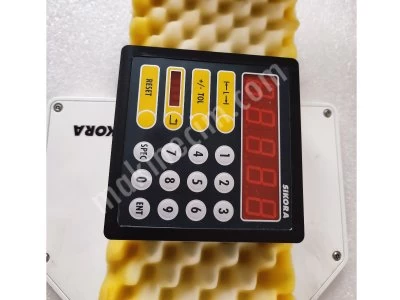

A powerful signal processor determines the height, depth and length of the fault, visualizes them digitally and records the data. The combination of dual sensor technology (differential measuring principle) with infrared light sources allows the LUMP 2000 to reliably detect errors even under challenging conditions such as dirt or extremely high vibrations.

MODEL LUMP 2000 DETECTOR 2025 XY

Product Diameter 0.5 - 10 mm 0.5 - 25 mm

Minimum fault length 0.5 mm 0.5 mm

Speed range 1 to 3,000 m/min 1 to 3,000 m/min

Dimensions (Heightx WidthxDepth) 140 x 140 x 55 mm 258 x 218 x 70 mm

Power supply 100 - 240 V AC ± 10 %, 50/60 Hz 100 - 240 V AC ± 10 %, 50/60 Hz

Temperature range + 5 to + 50°C + 5 to + 50°C

Interfaces RS485, RS232 (diagnostics);

Optional: analog input for lump/neckdown tolerance or alternatively industrial field buses (Profinet IO, EtherNet/IP,

Profibus-DP, CANopen, DeviceNet) RS485, RS232 (diagnostics);

Optional: analog input for lump/neckdown tolerance or alternatively industrial field buses (Profinet IO, EtherNet/IP,

Profibus-DP, CANopen, DeviceNet)
