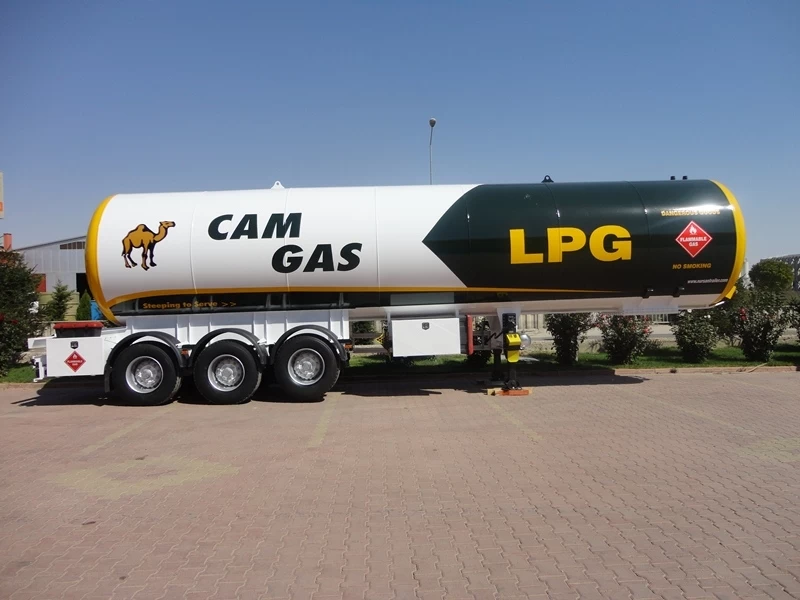

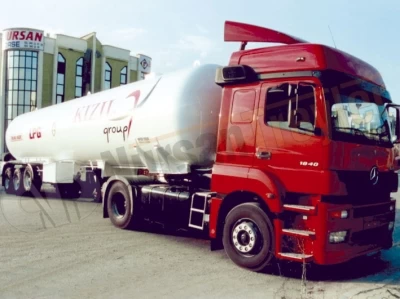

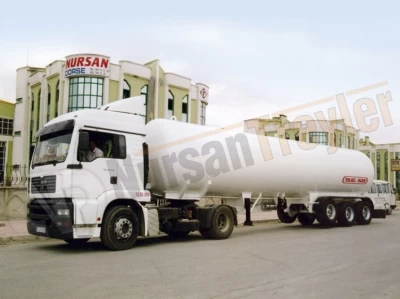

LPG TANKER

BRAND

NURSAN

TANK TYPE

Horizontal Cylindrical

PROJECT CODE

AD-2000 / PED97 /23/EC

DESIGNTEMPERATURE

Min -20˚C / max +65˚C

DESIGN PRESURE

17,5 bar

TEST PRESURE

26,5 bar

MATERIAL

P355 GH

HEAD TYPE

Elipsoidal

EXTERNAL TANKDIAMETER

2.400 mm.(Optional)

BODY TANKTHICKNESS

10 mm

HEAD TANK THICKNESS

12 mm

TOTAL LENGTH OFTANK

11.200 mm.(Optional)

COROSION

1 mm

TANK VOLUME

30-35-40-45-50-57-60 M3

EQUIPMENT TANKSOVER

Hidraulic Valve DN 80à 3 units

Hydraulic Operator à1 piece
2 "global Valves à3 units
2 "Safety Valveà2 units
Rotageç (Rotary Level Indicator) à 1 piece
Glycerine pressure gauge (0-25 bar), Ø 63à 1 piece
Thermometer (-30 / 60 ˚ C) Ø63 à 1 piece
Acme Adapter, and the cover à 3 units
Drain Valve à 1 piece

Man Hole à 20 “ PN 40 (1 unit)

Fix Level Meter à 70%, 80%, 90%

Blasting and Painting

SA2.5 the quality of the exterior of the tankshot blasted, epoxy primer after sanding the surfaces with shopprimer is to be implementedand the tank will be painted with white acrylicfinish. The customer wants to be pasted on top of the tank other hazardous substancesand other articles.

Control (Inspectionand Tests)

Control Costs NURSAN 'to belong to ahydrostatic tank to be tested and the testcertificate by Germanischer Lloyd will be givenan independent inspection body.

• Hydrostatic pressure test
• Size Control
• Control and Certification of Materials
• examine the accounts and control of the project and

CERTIFICATION

ISO 9001-2008 VE EN 3834-2

WELDING METHOD

All welders are certified according to EN 287-1:2004 standard. Submerged arc welding andfull penetration will be made by welderscertification. All junctions will open the mouth of the source standards. EN ISO 14171Welding filler materials to be appropriate.
Welding on the tank:

·         Body and Camber : SAW SAW + SMAW

·         Nozzle Sources: GTAW, or SMAW

·         Other Resources: GTAW, or SMAW

HEAT TREATMENT

Heads apply only relieving stress.

WAVE - BREAKER

3         units will have the tank wave - breaker.
