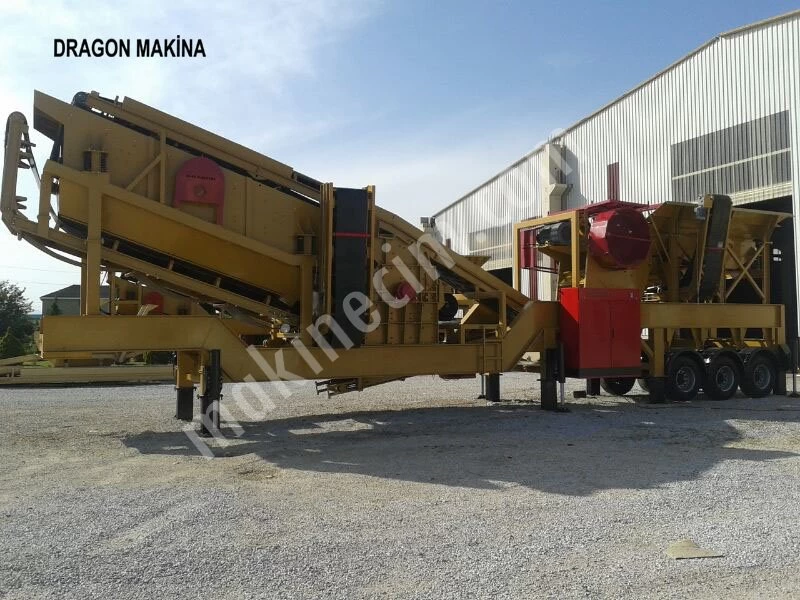

LAST NEW GENERATION SYSTEM PORTABLE CRUSHING PLANT 900 TURBO

Mobile: 0555842 86 86

Turbo 900 Mobile Jaw Crusher in Hard Materials

New System Mobile Crusher Plant Capacity 120 - 200 tons / hour

Turbo 900 Mobile Crushing and screening plant a new generation of closed-circuit

Dragon 900 closed-circuit crushing system All systems were collected on a single platform , with 1 GB portable.

Designed to be in operation within 15 minutes of edilmişd .

Current world and Turkey, the construction of our most preferred in the market .

Hard and difficult to break stone (basalt , granite ) and minerals ( Iron Ore, Chrome Hardware , Quartz ) as the most suitable hammer to shatter one of materiel .

Abrasive Materials in breaking the ideal crusher unit.

* And the hopper

Edilmekd 2 is driven feeder system . In this way, works smoothly and is sunulmakd minimum maintenance .

Excavators and Loaders feed hopper feeder is suitable for permanent Kamyonla feeding studies done with extra compartment .

In the hopper feeder and all wear points are korunmakd with interchangeable wear armor .

Tray feeders are in the playoff system . By-pass conveyor eliminated thanks to the stockyard earth materials spill.

* Jaw Crusher ()

Size : 900x650 mm Primary type

Engine power: 75-90 kW

Jaw Crusher is easily adjustable mechanism and competition .

* System 1000 mm

Crawler is a wheel conveyors .

* Vibrating types of High Yield

Size : 1600x5000mm

Engine Power 18.5 KW

Floors: 3 Floor

900 mm Hydraulic Cone Crusher Hydraulic Cone Crusher

Engine: 110-132 kW

* Stock conveyor 1000 mm

Folding type

* Stock Conveyor 600 mm Folding type 2

* Return Conveyor Collection 1 600 mm

* Return Conveyor 2 750 mm

* Mobile Chassis Chassis System 3 -Axis Specialty constriction

*

Online birlikd a total of six hydraulic foot 8 foot 14 foot vardır.ayak normal work printed instantly becomes 14 .

2 for opening and closing the lift piston hammer has also these special control system is controlled by the piston 8 .

Hydraulic Power System 125 Litres

Magnetic Conveyor Belt 750 mm (optional )

* Board Material , Telemecanique , Schneider Electric is branded .

* Soft Starter Panel Systems Abba in the system and special control system is available.

Uzakd the Control ( Radio Control System ) is yapılabilmekd control of all functions .

Generator System is optional Cummins, Perkins, Doosan, Deutz 6 cylinder diesel engine brands and Marelli alternator .

Capacity: Fragile Materials and Supply, which vary according to the size of the final product is 120 - 200 ton capacity.

Tozsuzlandır System , Conveyor high-pressure water to suppress dust in the nozzle of the spray powder is blocked.

Feeders would Vibromotorl Emtaş or Italvibras , Olin is Brand .

Drive drum is rubber -coated and Gear Type .

Electric Motors GAMAK , Emtaş , is International Branded .

Indirect special gear reducers 3 respectively.

Rubber Conveyor Belts are Brand Derby or Eksaş .

Bearings: SKF bearings or equivalent

Eregli Iron and Steel flat products used in the product is not A1 quality .

* By-pass system (optional )

* Magnetic magnet (optional)

* Generator System (Optional)

* Truck addition which is used to make the feed hopper (Optional)

* Tozsuzlandır System ( Optional)

* A soft starter is used instead.

This system allows adjustment of the crusher operation cycle , thanks to these devices also work with Generators Demerajsız study , the selection of generators and low fuel consumption sağlanabilmektedir.takrib Low fuel consumption 26 - 30 Lt / hour ( Optional)
