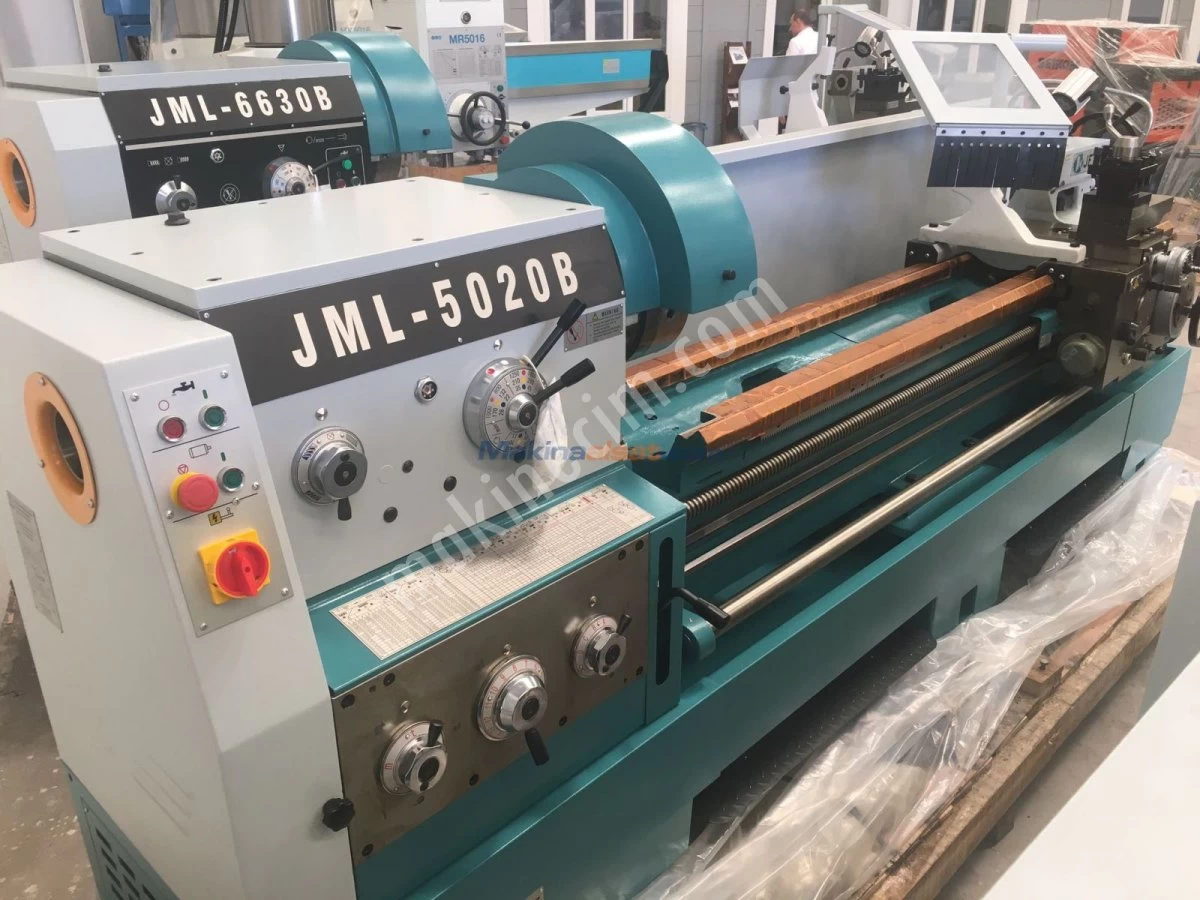

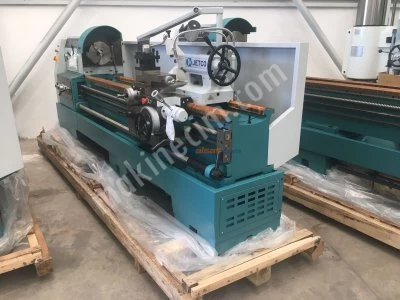

Jetco Jml-5020B Lathe

JETCO JML-5020B UNIVERSAL LATHE

Over Counter Diameter mm 500

Over Sport Dial Diameter mm 300

Diameter in Bridge Gap mm 710

Counter Width mm 405

Distance Between Tailstocks mm 2000

Bridge Channel Length mm 240

Spindle Tip no ISO702/II No:8 camlock

Shaft Hole Diameter mm 82

Turnover Level 24

Speed Range RPM 9 - 1600

Main Engine Power kW 7.01.1900

Longitudinal Feed Range mm/rev 0.028 ~ 6.43 ; (93 sorts)

Transverse Feed Range mm/rev 0.012 ~ 2.73 ; (93 sorts)

Metric Thread Pitch mm

Inch Pitch tpi 72 ~ 1/8 tpi ; (46 sorts)

Module Tooth Pitch module 0.5 ~ 112 ; (42 sorts)

DP Thread Pitch DP 56 ~ 1/4 DP ; (45 sorts)

Transverse Support Movement mm 320

Cross Support Movement mm 145

Pinole Diameter mm 75

Pinol Tip Metric Mors No:5

Pinole Movement mm 150

Number of Stations 4

Tool Size mm 25 x 25

Water Engine Power kW 0.06

Length mm 3632

Width mm 975

Height mm 1230

Weight kg 2800
