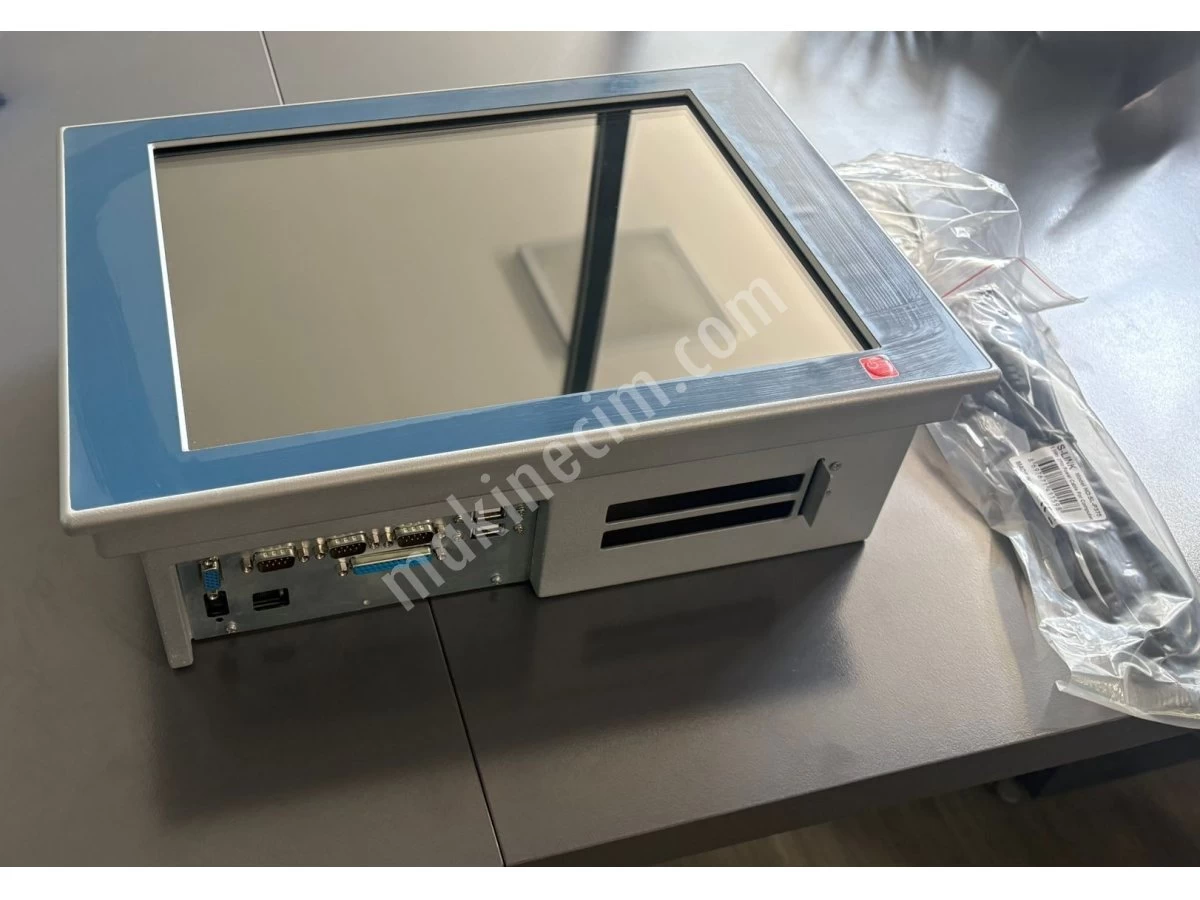

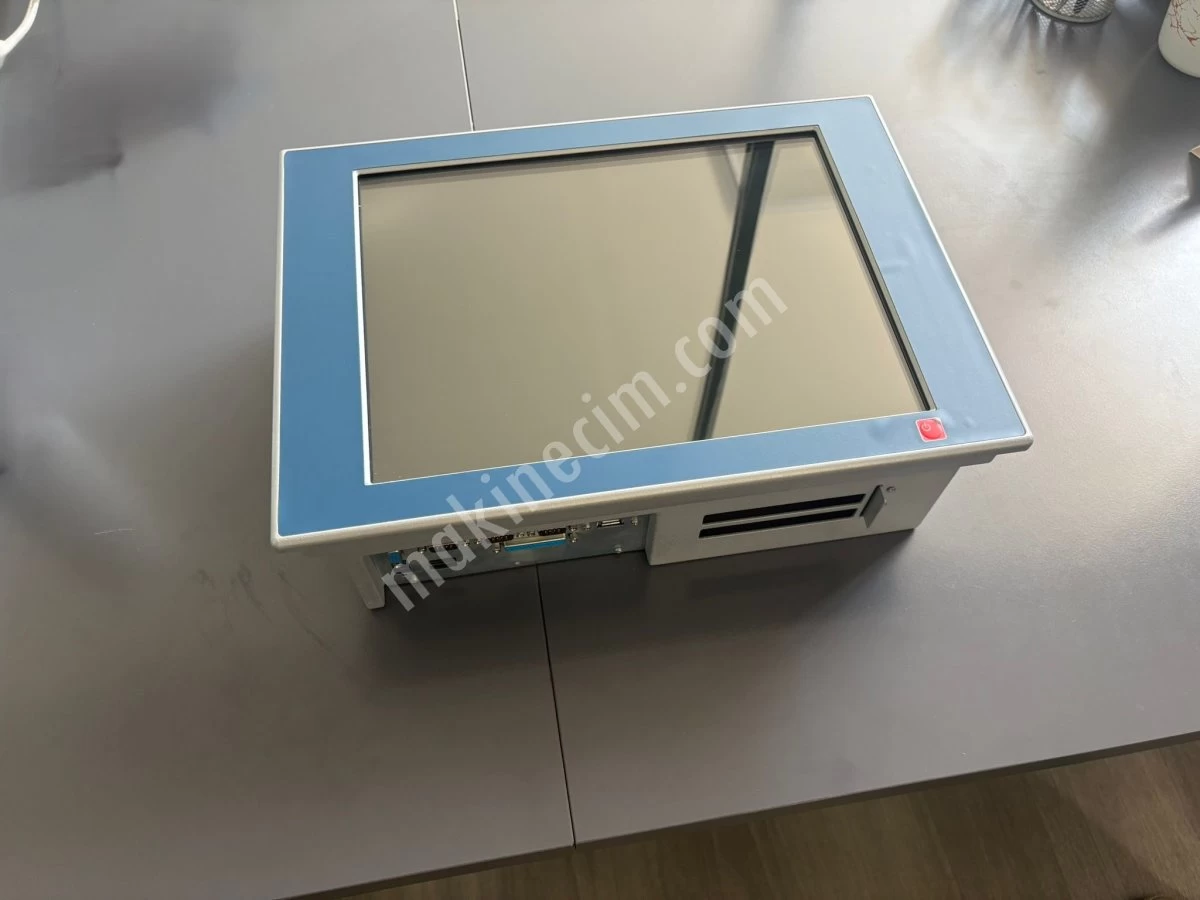

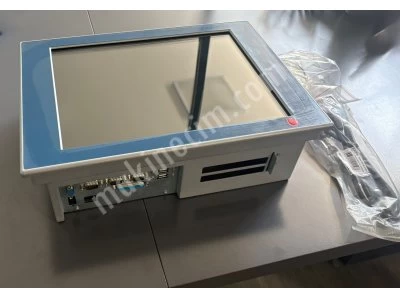

Industiral Ipc / Wındows Xp / Dos / Isoboard

Mother Board:

embedded VIA C3 TM, Eden TM Low Power EBGA processors.

133/100 MHz CPU Front Side Bus (FSB)

DRAM interface synchronous or pseudo synchronous with CPU FSB speed of 133/100/66 MHz Mixed 1M/2M/4M/8M/16M/32MxN DRAMS

1 DIMM 168 Pin socket supported up to 512MB

3.3V DRAM interface with 5V-tolerant inputs

Support single channel support two UltraDMA-100/66/33 enhance IDEAC-97 link.

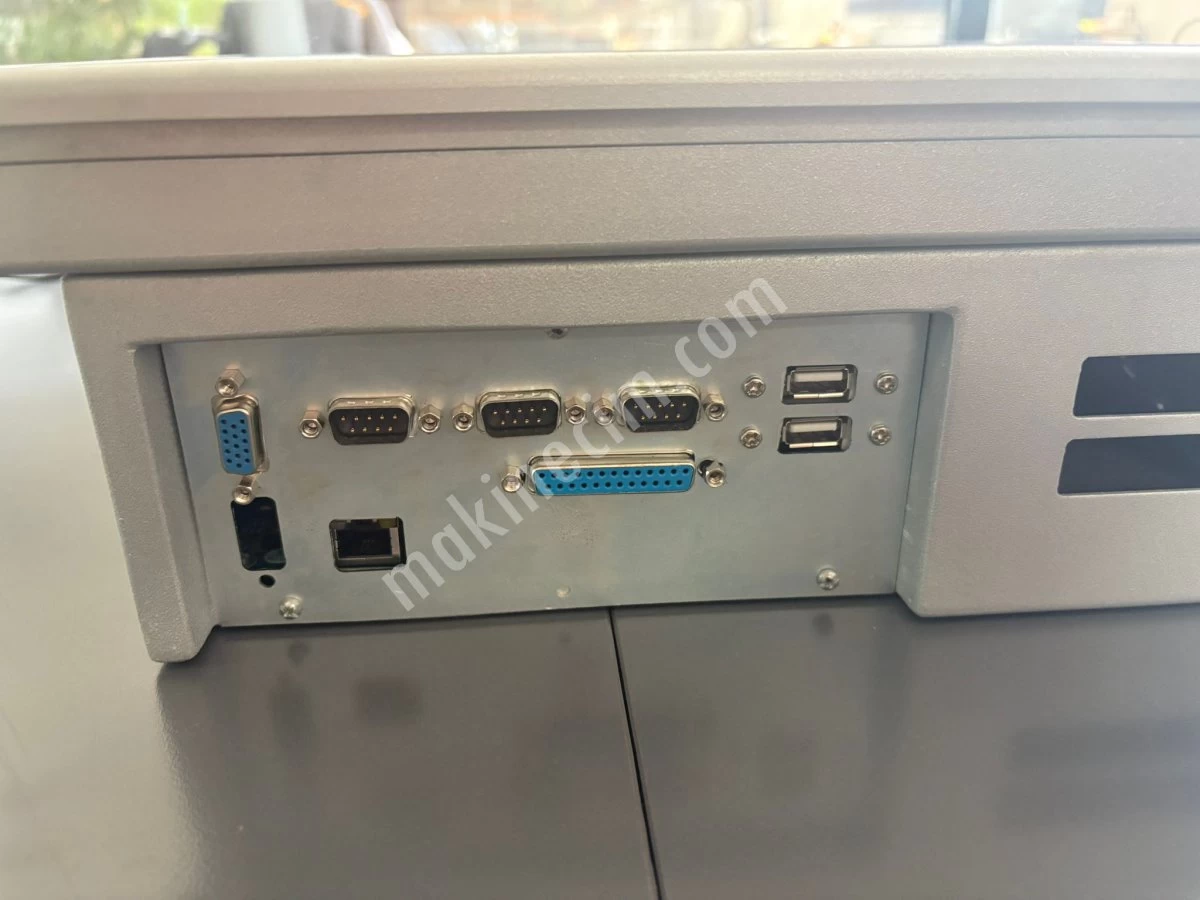

On-board built-in 2 USB ports.

Integrated Super-I/O support 4 Serial with power selector and 2 parallel ports.

Optional RS-422/485 via COM2

System Hardware monitoring

Keyboard/mouse interfaces.

RTC/CMOS

PCI-2.0 compliant, 32 bit with 5V tolerant inputs.

33 MHz operation on the primary PCI bus

188pin expansion slot for both PCI and ISA Bus signals.

PC99 Hardware Support

Watch-Dog-Timer support 1-255sec programmable.

On-board support Realtek or Intel 82551QM/ER 10/100 LAN adapter with

RJ-45 port.

AGP v2.x compliant

Integrated AGP Bus 2D/3D graphic accelerator.

Windows 95 OSR-2 VXD and integrated Windows 98/NT 4.0 miniport driver support

BIOS shadow at 16KB increment

Display: 15'' TFT LCE (1025X768)

HDD: 80GB

Power Supply Unit:

Model NameENP-7025B

Brand Enhance Technology

Compatible DevicesPersonal Computer

Connector TypeATX

Output Wattage250 Watts

Form FactorFlex ATX

Wattage250 watts

Cooling MethodAir

Item Weight5 Pounds

PCI-Express Connector ConfigurationATX

External PCI BUS
