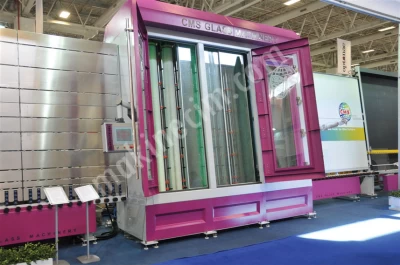

Igl-S 2500/8 High Performance Insulated Glass Production Line With Hydraulic Panel Press and Online Argon Gas Filling

Price :	Ask For Price
Ad Code :	M-212780
Ad Type :	For Sale - New
Views :	1122
Date Updated :	24 Jul 2023
Production Type :	Special Production
Brand :	CMS Makine
Production Year :	2013

Cms Glass Machinery - Cms Makine

Türkiye - Kocaeli (İzmit) - Gebze

Beylikbağı Mah. 339. Sk. No:1, 41400 Gebze

Pre-Washing Unit, Flushing Unit and Main-Washing unit consisting of 8 brushes
Adjustable Washing and Drying Speed by using touch screen (up to 8 meter per minute)
Glass transfer drive system controlled by independent reducer and driver
Stainless steel equipments against corrosion
Long life and maintenance- free Chainless Brush Drive System
Chainless Roller Drive System for glass transfer in Washing Unit
3 Water tanks (150 liters each of them)
Good washing quality via heated water tank in Pre-Washing Unit
Easy access to washing unit via slider doors
Critical water level control system by magnetic safety switch
Low Noisy in Drying Unit made and covered by noisy isolate materials
Good Washing Surface via glass transfer rollers with low-vapor-emission
Continuous washing for different of glass sheets thickness
Good quality drying for thick glass sheets via mechanical self operating feature of air nozzles according to glass sheets thickness
Glass washing ( up to 30 mm glass sheets thickness)
Easy clearable spray-jet water nozzles
Drying fan designed for low energy consumption and noisy level
Energy-saving via Automatic Valve System on the Drying Unit during washing system off
Thick Pre-Washing Brushes moving back position for LOW E glass sheets activated from touch screen
Determination of the coating surface by Glass Determination Sensor (LOW E Sensor) for LOW E glass sheets
Good washing quality with soft brushes which 200 mm diameter and 0.15 mm brilless thickness
Good washing quality for soft coated glass sheets via adjustable brush speed from touch screen
Low water consumption with Close- Loop Water Filtration system
Providing quality washing water with 50 micron sensitivity filtration modules on the filtration system
Reverse-osmosis unit on the filtration system
Contactless glass transfer system via Air Cushing on the conveyor which located end of the washing unit
Dual-drive system on the conveyors
Pneumatic Guiding System on the Assembling Conveyor
Trigger belt driven Gantry Unit on the Assembling Conveyor
High production capacity via Stock conveyor between Assembling unit and Pressing unit
Providing both sensitive perimeter thickness and butyl force for insulated glass sheets pressured by servo proportional hydraulic driven system on the pressing unit
