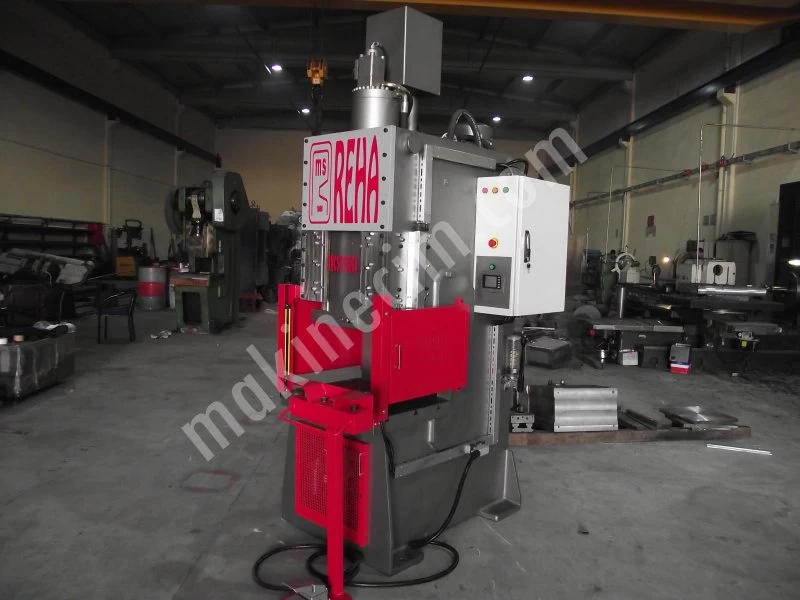

Hydraulic Press 125 Ton Double Effective Fast
| Price : | Ask For Price |
| Ad Code : | M-387294 |
| Ad Type : | For Sale - New |
| Views : | 1980 |
| Date Updated : | 02 Jul 2026 |
| Production Type : | Brand |
| Model : | ENT RH |
Reha Makina Sanayi
Türkiye - Konya - karatay
Fevzi Çakmak Mah. Astim sanayi sitesi 10753 sokak no: 20/F Karatay / KONYA
NOT : Konsan sanayi sitesi yanı ANKARA yolu üzeri
User's Store
Hydraulic Press 125 Ton Double Effective Fast Ad Description
| TECHNICAL SPECIFICATIONS | PRESS TYPE AND TONS | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | RHCTP 100400 | RHCTP 150500 | RHCTP 200500 | RHCTP 250550 | RHCTP 300600 | ||||||||||
| CAPACITY | TONS | 100 | 150 | 200 | 250 | 300 | |||||||||
| CUSHION PRESSURE | TONS | 40 | 60 | 80 | 100 | 120 | |||||||||
| STROKE | mm | 0 - 400 | 0 - 500 | 0 - 500 | 0 - 550 | 0 - 600 | |||||||||
| CUSHION STROKE | G | mm | 0 - 250 | 0 - 300 | 0 - 300 | 0 - 325 | 0 - 350 | ||||||||
| TABLE DIMENSIONS | a x b | mm | 750 x 1500 | 800 x 1700 | 900 x 2000 | 950 x 2200 | 950 x 2400 | ||||||||
| DISTANCE RAM - TABLE | F | mm | 600 | 700 | 700 | 750 | 800 | ||||||||
| RAM SURFACE | I | mm | 400 x 1500 | 450 x 1700 | 540 x 2000 | 540 x 2000 | 600 x 2400 | ||||||||
| DISTANCE BETWEEN TWO BODY | E | mm | 1200 | 1400 | 1700 | 1900 | 2100 | ||||||||
| THROAT DEPTH | J | mm | 375 | 400 | 450 | 475 | 475 | ||||||||
| RAM SPEED UNLOADED | mm/sec | 270 | 260 | 240 | 240 | 240 | |||||||||
| RAM SPEED UNDER LOADED | mm/sec | 22 | 20 | 18 | 18 | 16 | |||||||||
| RAM RETURN SPEED | mm/sec | 230 | 220 | 220 | 220 | 220 | |||||||||
| PRESS WIDTH | B | mm | 2300 | 2400 | 2400 | 2500 | 2600 | ||||||||
| PRESS HEIGHT | A | mm | 3650 | 3900 | 3900 | 4050 | 4200 | ||||||||
| PRESS DEPTH | C | mm | 1950 | 2000 | 2075 | 2150 | 2200 | ||||||||
| PRESS WEIGHT | Kg | 15800 | 17850 | 19600 | 21250 | 24150 | |||||||||
| MOTOR POWER | Kw | 16 | 18 | 22 | 22 | 29 | |||||||||
| MOTOR SPEED | rev/min. | 1450 | 1450 | 1450 | 1450 | 1450 | |||||||||
* WE RESERVE THE RIGHTS TO MAKE CHANGES IN DESING AND DRAWING
