Hydraulic Oil Filtration

HELL GENERATOR 5000-2 24V

Device description:

The AD 5000-2 24V is a portable microfiltration and deep cleaning unit for hydraulic, transmission, turbine and process oils, designed to remove very fine solids (> 1 µm) and remove water.

Technical data:

Pump capacity: up to 5.5 l/min (ISO 46 oil at 40°C)

Achievable purity: max. 09.12.6 according to ISO 4406

Motor: 24V

Pump: gear

Filtration accuracy: 1 micron

Number of deep filters: 2

Medium viscosity: 10 to 220 cSt

Connections: 1/2?

Max pressure: 10 bar

Maximum temperature: 60? WITH.

Possibility to install a particle counter: yes

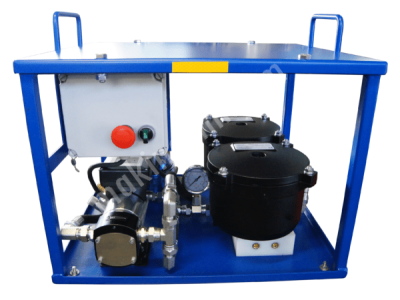

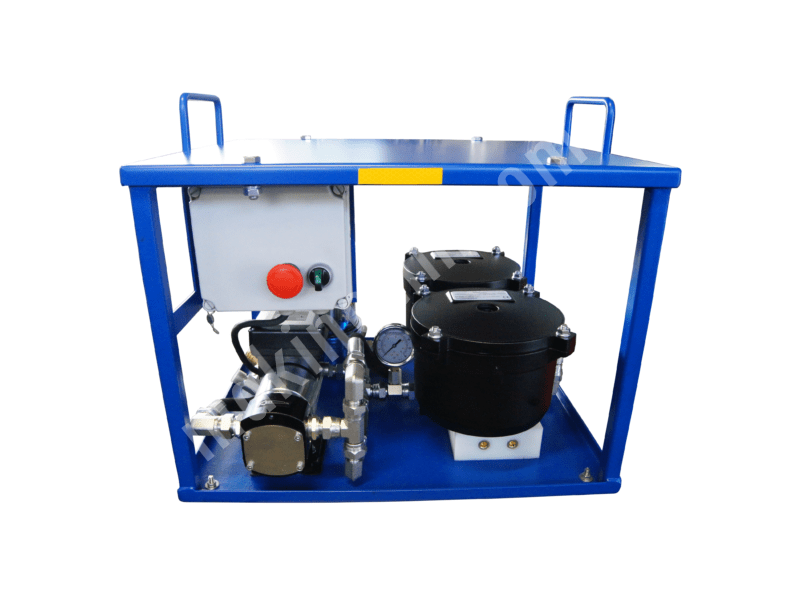

Filter unit AD 5000-2

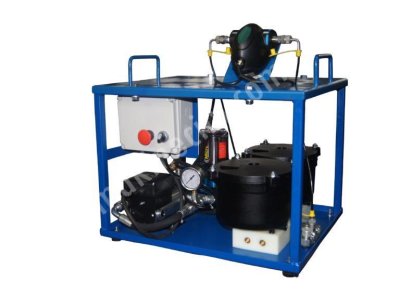

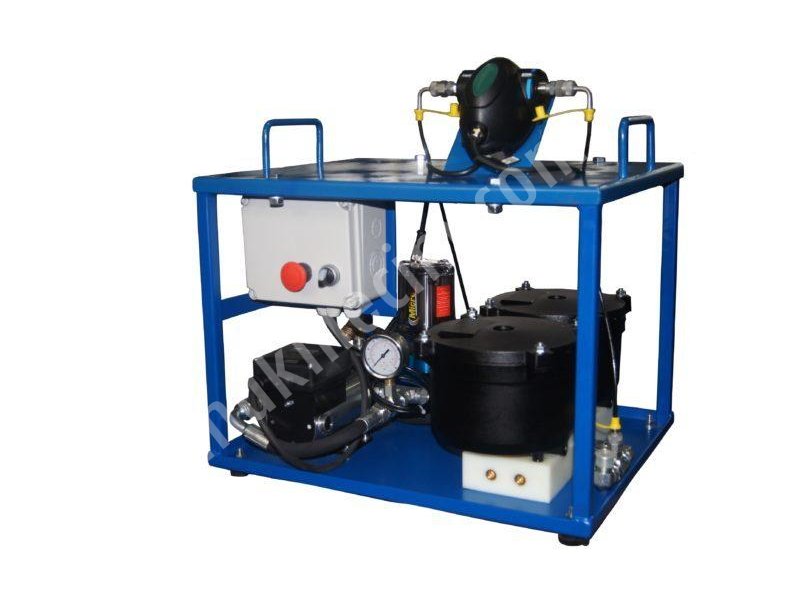

Filter unit AD 5000-2 with two filter housings

Included:

2 deep filter housings

Pressure gauge showing the contamination of the liners

2 filter cartridges included

1/2 suction hose?

1/2 drain hose?

Safety valve (opening pressure 4 bar)

Safety bypass hose on the pump

Mesh pre-filter to remove coarse dirt

electrical box

Safety switch

Steel frame for easy transportation of the filter block

Easy on/off

Dimensions: L: 60 cm x W: 40 cm x H: 35 cm

Cartridge replacement frequency

The cartridge replacement interval depends on many factors, including the degree of oil contamination and water content. The signal to replace cartridges is:

Pressure increase by 1 bar compared to outlet pressure

The service life of the cartridge is not less than 200 hours.

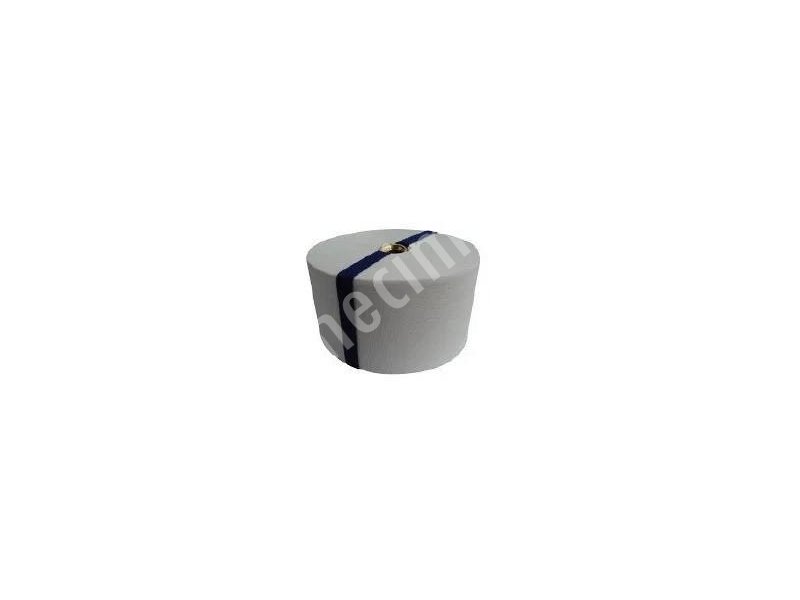

Used cartridges: SDFC (AD2) deep filters
