Hydraulic Oil Cleaning Microfiltration

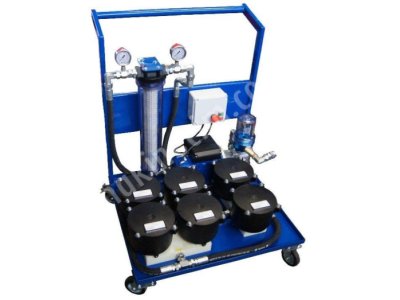

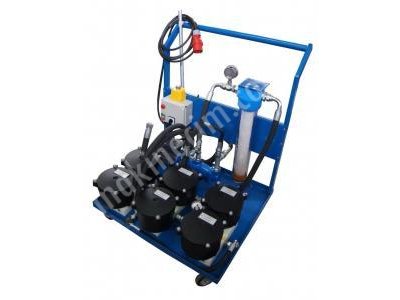

UNIT AD 6000-6

Device description:

The AD 6000-6 is an efficient mobile microfiltration and deep cleaning unit for hydraulic, gear, turbine and process oils, adapted to remove very fine solids (> 1 µm) and remove water.

Technical data:

Pump capacity: 8.8 l/min (ISO 46 oil at 40°C)

Achievable purity: max. 09.12.6 according to ISO 4406

Motor: 0.55 kW, 230 V

Pump: gear

Filtration accuracy: 1 micron

Number of deep filters: 6

Medium viscosity: 10 to 220 cSt

Connections: 3/4?

Pressure: 9 bar

Maximum temperature: 45? WITH.

Dimensions: 700 x 800 x 1000 mm

Possibility to install a particle counter: yes

Ability to install a magnetic filter: yes

unit AD 6000-6

Included:

Gear pump

6 filter cartridge housings

6 SDFC deep filter cartridges

Pre-filter (water separator) with candle filter

2 manometers

2 pcs of a two-meter hose

electrical box

Trolley with brakes

Easy on/off

CE

It is possible to install a more powerful pump with a 400 V motor.

Candle filter housing:

Rugged and reliable design suitable for most industrial applications

Capacity? 2.9 liters

Empty case weight? 8 kg

Full body weight? 16.85 kg

Candle filter

High quality polypropylene filter that removes solid particles and separates water.

Maximum temperature? 45?C

Ammo accuracy?

Cartridge length from 1 to 150 microns? 508 mm

Cartridge replacement frequency

The cartridge replacement interval depends on many factors, including the degree of oil contamination and water content. The signal to replace cartridges is:

Pressure increase by 1 bar compared to outlet pressure

The service life of the cartridge is not less than 200 hours.

Used cartridges: SDFC (AD2) deep filters
