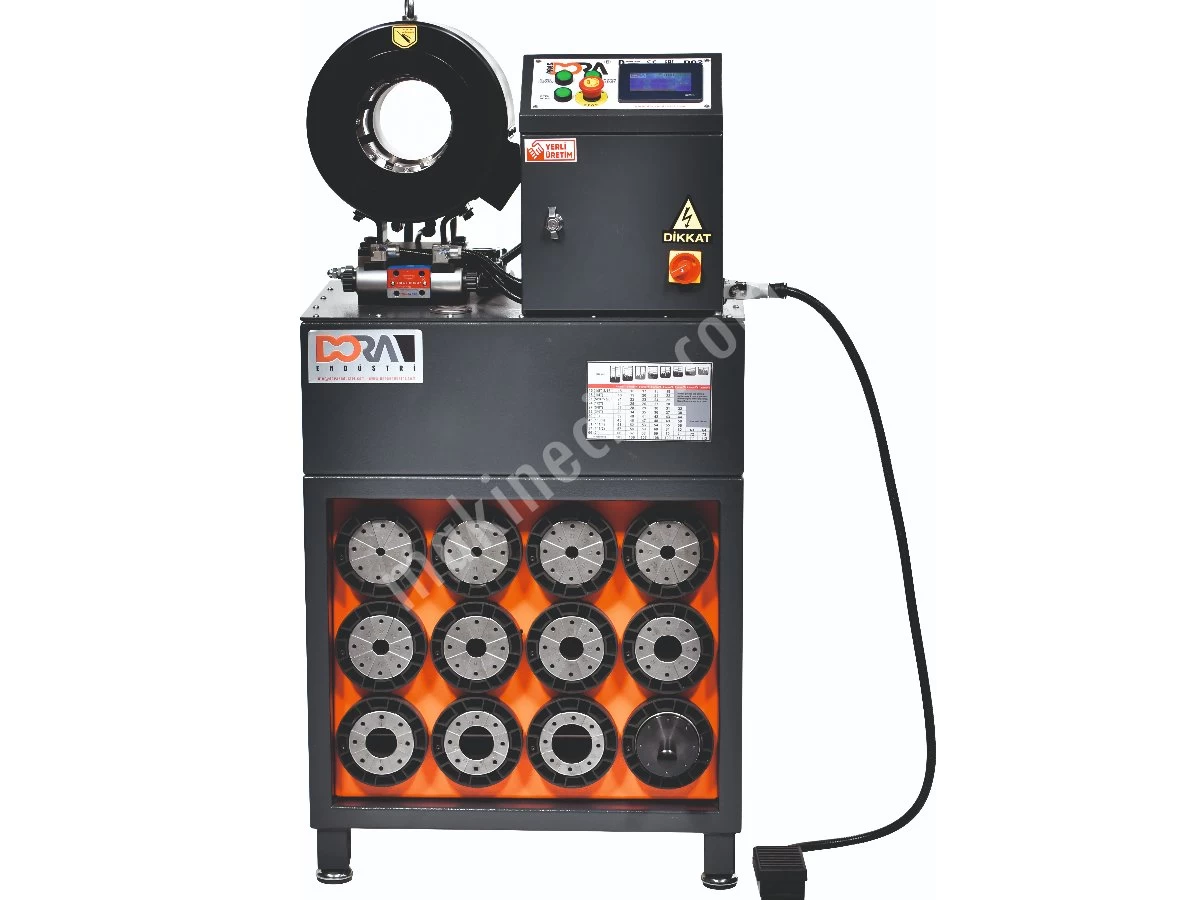

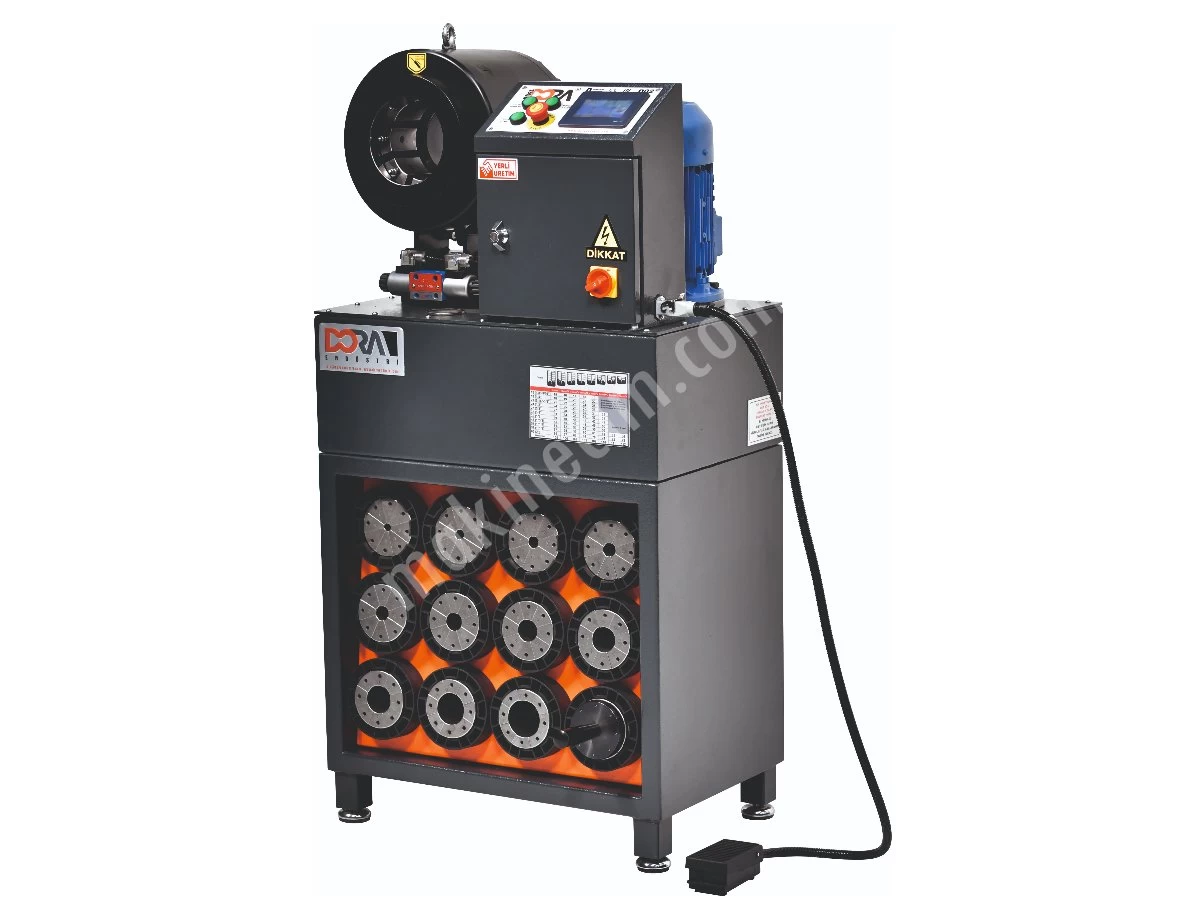

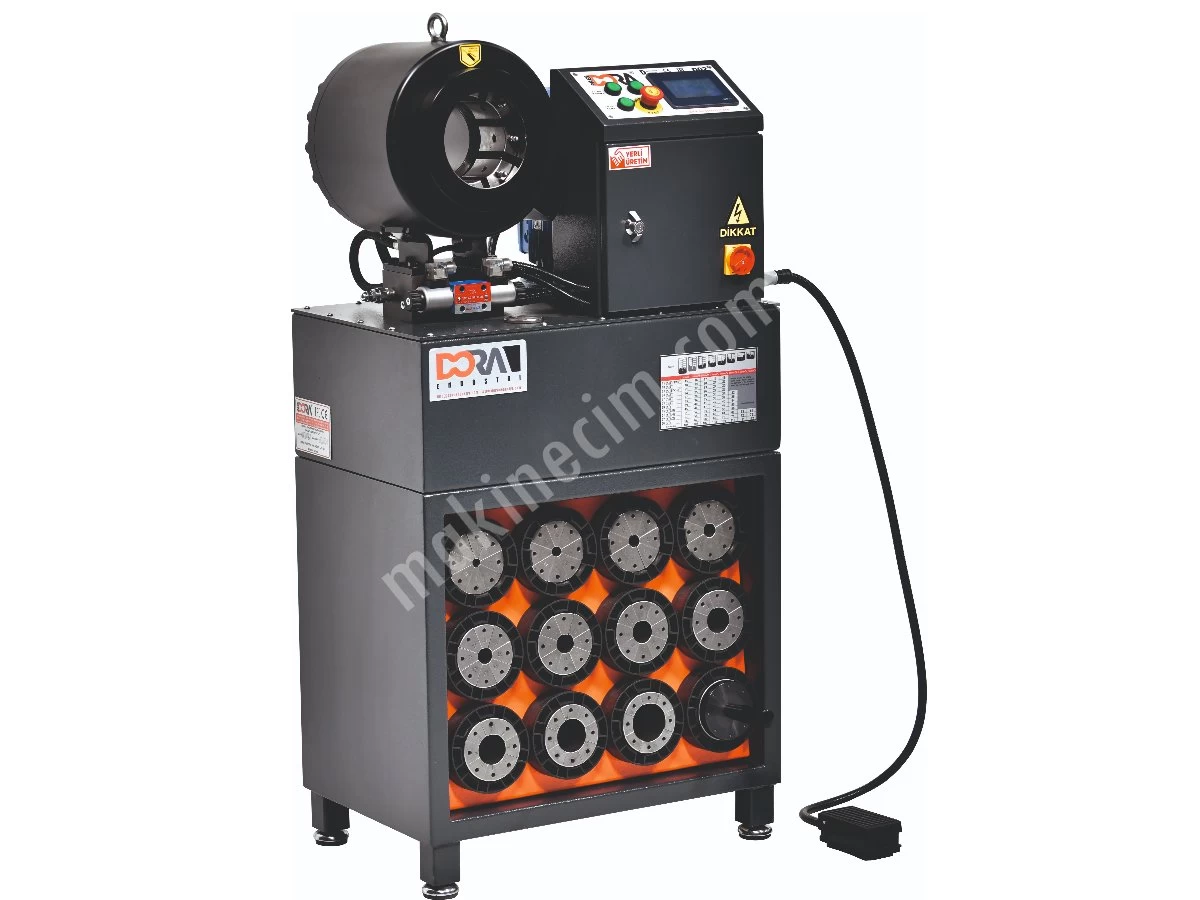

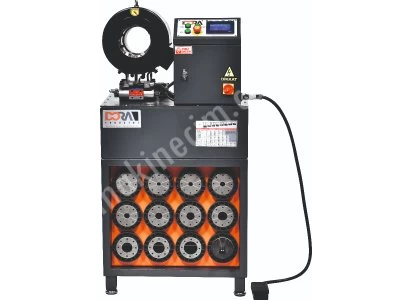

Hydraulic Hose Crimping Press

Crimping Capacity : From 3/16’’ To 2’’

Die Set Dimensions (11 Types) :15-18-21-24-27-33-39-45-51-57-66 mm

Die Pieces Per Set :8 Pcs

Quick Changing Tool :Standard

Jaw Opening Capacity : +34 mm

Working Pressure : 20-350 bar

Total pressure force : 200 tons

Body Material : 7131 Steel

Housing&Die Material : 4140 Steel, 60 Hrc Hardness

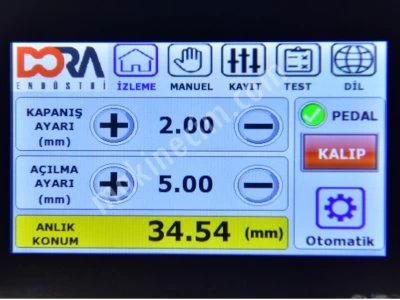

Adjustment Options : Digital

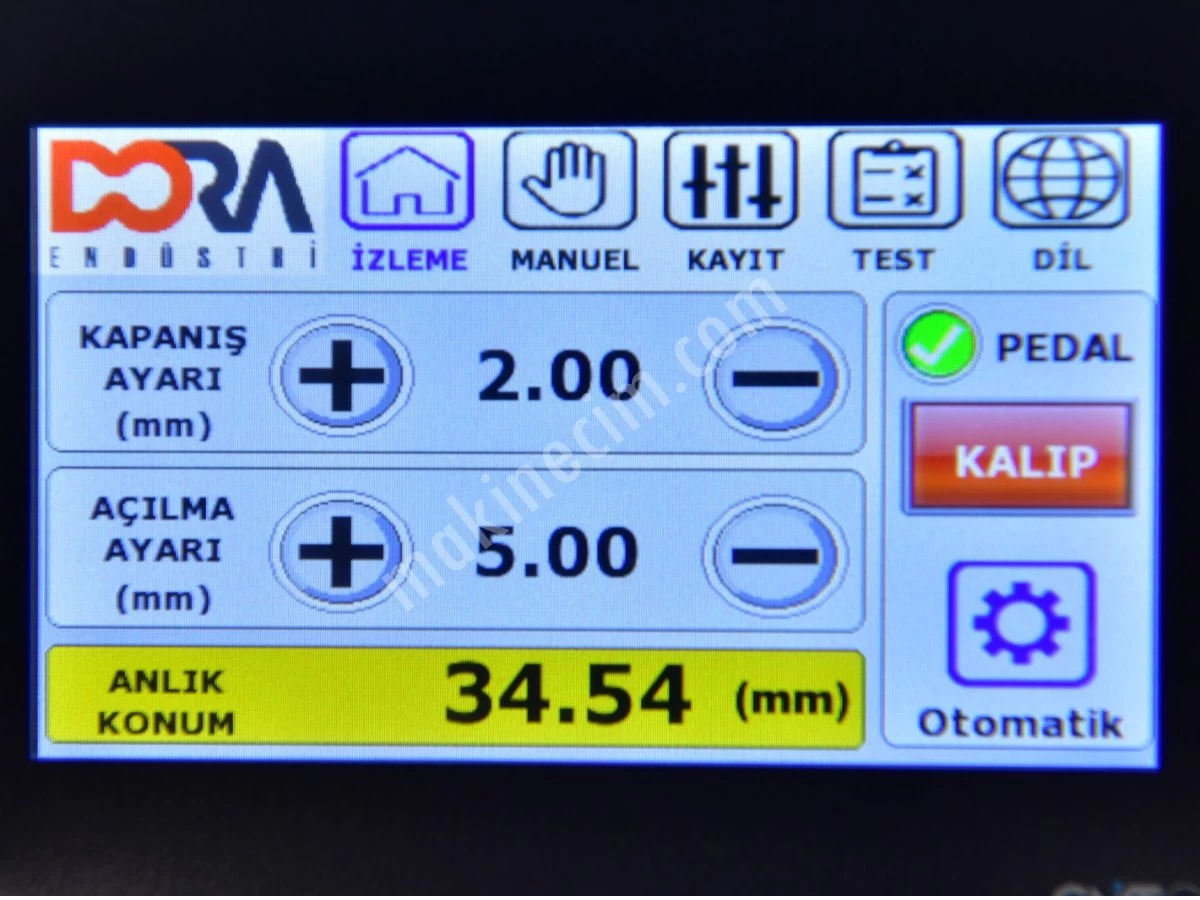

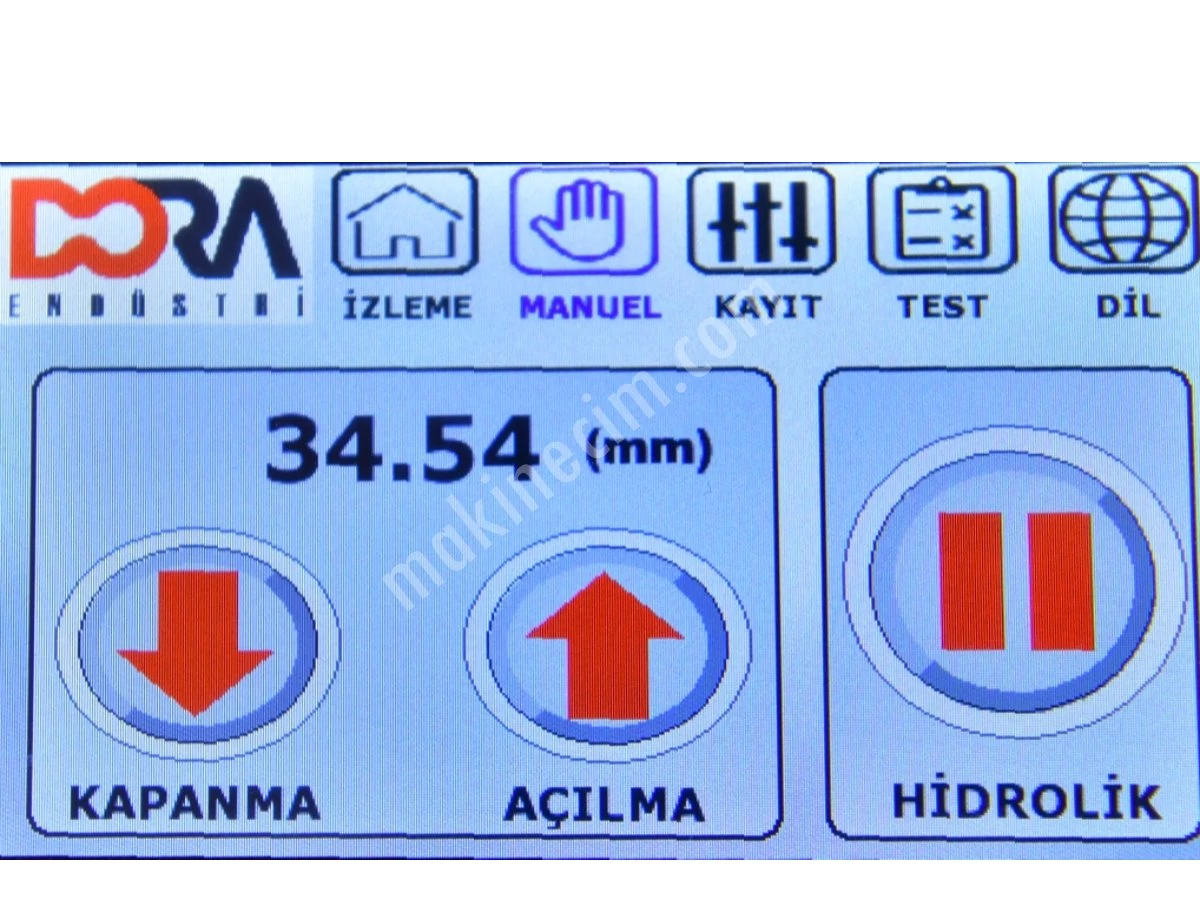

Press&Release Distances Settings :Digital

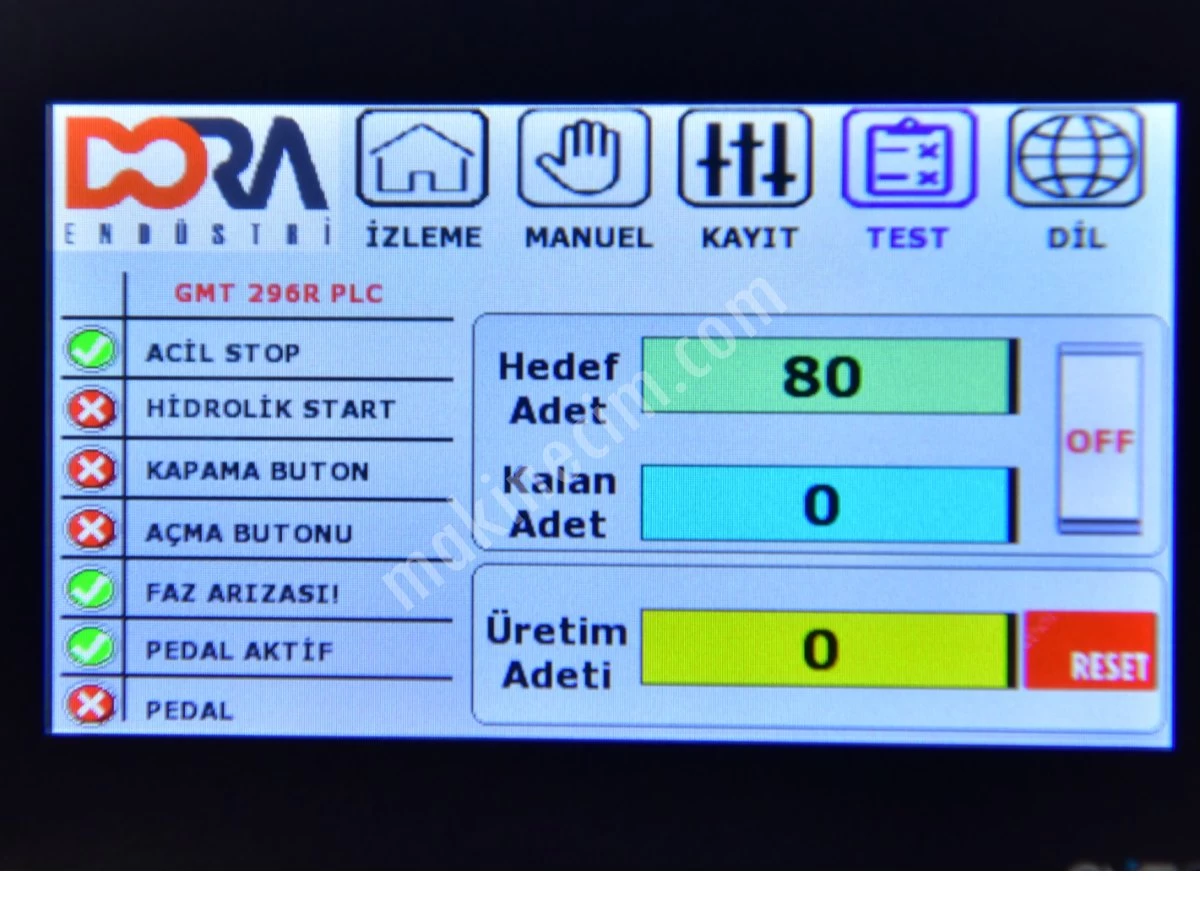

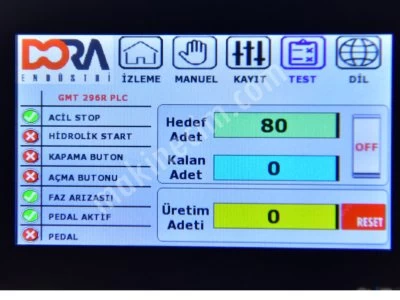

Operation Counting :Digital

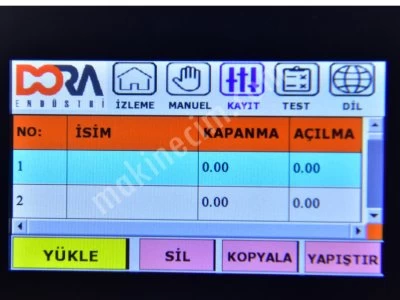

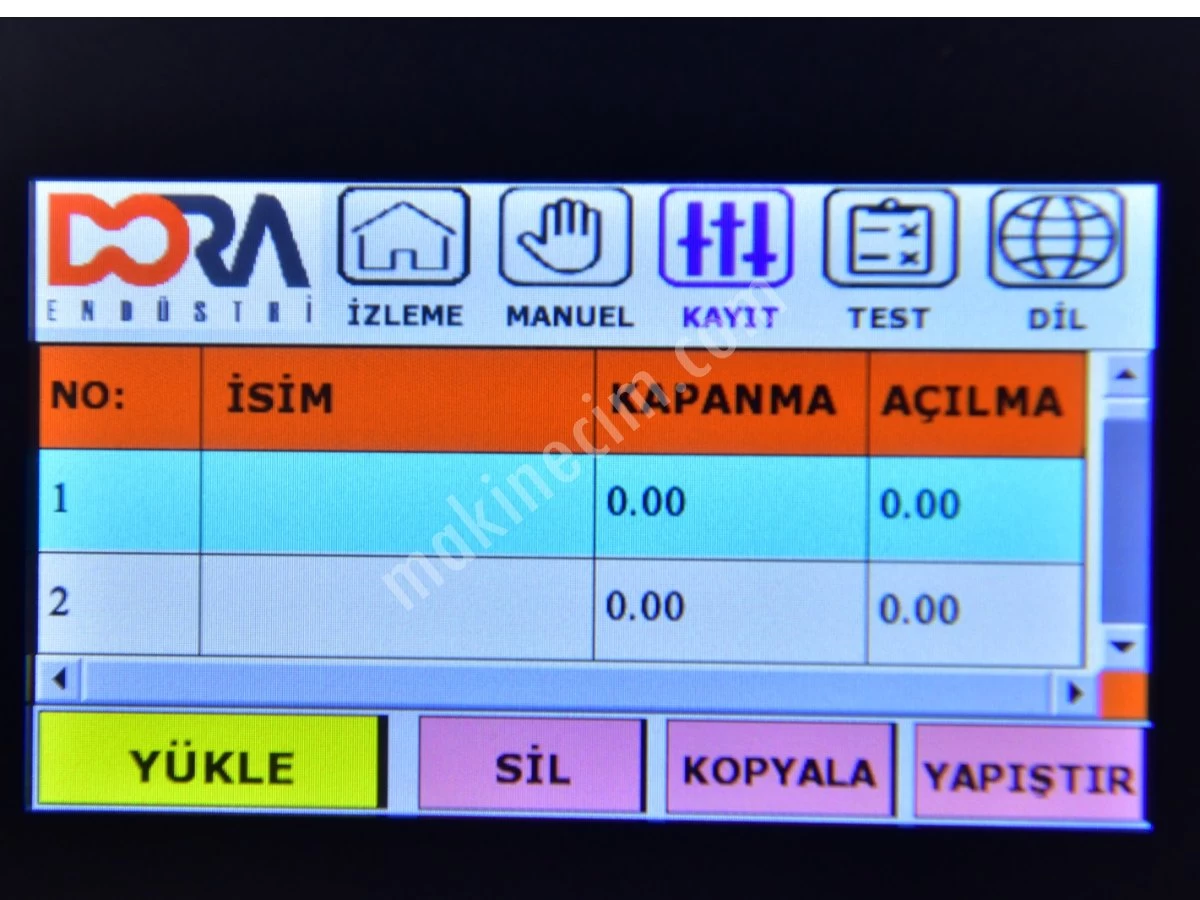

Number of Setting Record Memory : 100

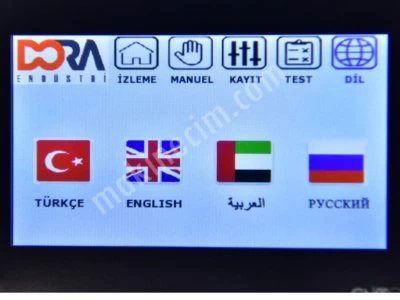

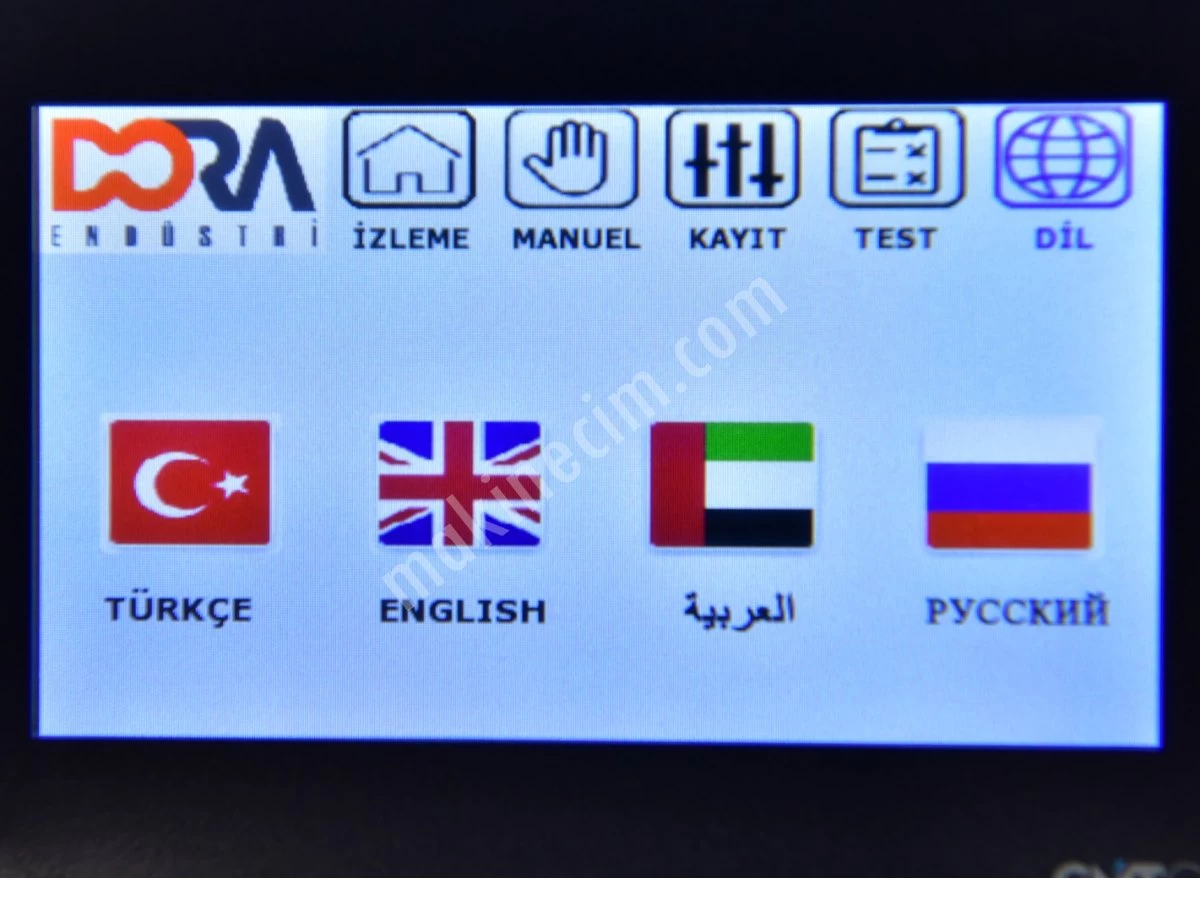

Available Languages :English, Turkish, Arabic and Russian

Foot Pedal : Standard

Electric Motor :380 V, 4 kW, 1.500 rpm

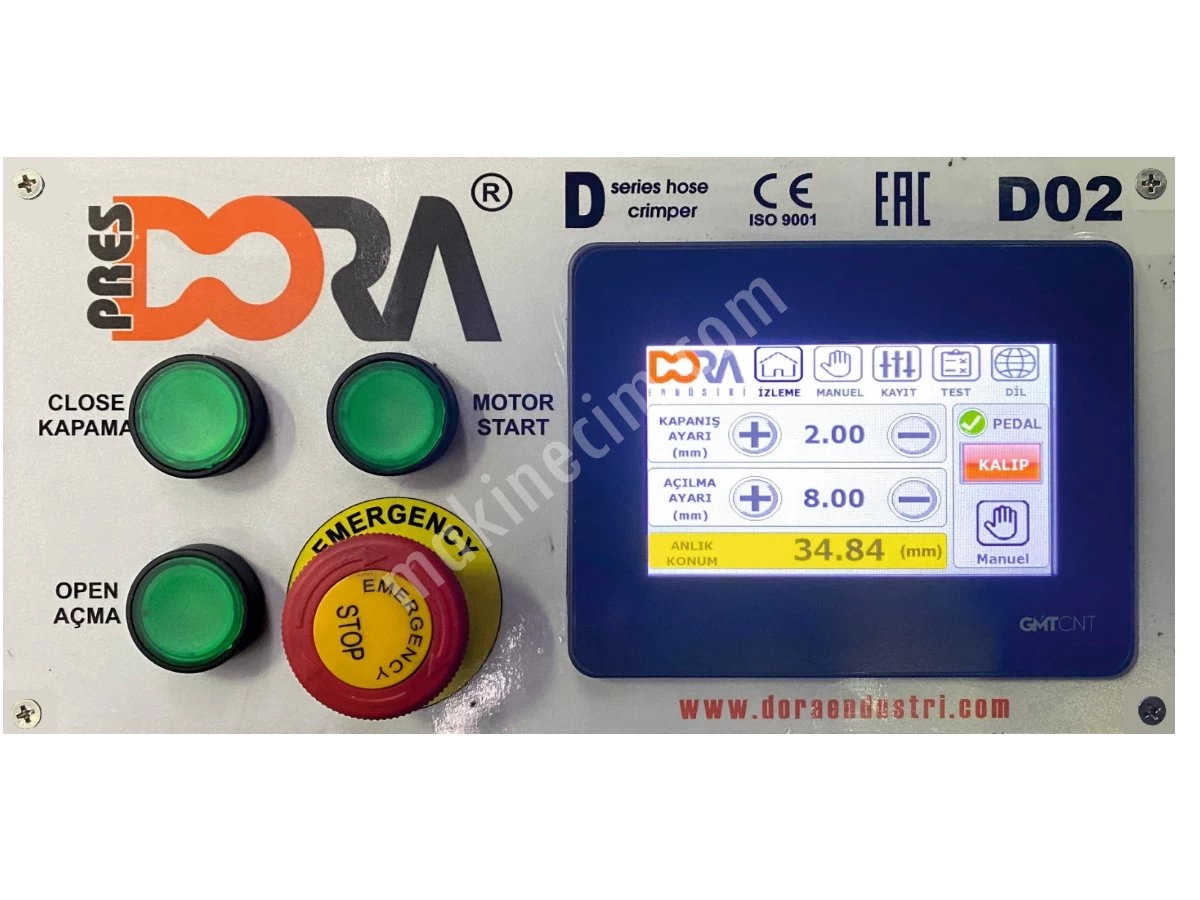

Control Panel Power : 24 V

Width * Length * Height (With Cabinet) :450*700*1500 mm

Machine Weight (With Cabinet) : 310 kg

Warranty : 1 Year
