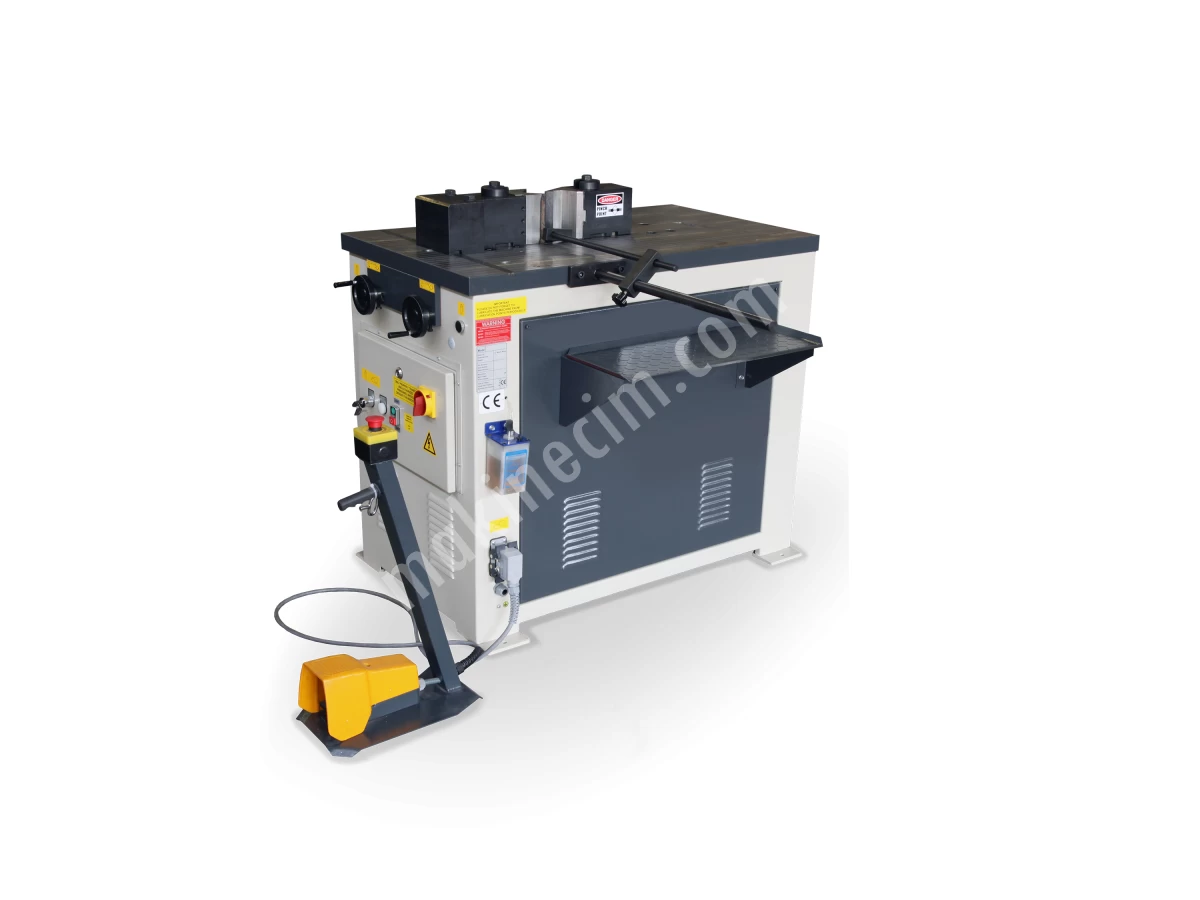

Hp-22 Hydraulic Horizontal Press Horizontal Presses
| Price : | Ask For Price |
| Ad Code : | M-414628 |
| Ad Type : | For Sale - New |
| Views : | 393 |
| Date Updated : | 01 May 2024 |
| Production Type : | Brand |
| Brand : | Çağlayan Makas |
| Model : | Hp-22 |
| Production Year : | 2021 |
ÇAĞLAYAN MAKAS
Türkiye - Bursa - Nilüfer
Üçevler Mah . Küçük Sanayi Sitesi 62.blok 37.sokak No:33-35
Hp-22 Hydraulic Horizontal Press Horizontal Presses Ad Description
MODEL | Table dimensions mm | Table height mm | Operating pressure ton | Maximum working pressure bar | Motor power kw | Moving Head Forward-Backward Speed mm/min. | Lengths of movable and fixed shafts lt. | Moving Head Course mm | Volume db. | Hydraulic tank capacity lt. | Machine dimensions LxWxH mm | Weight kg | Moving Head Study Course mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP-22 | 625x1100 | 920 | 22 | 220 | 1.5 | 1750/2000 | 120 | 200 | 70 | 45 | 1100x630x925 | 635 | -- |
FEATURES AND STANDARD EQUIPMENT
- Very easy to use with movable mobile control panel
- It complies with EU safety norms and has the CE mark
- Convenient work table made of special ductile iron (HP 40) and ST 52 platina sheet (HP 22) suitable for all bending loads;
- Easily adjustable stroke distance from the front
- Tool carrier with hydraulically moving forged steel, hardened, ground, dust-proof slide
- Movable jaw slides rigidly on the table
- Micrometric carrier with hydraulic valve control adjusted by steering wheel from the front of the machine
- Continuously adjustable stroke adjustment under high pressure to make the desired bend without practice, testing or sampling;
- Hydraulic block, which provides the possibility of adjusting the pressure, produced as a single block;
- The ability to adjust the approach speed thanks to the flow control valve;
- Easy and quick-change hardened and ground special locking system shafts made of special alloy steel
- Side shelves for tool storage
