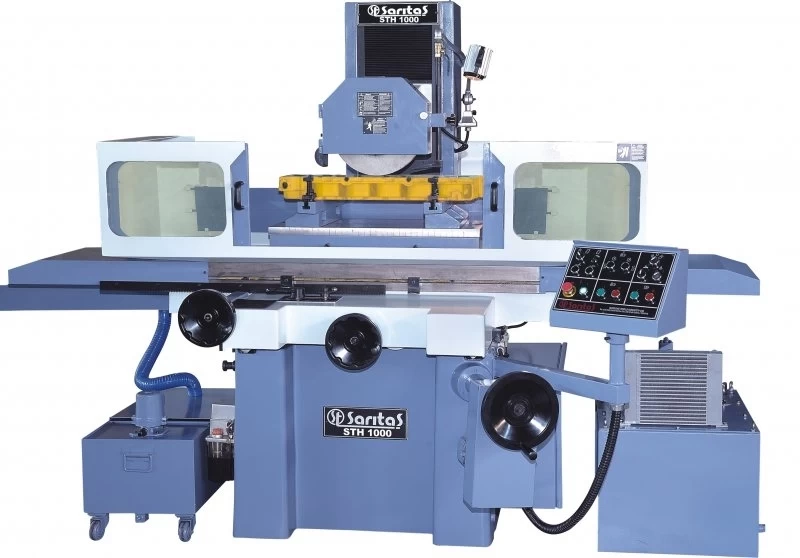

Horizontal Spindle Surface Grinding Machine Sth 1000

Türkiye - Konya - SELÇUKLU

2. ORGANİZE SANAYİ LALEHAN CAD. NO.5 SELÇUKLU/KONYA

TECHNICAL SPECIFICATIONS	STH 1000
Table size	406x813 mm
Longitudinal travel	1000 mm
Cross travel	450 mm
Maximum distance from spindle center to chuck table	600 mm
Chuck size	400x800 mm
Speed of longitudinal movement	7~23 m/min
Table cross automatic movement	0,1 ~ 8 mm
Table cross rapid movement	990 mm/min
Table cross manuel movement	0,02 mm/div.
Wheelhead vertical rapid movement	460 mm/min.
Wheelhead vertical manuel movement	0,005 mm/div.
Grinding wheel speed	1450 r.p.m.
Grinding wheel size	350x40x127mm
Spindle motor power	5,5 kw
Hydraulic motor power	2,2 kw
Cooling pump motor power	0,09 kw
Elevating motor power	0,25 kw
Cross feed motor power	0,04 kw
Loading capacity ( include chuck)	500 kg
Total rated power	8,5 kw

STANDARD EQUIPMENTS	QUANTITY
STD 265 Electromagnetic table (400x800 mm)	1
STD 266 Grinding wheel (350x40x127 mm)	1
STD 267 Grinding wheel flange	1
STD 268 Static balancing stand for grinding wheel	1
STD 269 Grinding wheel balancing shaft	1
STD 270 Grinding wheel dresser (with diamond)	1
STD 271 Grinding flange extractor	1
STD 272 Parallel support 100x500 mm (for cylinder head)	2
STD 273 Balancing nuts and rubbers	10
STD 274 Spot light	-
STD 275 Full splash guard	-
STD 276 Hydraulic system	-
STD 277 Coolant system	-
STD 278 Service tool kit	-
STD 279 Operating manuel	-
