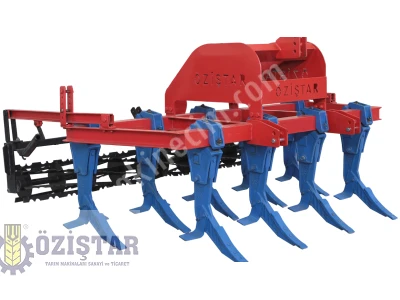

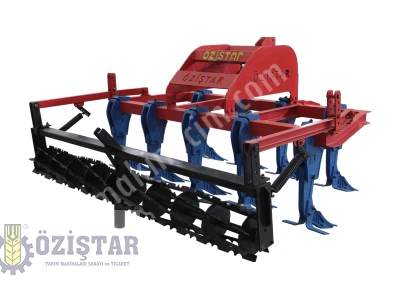

Heavy Duty Cultivator (Chisel)

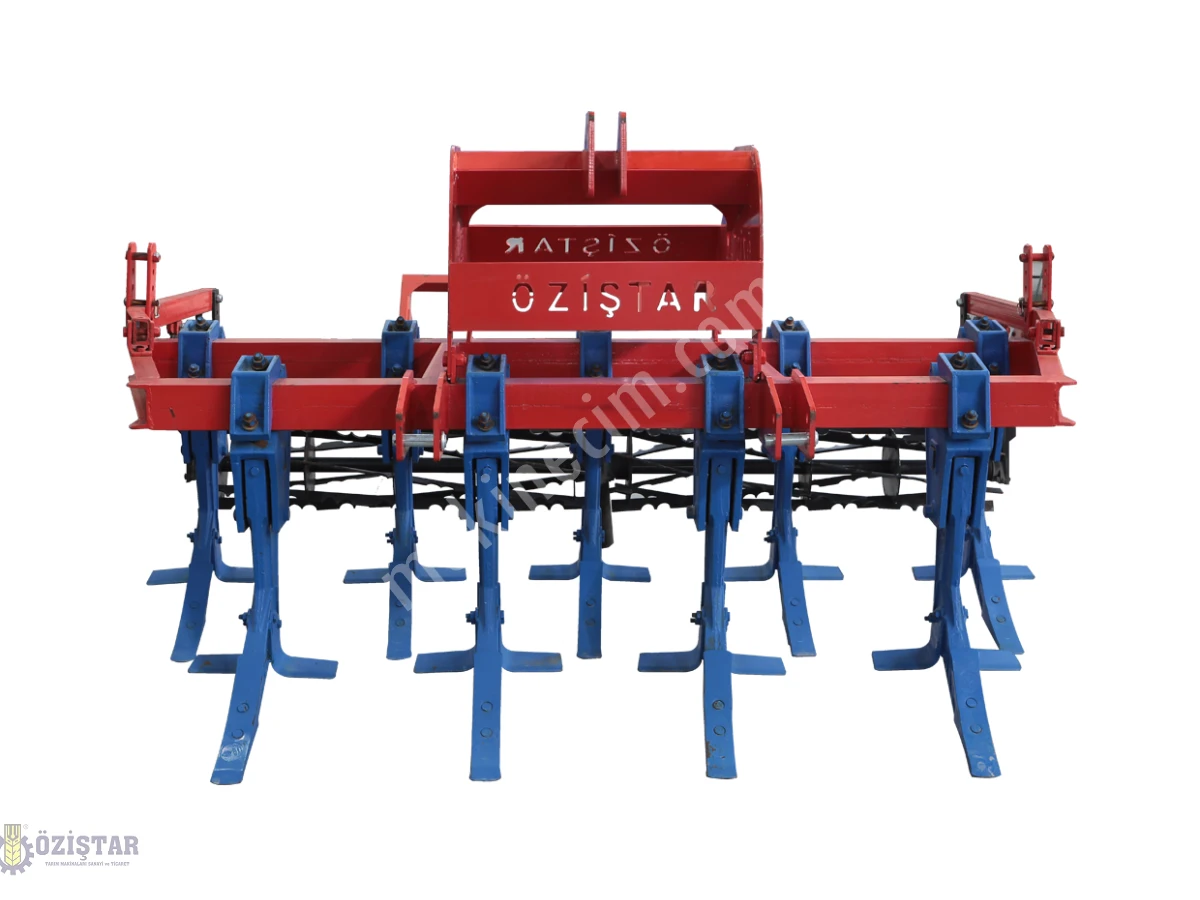

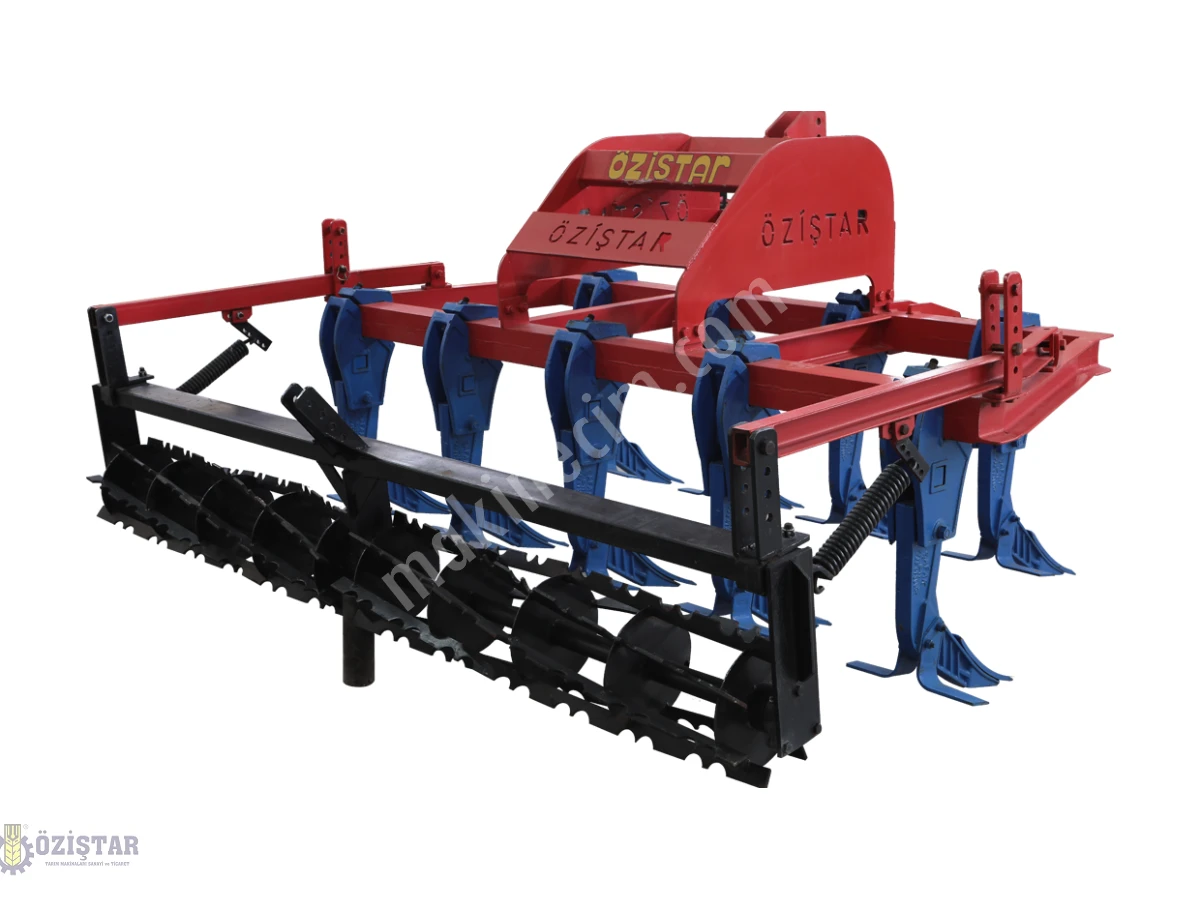

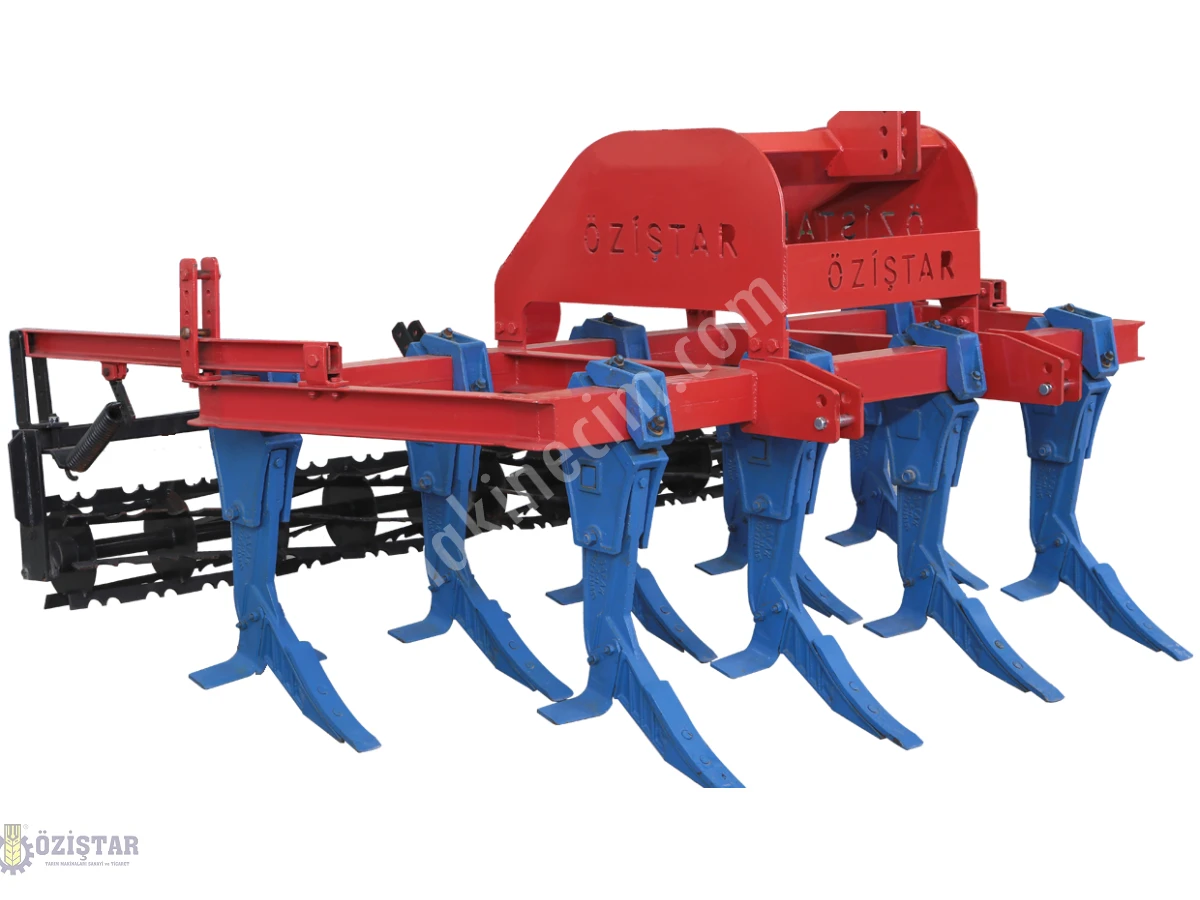

On the chisel, there is a three-point hitch system, machine carrier frame, carrying arms connected to the three-point system, legs, tip irons, and leg-frame connection clamps. The legs are clamped to the frame and can slide left or right on the machine frame or be removed from the machine as desired. Additionally, the leg connection includes a pin shear safety device that breaks when the leg encounters any obstacle, causing the leg to tilt backward. This prevents damage to the machine frame, legs, and tractor.

On the chisel, there is a three-point hitch system, machine carrier frame, carrying arms connected to the three-point system, legs, tip irons, and leg-frame connection clamps. The legs are clamped to the frame and can slide left or right on the machine frame or be removed from the machine as desired. Additionally, the leg connection includes a pin shear safety device that breaks when the leg encounters any obstacle, causing the leg to tilt backward. This prevents damage to the machine frame, legs, and tractor.

Precautions During Transport and Shipment

When loading the machine onto transport vehicles, it should be protected against friction and hard impacts. Necessary fastening and securing materials must be used to protect the machines from shocks and friction during transportation.

Assembly and Preparation for Use

Machine Assembly

When attaching the machine with a three-point hydraulic system to the tractor, the tractor is brought close to the machine. First, the left lower connecting arm, then the right lower connecting arm, and finally the upper connecting arm are attached to the machine. The machine connected to the tractor is centered relative to the tractor axis using the tractor side stabilizer arms.
