Geosynthetic Clay Liner (Gcl) Non Woven Production Machine

What is Geosynthetic Clay Layer (GCL)?

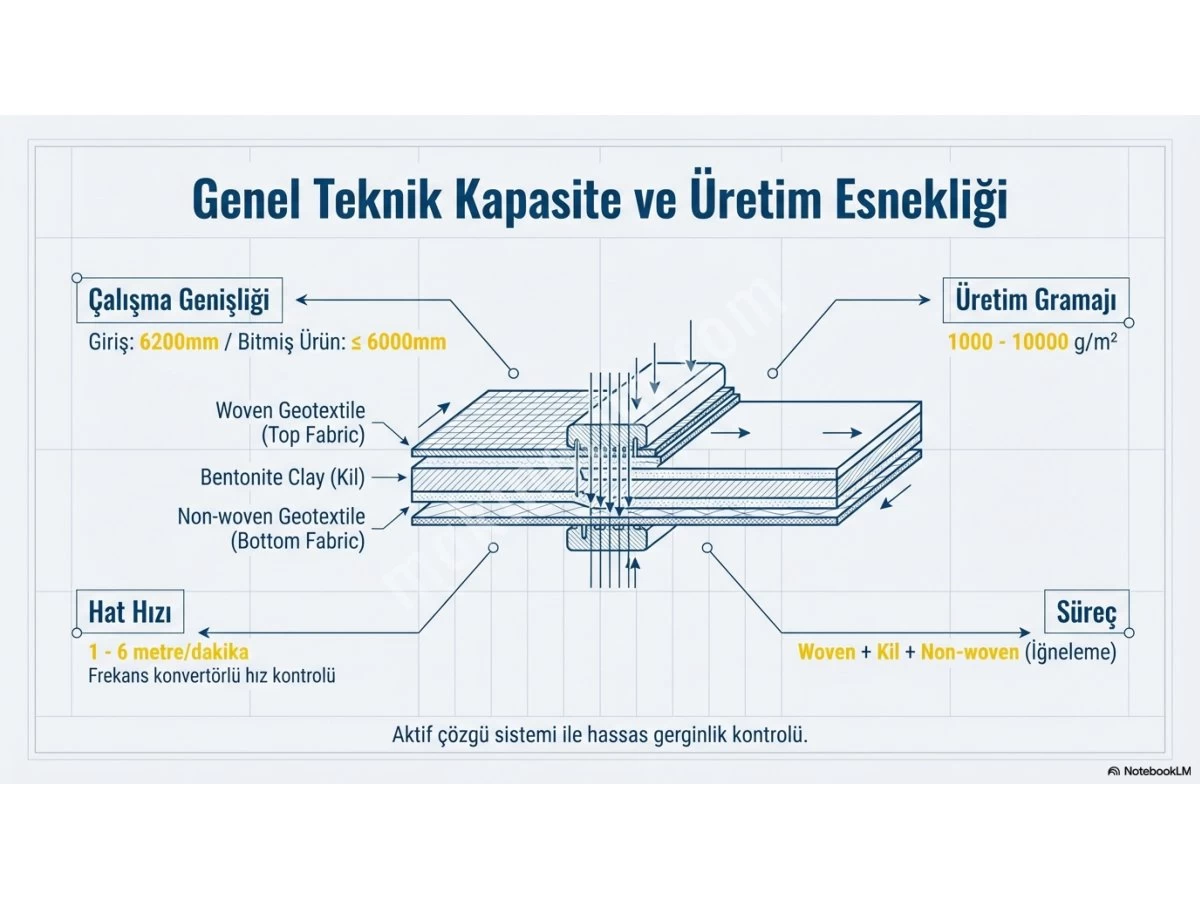

GCL is a high-performance insulation material where a sodium bentonite layer is encased between two geotextile layers (woven/non-woven) using a needle-punching method. This mechanical bonding prevents the bentonite from sliding, creating a homogeneous barrier.

Key Features and Advantages
High Swelling Capacity: Natural sodium bentonite swells up to 12 times its own weight, filling voids and preventing water penetration.

Continuous Cycle: Unaffected by wetting and drying cycles; returns to its original state and maintains its function when water is removed.

Flexibility and Strength: Thanks to the needle-punching method, it has high puncture resistance and low permeability.

Economical and Practical: It replaces 60-100 cm thick compacted clay, saving on transportation, labor, and application time.

Technical Product Range and Application Areas
GCL products, which can be produced in different variations according to need, play a critical role, especially in environmental protection and water management projects.

FeaturesDetailsWeight Range3000 gr/m² - 6000 gr/m²Structure TypeWoven/Non-woven or Double-sided Non-woven GeotextileExtra LayerMembrane Laminated production option for extra sealing

Main Application Areas
Waste Management: Solid waste (landfill) and mining waste storage sites.

Water Structures: Ponds, irrigation canals and dams.

Insulation: Waterproofing of tunnels and building foundations.

Why Choose GCL?
The risk of cracking and homogeneity problems seen in traditional compacted clays are eliminated with the use of GCL. GCL, which is produced in a controlled environment in the factory, minimizes the margin of error in the field and offers a much stronger barrier with a much thinner layer (average 5-10 mm).
