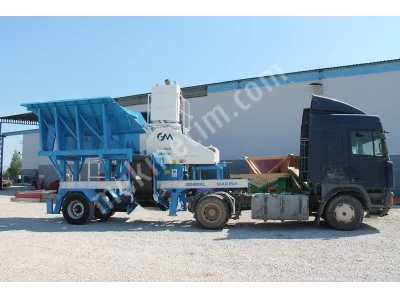

General Machinery Mobile Crusher Jaw Crusher Gnr-M60

All equipment of GNRK-M60 Mobile Primary Crusher is gathered on a single platform and can be transported with a single TIR. It includes a powerful Mobile Jaw Crusher. It sets quickly and can break basalt, limestone, stream material.

GNRK-M60 is one of our most preferred machines in the World and Turkish Markets.

It is one of the most suitable crushers for crushing hard and hard-to-break materials such as stone (Basalt, Granite) and mines (Iron Ore, Chrome Mine, Quartz).

It is the most ideal crusher unit for breaking abrasive materials.

* Vibrating Feeder and Hopper

Feeder system is driven by 2 vibromotors or double eccentric. In this way, trouble-free operation and minimum maintenance are offered.

The feeder hopper is suitable for feeding with Excavator and Loader, and it can be fed by Truck with additional hoppers in permanent work.

All wear points in the Feeder and Hopper are protected by replaceable wear shields.

There is a sieving system on the Feeder Tray. Thanks to the By-Pass conveyor, this sieved earthy material can be poured into the stock area.

*Feeder volume 20 m3

* Jaw Crusher ( Crusher )

Size : 600x380 mm Primary type

Engine power: 30 KW

It has an adjustment mechanism and the Jaw Crusher can be adjusted easily.

* Main Conveyor Belt System is 600X 3000mm.



Capacity: Breakable Material and Feed, It is variable according to the final product dimensions and has a capacity of 80-100 tons.

Feeders are Vibromotor or double eccentric. They are Emtaş or Italvibras, Oli, Inter Brands.

Main Belt Drive Drum is Rubber Covered and Gear Type.

Electric Motors are Gamak, Emtaş, Inter branded.

Redactors are special redactors with 3 transmissions.

Bearings: SKF,KG,NACHI or Equivalent Bearings

The flat product used is Eregli Iron and Steel Product and is A1 Quality.



* By-pass system (optional)

* Magnetic magnet (optional)

* Generator System (Optional)

* Frequency Control System is used instead of Soft starter.

** All of our products are CE certified by the European Union.

** Total Weight: 15,000 Kg

** Transport Dimensions: Width 3000 mm x Length 11.000mm x Height 4500 mm
