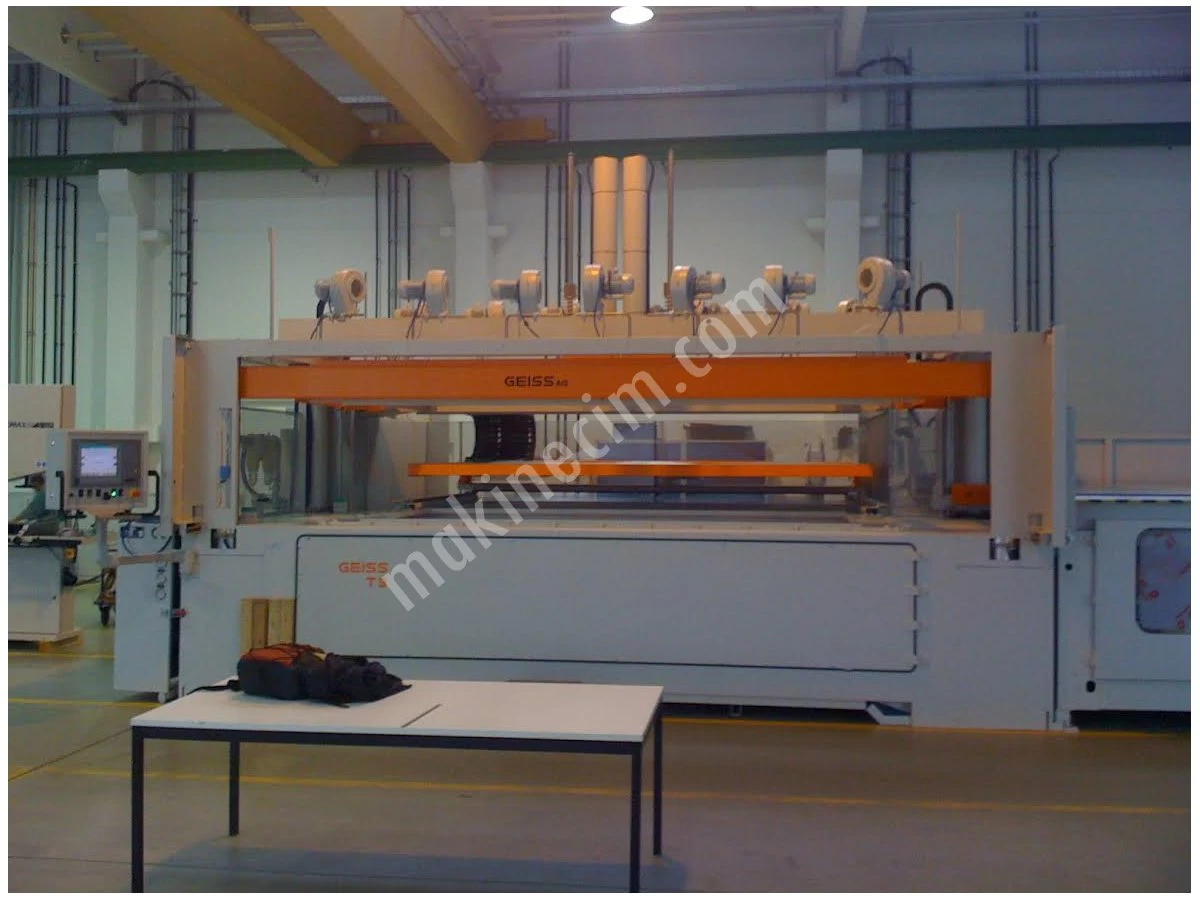

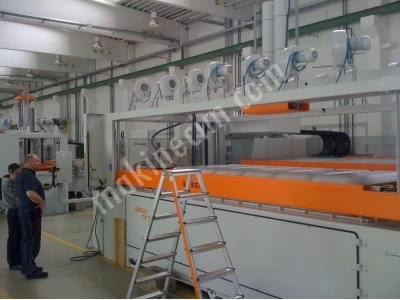

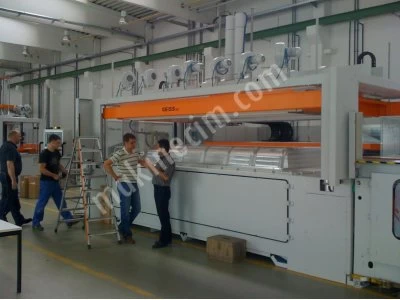

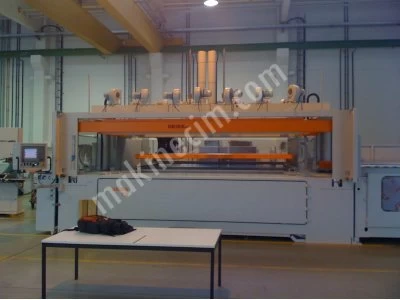

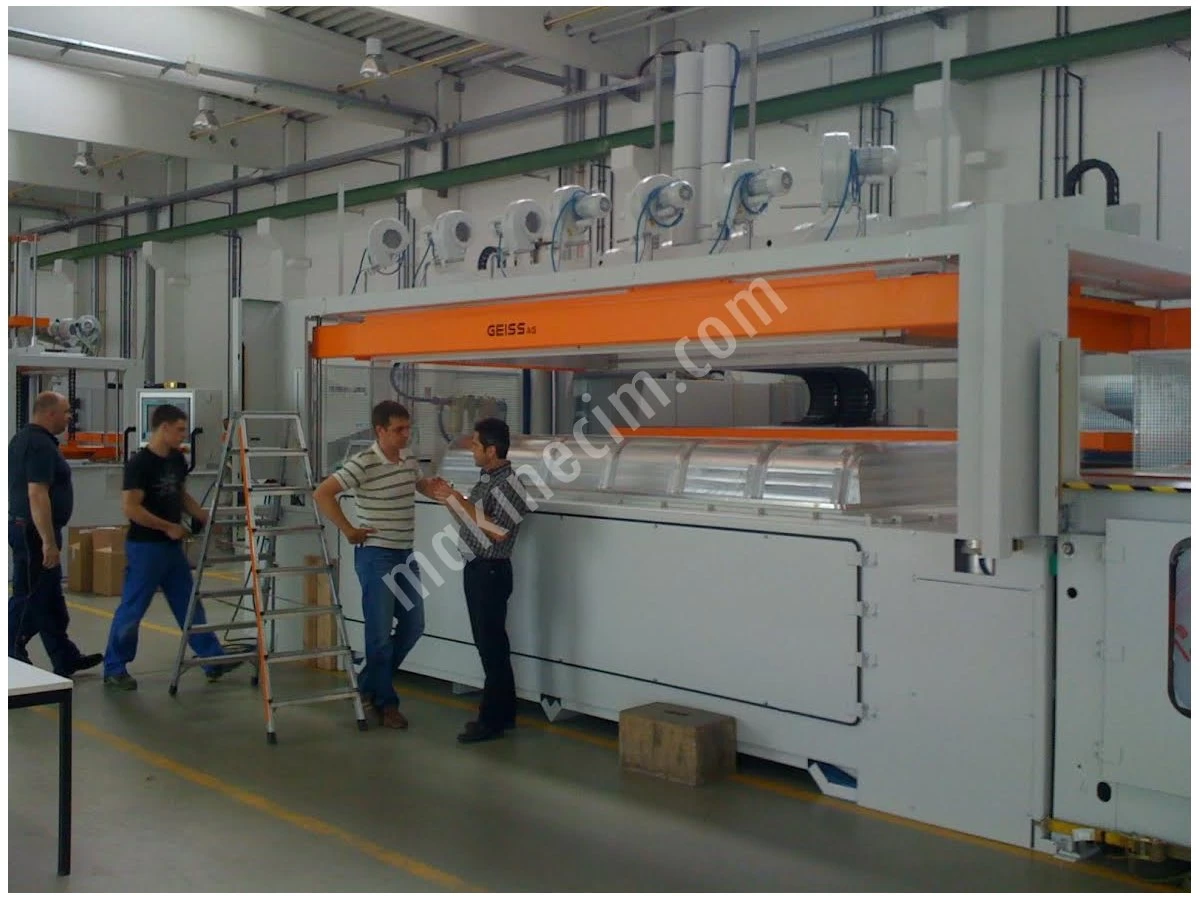

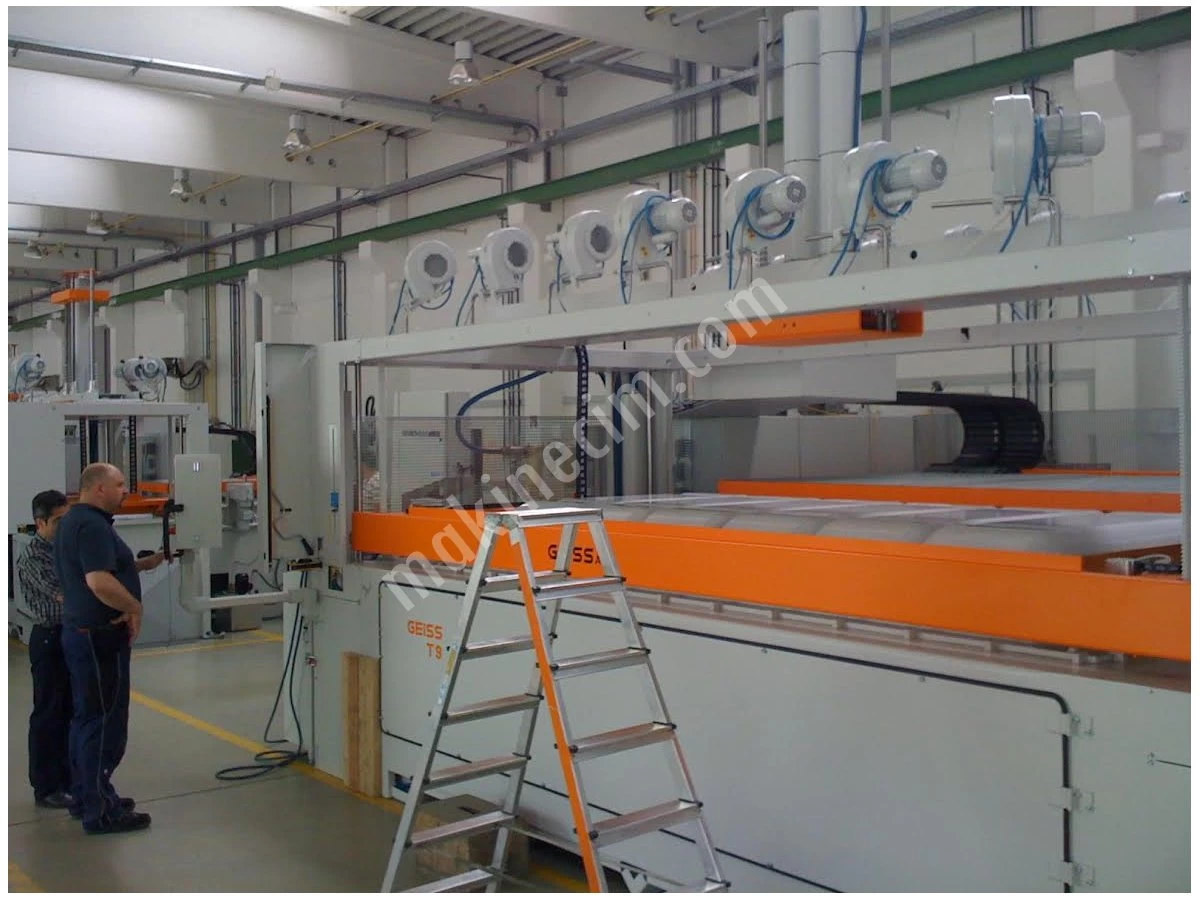

Geıss T9 Vacuum Thermoforming Machine — 4000×2000 Mm

General Information
The GEISS T9 is a large-format, fully automatic vacuum thermoforming machine designed for sheet applications. Built in 2010, it is in working condition and available for on-site inspection in Turkey. With automatic sheet loading/unloading, dual (top & bottom) fast-response heating, and a Siemens-based control architecture, it delivers repeatable quality and short cycle times.

Key Features

• Max sheet size: 4000 × 2000 mm

• Usable forming area: approx. 3960 × 1960 mm (about 20 mm clamping rim)

• Max mold lower heating)

• Heating: Independent upper and lower heater fields with fast-response quartz/halogen elements; individual element power adjustment and heat-field visualization

• Control: Siemens SIMATIC S7 PLC with PC-based HMI; all axis/process parameters can be stored as recipes

• Automation: Fully automatic cycle; automatic sheet loading and unloading; mold pre-venting; automatic switching from tank to pump

• Vacuum system: ~1,811 L vacuum tank with four ~100 m³/h vacuum pumps; oil level and filter monitoring via HMI

• Plug-assist (upper plug): Synchronized pneumatic system, approx. 31,800 N

• Clamping frame & table forces: Each approx. 61,075 N with infinitely variable adjustment on two axes

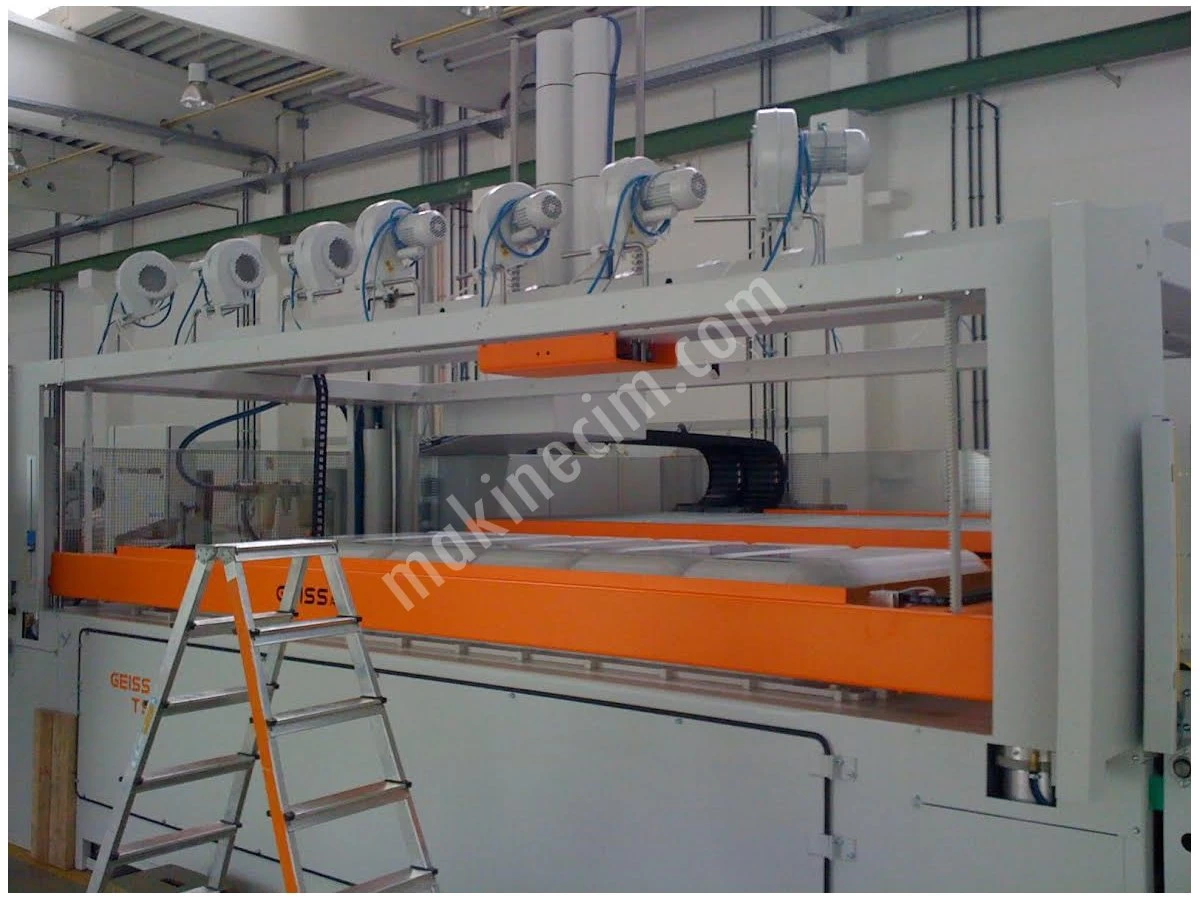

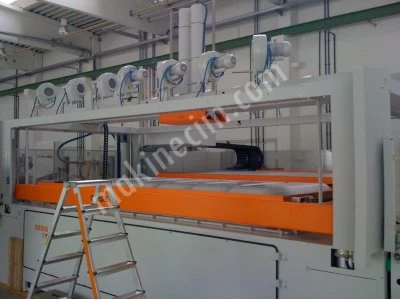

• Cooling: Hybrid air and water-mist cooling with high-flow fans for mold and part cooling

• Safety: Light curtain at operator side, interlocked access doors, industrial safety architecture

Included Equipment / Functions

• Upper and lower heaters mounted on independent linear guides; motorized upper heater carriage for fast travel

• Stepless speed control and synchronization on all axes; fine approach and dwell steps

• Quick-change fastening for faster mold changeovers

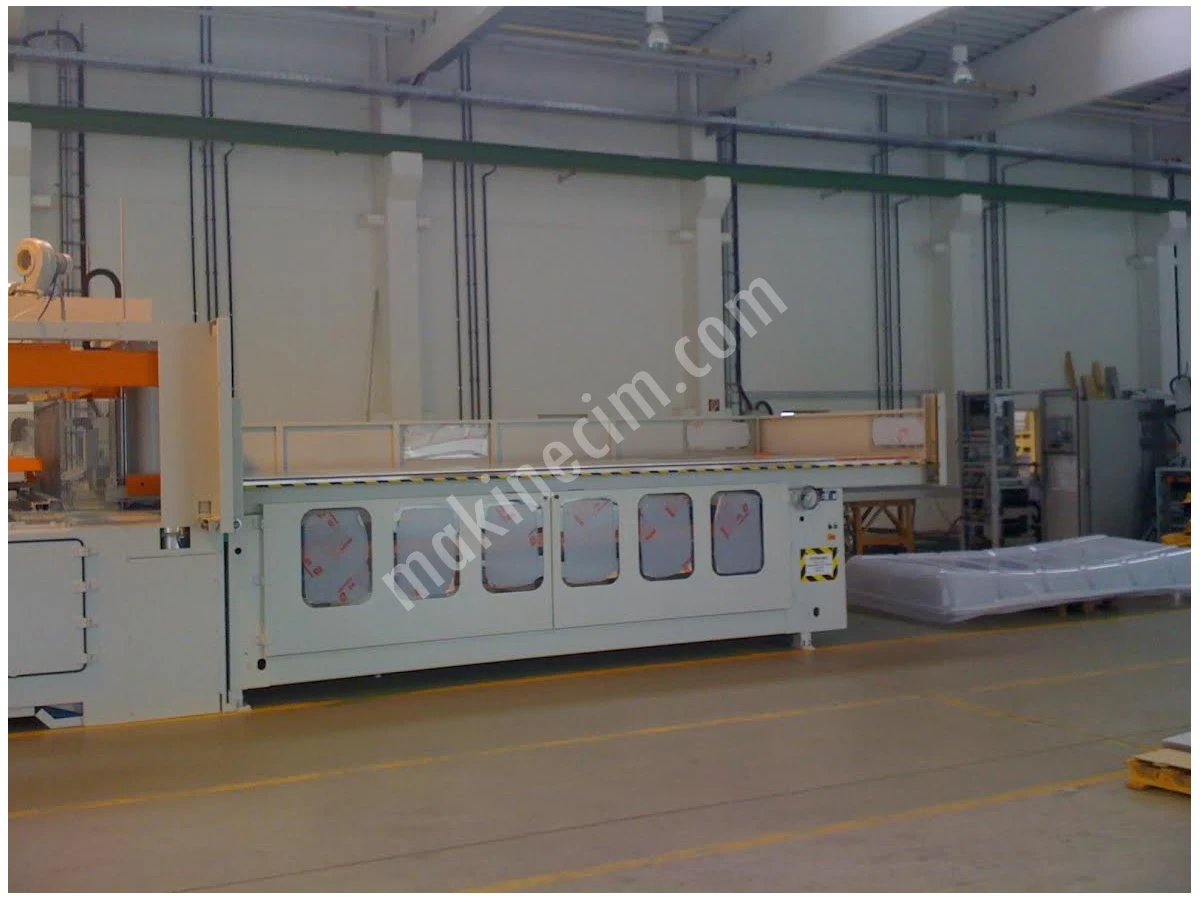

• Automatic sheet loader: automatic pick-up at max format, alignment (front–back, left–right), pneumatic sheet separator, and automatic unload to cart

• Recipe-based control of multi-zone temperature, time, vacuum, and pressure profiles via HMI

Installed Options (on this machine)

• Pyrometer in the upper heater

• Additional vacuum pump (capacity beyond standard set)

• Mold temperature control: Integrated tempering unit (up to ~95 °C), ~6 kW heating, automatic water-flow monitoring, 7-day timer

• Sheet sag control: Photocell for supporting air and photoelectric monitoring to limit pre-blow height

Typical Applications
Automotive interior trims and covers, appliance liners and panels, sanitary parts, large technical trays and housings, signage and display panels, furniture/decorative surfaces—suitable for both thick and thin sheet, especially in large formats.

Machine Dimensions (approx.)

• Base machine with upper plug: 6330 × 5000 × 4215 mm

• Automatic sheet loader: 6200 × 3000 × 1800 mm

Condition & Delivery

• In working order; test run can be arranged for serious buyers

• Available for on-site inspection in Turkey

• Loading assistance can be provided; packing and freight at buyer’s cost

Quick Tech Snapshot

• Format: 4000 × 2000 mm; usable area ~3960 × 1960 mm

• Mold3348" data-end="3409">

  Forces: table & clamping ~61 kN each; upper plug ~31.8 kN

• Vacuum: ~1,811 L tank + 4 × ~100 m³/h pumps

• Controls: Siemens SIMATIC S7 with recipe management

• Cycle: Fully automatic with auto loading/unloading

• Cooling: Air + water mist, high-flow fans

• Safety: Light curtain and interlocked doors

Notes
Engineered for high throughput and large-format precision. Photos, videos, serial number, and additional technical details can be provided on request. Inspection and shipping arrangements can be organized promptly.
