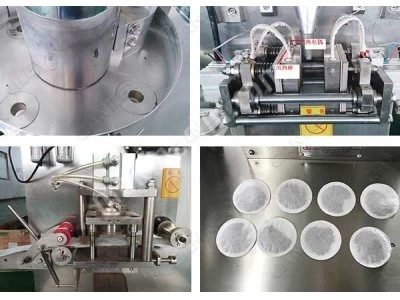

Fully Automatic Round Tea Bag Packing Machine

made of 304 stainless steel, PLC microcomputer controller, save labor

This round tea bag packing machine is suitable for packaging small granular materials in tea, coffee, food, medicine and other products.

Round Tea Bag Packing Machine Features:

• This machine has the functions of automatically completing bag making, measuring, filling, sealing, cutting, counting, etc.
• Adopt advanced PLC microcomputer controller, drive stepping motor to control bag length positioning.
• Stable performance, accurate detection, and minimal error caused by intelligent control.
• All accessible material parts are made of SUS304 stainless steel to ensure the sanitation and reliability of the product.
• The round tea bag packing machine can add accessories to complete functions such as date printing, vibration feeding, and easy tearing, etc.

• Packaging Environment:

  The round tea bag packing machine requires that the operating environment be free of a lot of dust, temperature 5℃-40℃, no freezing; relative humidity not more than 60%, no condensation.

  Heat-sealing filter cotton paper requires a smooth surface, outer diameter ≤450 mm.

• Model	CK-66
  Packing speed	50-65bag/min
  Filling range	2-7g
  Voltage	220V/50HZ/1.6KW
  Air source	0.4-0.7mpa
  Air consumption	>0.1m3/min
  Weight	400KG
  Size	760*860*1730mm
