FOR SALE BRAND NEW MOBILE CRUSHER WITH 950 TURBO from

Mobile: 0555842 86 86

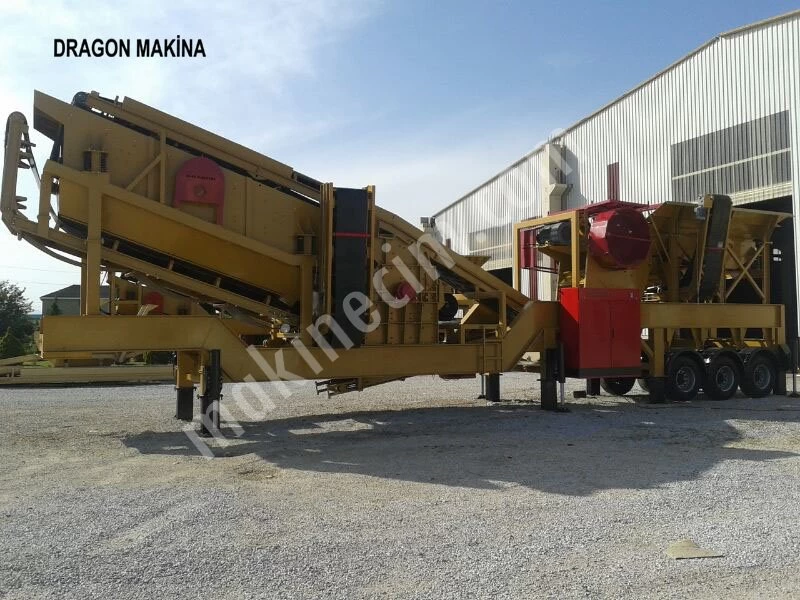

Turbo 950 Mobile Jaw Crusher in Hard Materials

New System Mobile Crusher Plant Capacity 160 ? ? 240 tons / hour

950 Turbo ? ? Mobile Crushing and screening plant a new generation of closed-circuit

Dragon 950 closed-circuit crushing system All systems were collected on a single platform , with 1 GB portable.

Designed to be in operation within 15 minutes of edilmişd .

Current world and Turkey, the construction of our most preferred in the market .

Hard and difficult to break stone (basalt , granite ) and minerals ( Iron Ore, Chrome Hardware , Quartz ) as the most suitable hammer to shatter one of materiel .

Abrasive Materials in breaking the ideal crusher unit.

?

* Vibrating Feeder and hopper

2 vibromotorl feeder system is driven edilmekd . In this way, works smoothly and is sunulmakd minimum maintenance .

Excavators and Loaders feed hopper feeder is suitable for permanent Kamyonla feeding studies done with extra compartment .

In the hopper feeder and all wear points are korunmakd with interchangeable wear armor .

Tray feeders are in the playoff system . By-pass conveyor eliminated thanks to the stockyard earth materials spill.

?

* Jaw Crusher ( Crusher)

Size : 900x650 mm Primary type

Engine power: 75-90 kW

Jaw Crusher mechanism and easily adjustable settings .

* Main Conveyor Belt System 1000 mm

Crawler is a wheel conveyors .

?

* Vibrating Screen type High Capacity System

Size : 1600x5000mm

Engine Power 18.5 KW

Floors: 3 Floor

?

* Secondary Impact Crusher ( Crusher for Hard Materials )

Special types of 1200x1200mm Secondary Impact Crusher System

Engine: 132-160 kW

?

* Screen conveyor 1000 mm six- Stock

Folding type

?

* Stock Conveyor 600 mm Folding type 2

?

* Return Conveyor Collection 1 600 mm

?

* Return Conveyor 2 750 mm

?

* Mobile Chassis Chassis System 3 -Axis Specialty constriction

* Hydraulic System

There are six hydraulic ram mechanism in the system , after six hard both kilitlendikd These feet are strengthened .

2 for opening and closing the lift piston hammer has also these special control system is controlled by the piston 8 .

Hydraulic Power System 125 Litres

Magnetic Conveyor Belt 750 mm (optional )

* Board Material , Telemecanique , Schneider Electric is branded .

* Soft Starter Panel Systems Abba in the system and special control system is available.

Uzakd the Control ( Radio Control System ) is yapılabilmekd control of all functions .

Generator System is optional Cummins, Perkins, Doosan, Deutz 6 cylinder diesel engine brands and Marelli alternator .

Capacity: Fragile Materials and Supply, which vary according to the size of the final product is 160 ? ? Capacity is 240 tons .

Tozsuzlandır System , Conveyor high-pressure water to suppress dust in the nozzle of the spray powder is blocked.

Feeders would Vibromotorl Emtaş or Italvibras , Olin is Brand .

Drive drum is rubber -coated and Gear Type .

Electric Motors GAMAK , Emtaş , is International Branded .

Indirect special gear reducers 3 respectively.

Rubber Conveyor Belts are Brand Derby or Eksaş .

Bearings: SKF bearings or equivalent

Eregli Iron and Steel flat products used in the product is not A1 quality .

* By-pass system (optional )

* Magnetic magnet (optional)

* Generator System (Optional)

* Truck addition which is used to make the feed hopper (Optional)

* Tozsuzlandır System ( Optional)

* Frequency Control System soft starter is used instead.

?

This system of the crusher operation cycle allows adjustment , also the generator in working with through this device Demerajsız work , Cheap generator selection and low fuel consumption sağlanabilmektedir.takrib fuel consumption 30 - 35 Lt / hour ( optional ) ? ** All our products are European Union is CE certified .

Transport ** Dimensions: Width x Height 3000 mm x 4500 mm Length 15000 mm
