Flywheel Gear Heatıng and Tıghtenıng Wıth Inductıon Heatıng

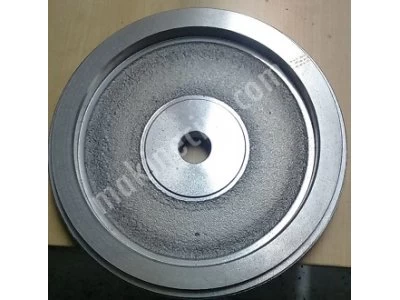

FLYWHEEL → THE FLYWHEEL GEAR WILL BE TIGHTENED.

FOR TIGHTENING METALS, HEATING METALS TEMPERATURE: 200-300 °C

MIN. and MAX. FLYWHEEL GEAR DIMENSIONS:

OUTER DIAMETER: Ø327………. Ø500MM

INNER DIAMETER: Ø303………. Ø470MM

THICKNESS: 12MM……….15MM

IMPLEMENTATION AND EXAMPLE APPLICATIONS:

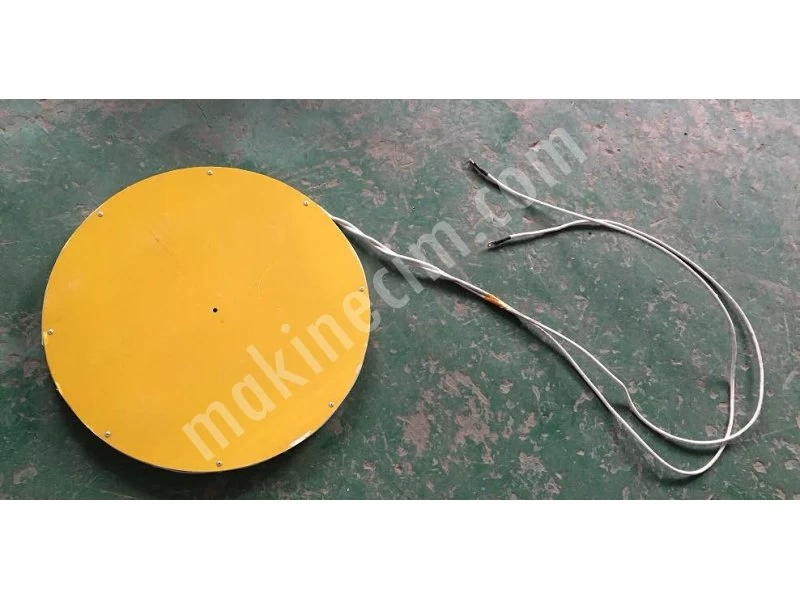

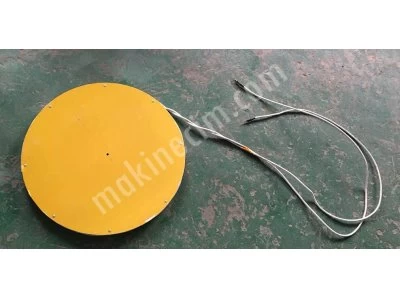

1-FLY FLYWHEEL TO BE EXPANDED BY HEATING IS INSTALLED INTO THE GEARED INDUCTION HEATING COIL or ON THE INDUCTOR ACCORDING TO THE WORK TO BE DONE AND THE INDUCTOR MODEL.

2- THE TEMPERATURE WHICH IS REQUESTED TO REACH HOMOGENEOUS FROM ALL SIDES OF THE FLYWHEEL GEAR FROM THE FRONT PANEL OF THE AIR-COOLED INDUCTION MACHINE IS SET ON THE DISPLAY SCREEN.

3- ENERGY IS SUPPLIED TO THE INDUCTION HEATING COIL THROUGH THE INDUCTION MACHINE, AND THE FLYWHEEL GEAR IS HEATED AT THE SAME TIME FROM ALL SIDES AND EXPANSION.

4-THERMOCOUPLE IN CONTACT WITH FLYWHEEL GEAR SURFACE REQUESTED MAX. THE AIR COOLED INDUCTION MACHINE STOPS HEATING WHEN DETECTING THE TEMPERATURE.

5-THE EXPANSION FLYWHEEL THREAD IS EASY TO TIGHTEN BY INSERTING A FLYWHEEL INSIDE DIAMETER.

6- MAX. ACCORDING TO THE DIAMETER, LENGTH AND WALL THICKNESS. 10KW AIR-COOLED INDUCTION MACHINE WITH HOMOGENEOUS HEATING TO 200 -300 °C TEMPERATURE AND WITH SPECIAL INDUCTOR MADE ACCORDING TO FLYWHEEL GEAR OUTER DIAMETER, FLYWHEEL, FLYWHEEL GEAR TIGHTENING WITH FLYWHEEL 450 SECONDS= 7.5 MINUTES-ONE PIECE
