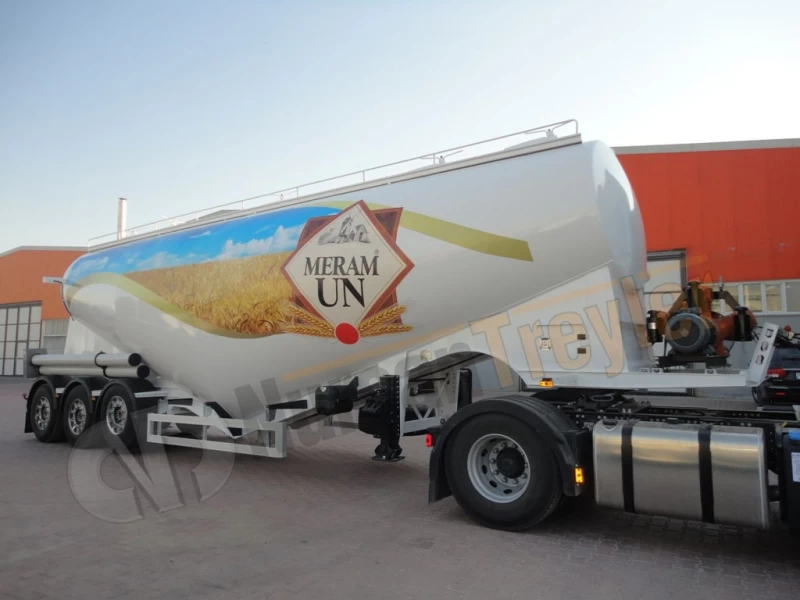

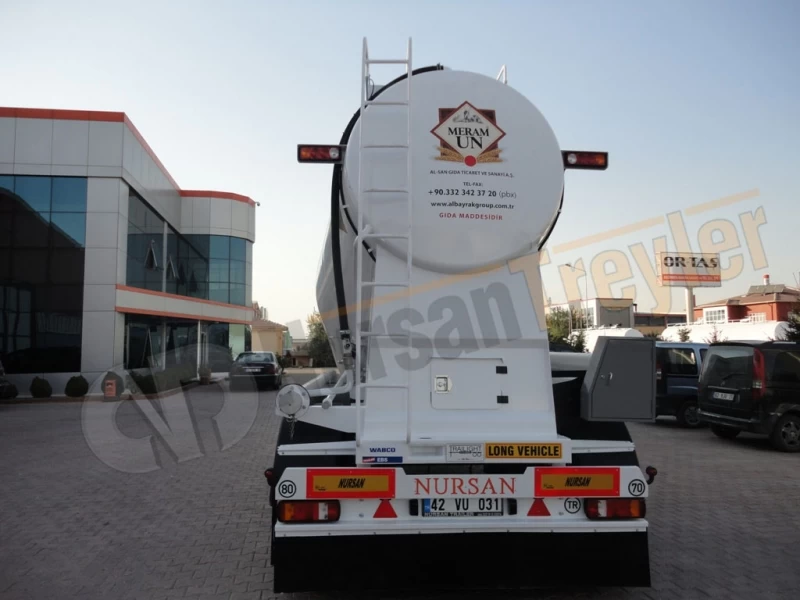

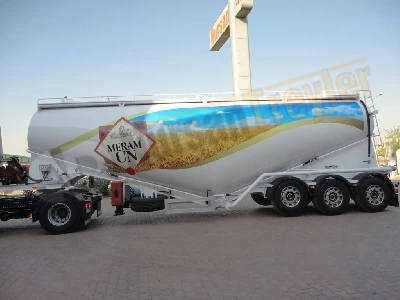

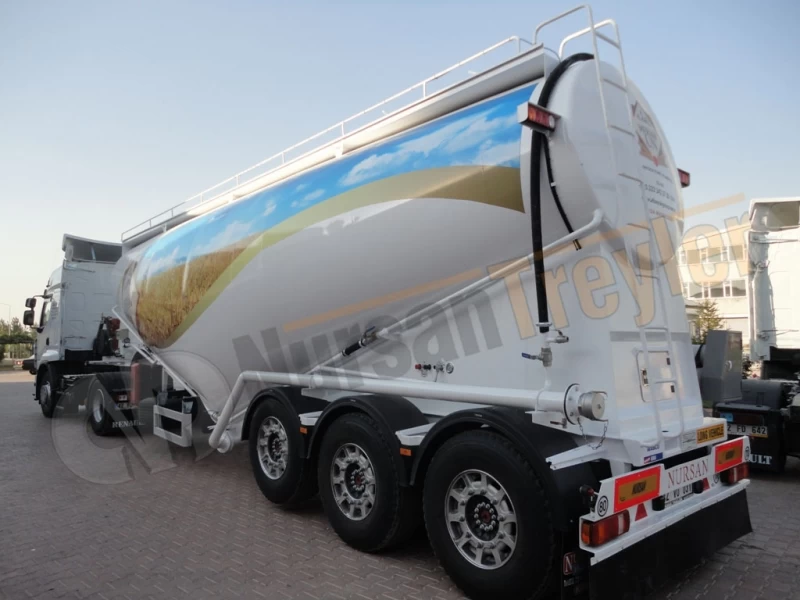

FLOUR BULKER

1- Boiler: Stainless steel, chrome nickel plate, V-type boiler from the bottom and 4 mm thick,Work pressure 2 bar, Test pressure is 2.6 bar. This cauldron 3 one-stop-proof test pressure420 mm diameter manhole covers, 1 leaf valve, 1 unit of air pressure gauge, 1 discharge accelerating global jet air valve, boiler left behind from 4 "exhaust system, and the drainage system, a 4-inch 6 feet tall food hose, 2 x 2.5 bar safety valve and the boiler is set to airchannels in the 110 mm diameter hose system is imported. Material shall comply with all stainless steel and food transportation. In addition, the tank on the platform, walking the pathof 1, 1 ladder on the left are available.

2-AIR COMPRESSOR:Compressor with mercury.Brand NURSAN.

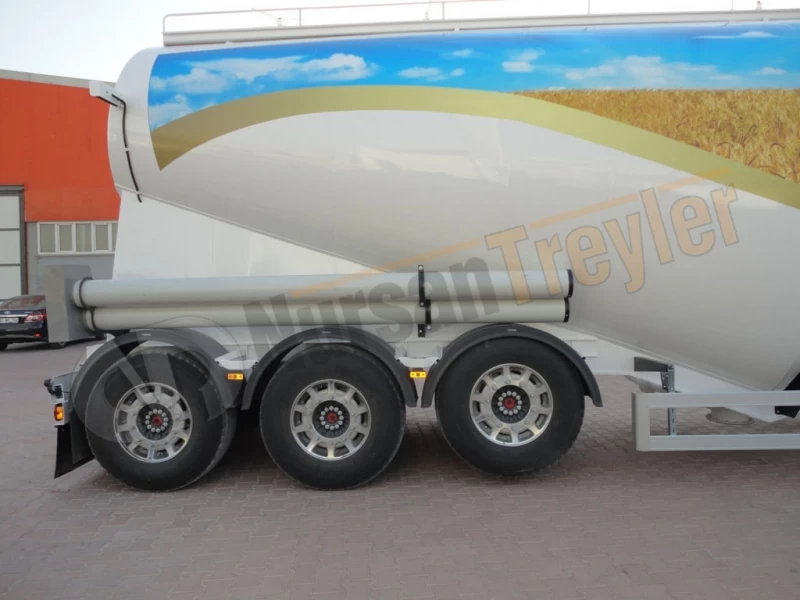

3-AXLE: GIGANT-BPW-NURSAN brand 3x12 ton loading capacity automatic brake adjustment lever, and is manufactured according to European standards. Brake Pads (420x200 mm) and the axle brakes are equipped with ABS system.

4-SUSPENSION SYSTEM: raising and lowering and highness adjusting system, parabolic z trusses and shock absorber elements are limiting overloading axle movement.

5 - FRONT AXLE: Single lifting and can be operated from driver's cabin.

6 - BRAKE SYSTEM: Designed according to European standards. WABCO products kullanılmaktadır.HALDEX automatic brake adjustment knobs, Brake Valve, Brake Actuator (30 cylinders), two replaceable and protected break sockets in front of the trailer there.

7 - MECHANICAL JACK: OMS brand two-speed mechanical foot carrying capacity of 24 tons each.

8 - Tyres: 385/65 R22, 5 sizes and 6 +1 Bridgestone or LASSA brand pieces.

9 - RIMS: 11.75 * 22.5 size, 6 is ALUMINUM, spare wheel JANTSA brands, including 1 for 6 +1 pieces.

10-Fenders: 6 each pilot has a half-fender.

11-King Pin: 2 "SAE / DIN standard high level of stress and rupture-resistant, forged steel (42 Cr Mo 4) are produced. Means of screw connections can be replaceable.

12-ELECTRIC SYSTEM: According to EU rules, there are 24 V electrical system. Trailer on the fog lamp and reversing lamp tail lamps are available which contain multi-paned.Plate illumination lamp of 2 and 4 with two side lamps and reflectors are palakaları speed.The front panel, 2 x electric socket (24N/24S) and 1 ABS sockets?

13-ACCESSORIES:

· 1 buffer

· Car front and back of the cupboard under the abdomen

· 1 water tank

· 1 single spare wheel carrier

· 1 plastic wheel chock and the connection

· 1 fire extinguisher cabinet



14-PAINT: All surfaces are cleaned under high pressure with water and liquid chemical Bonder. Grit blasting is a post-painted with epoxy primer and final coat of acrylic paint.Very mukavimlidir against chemical effectiveness. Optionally seçilebilir.Renk RAL color codes: Beyaz.Araç special furnace at high temperature is kept dry.

15-GUARANTEE:

· 1 year used spare parts (manufacturer's warranty)

· 1 year or 100,000 km (whichever comes first) warranty period Nursan Trailer
