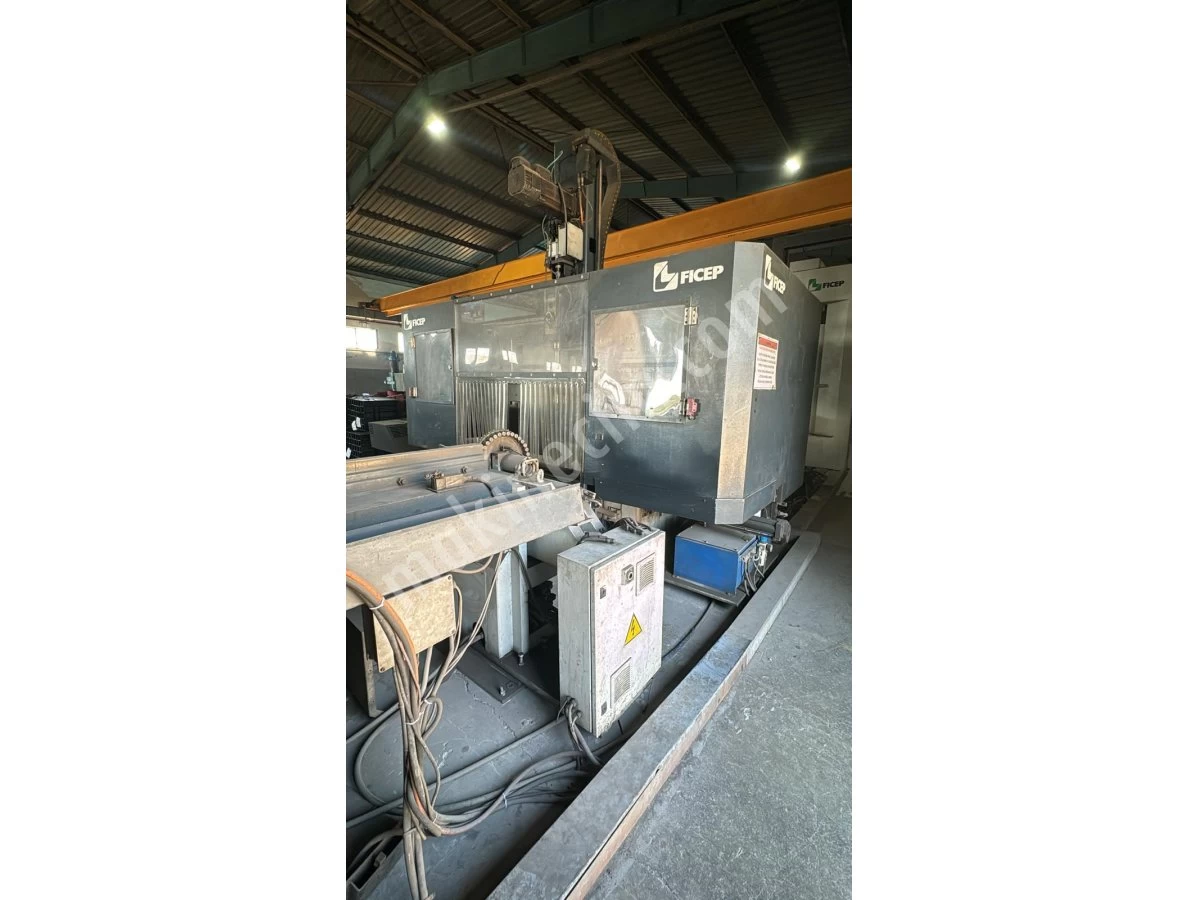

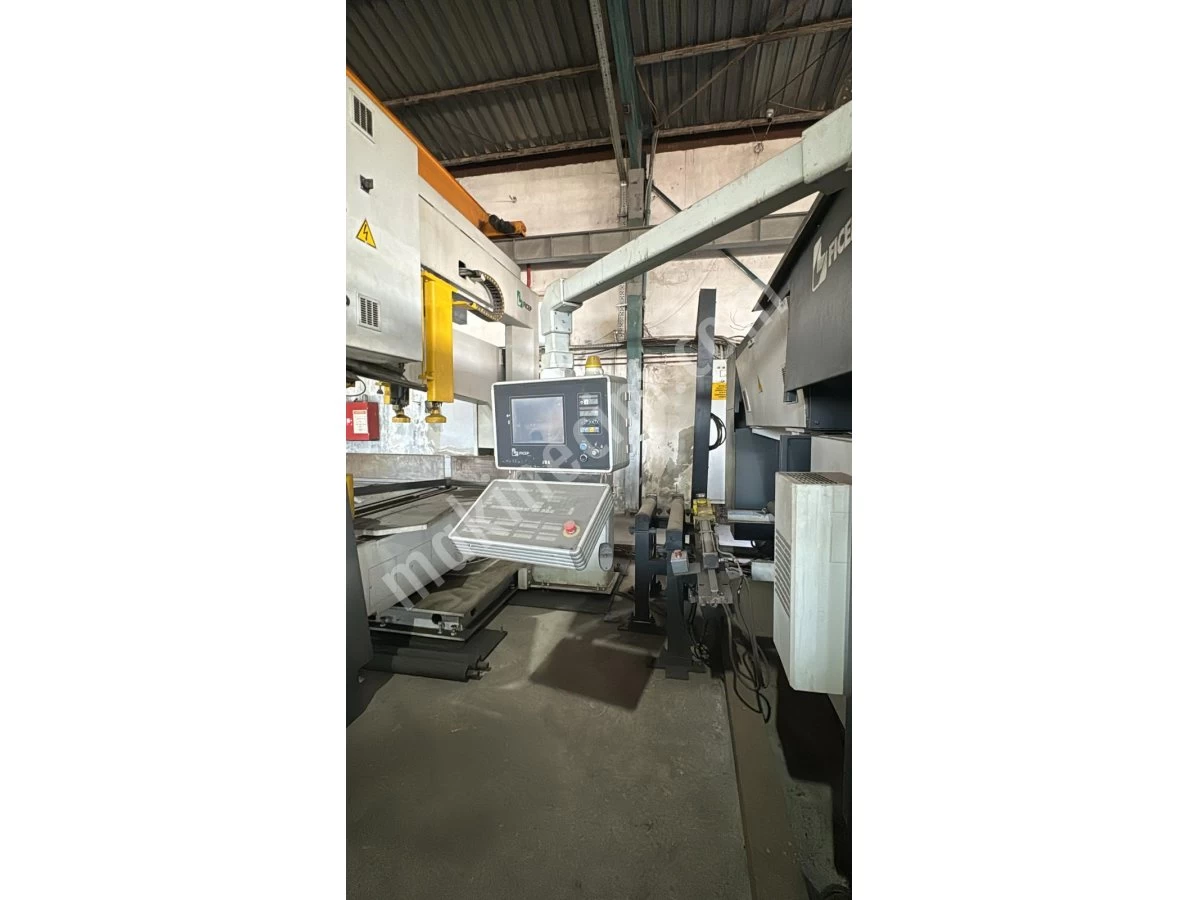

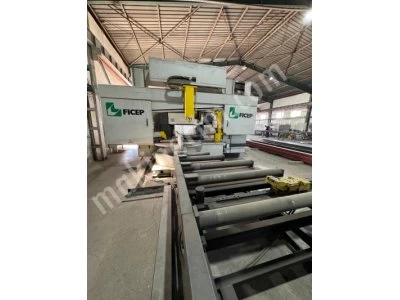

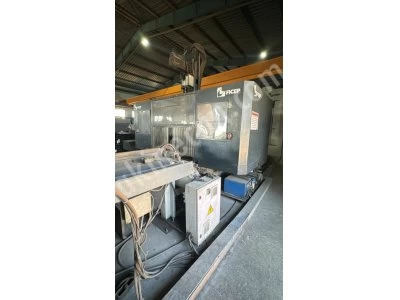

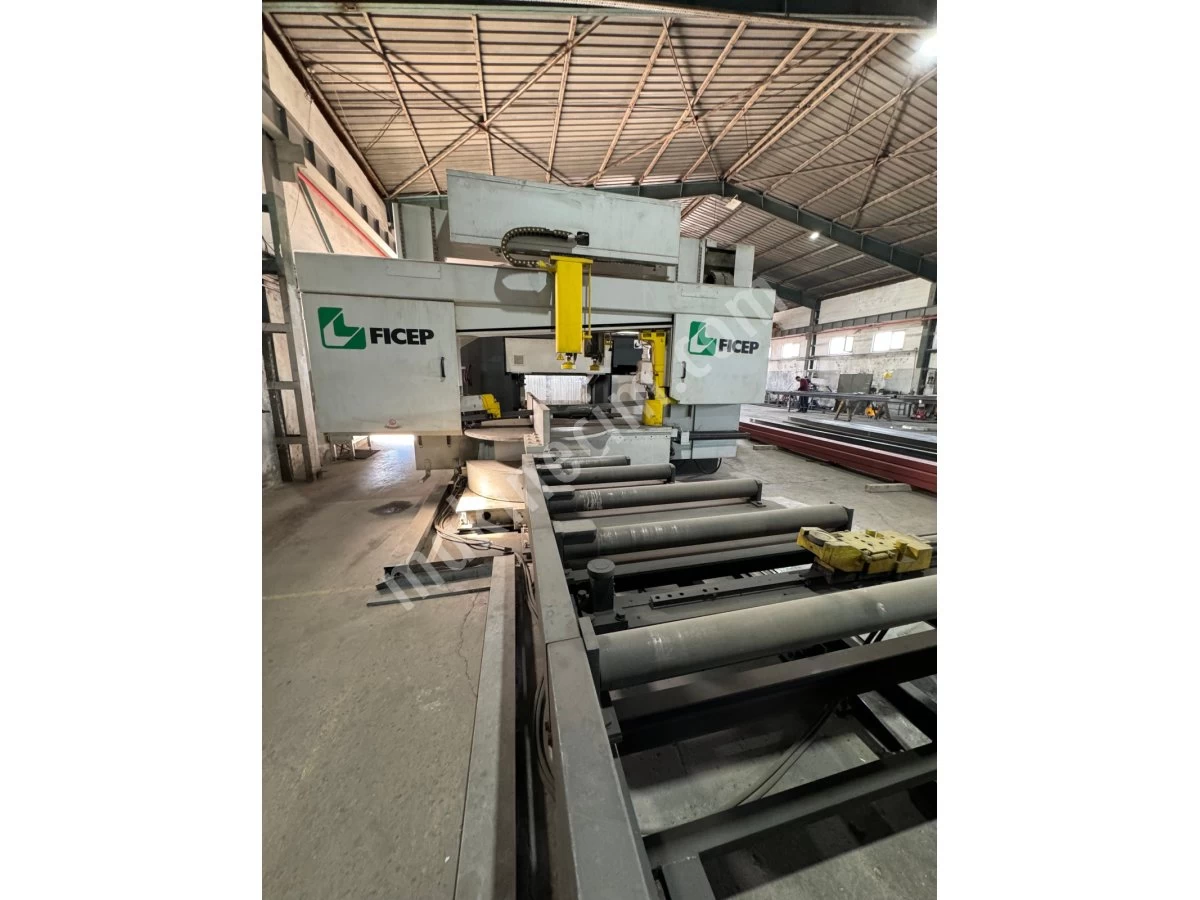

Ficep 1001 Dzb 2007

GeneralInformation:

Location: Gebze/Kocaeli (Göksuoğlu Metal)

Brand: Ficep

Model: 1001 DZB

Serial Number: 29307

Year: 2007

Shipping Fee: Disassembly and transportation are theresponsibility of the buyer.

Specifications:

Number of Spindles: 1

Spindle: 15 HP

Spindle Speed: 180-2500 RPM

Drawing: 4-Sided

Maximum Hole Size: 5 cm

Maximum Section Depth: 93 cm

Automatic Tool Changer: 6 Positions

Band Saw Capacity: 102 cm

Maximum Section Weight: 5,700 kg

Power Requirements: 440V / 3-Phase

Equipment:

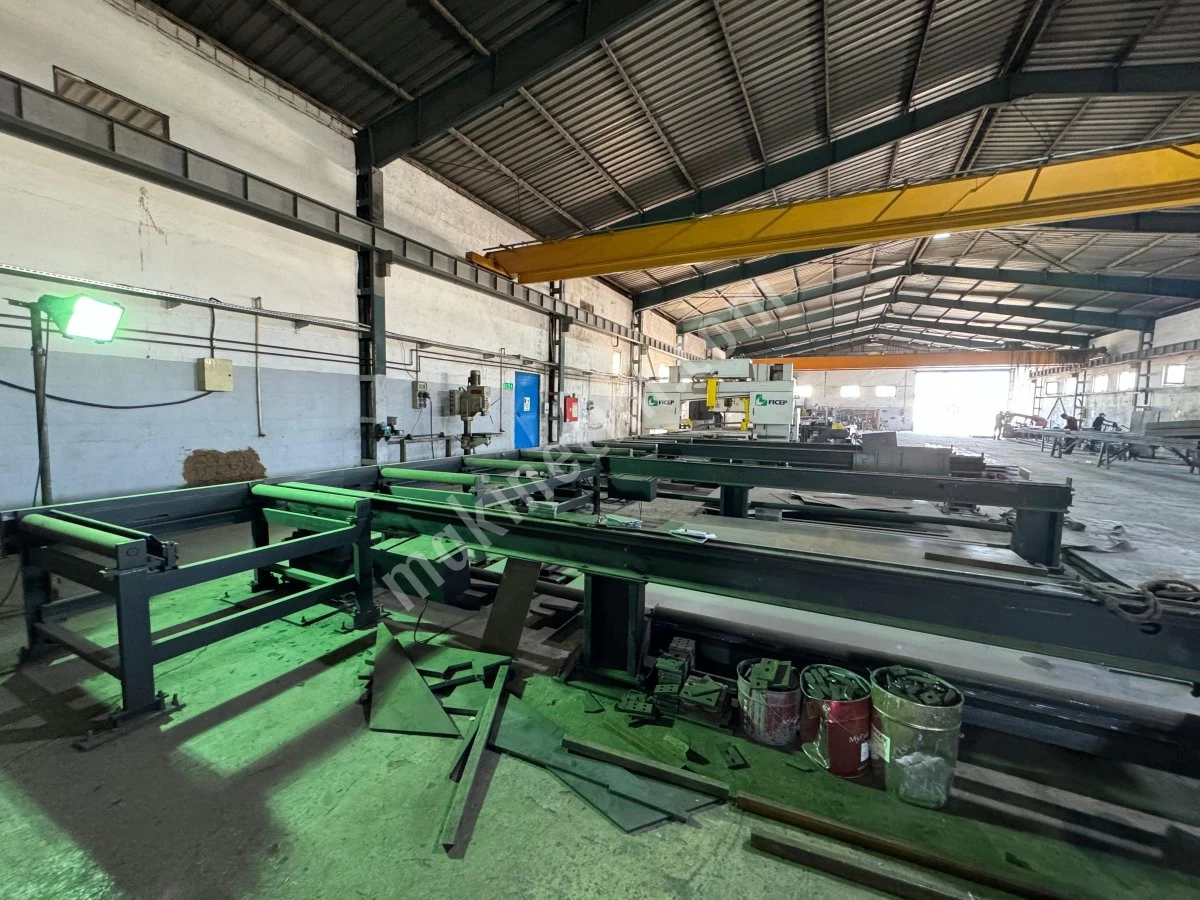

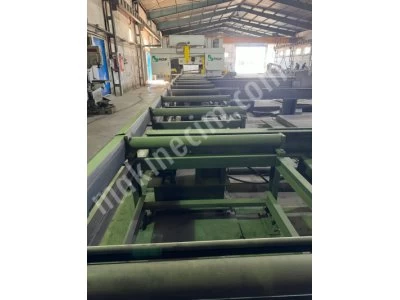

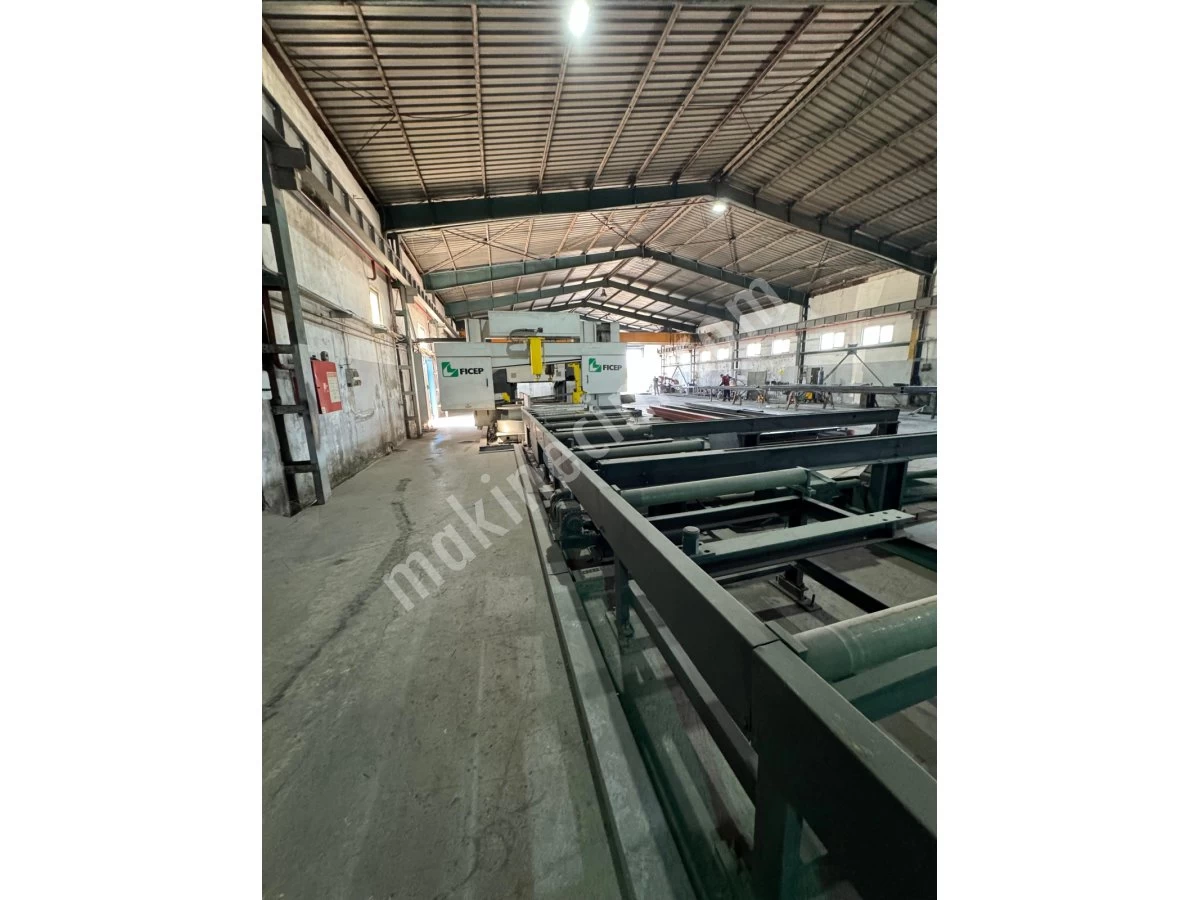

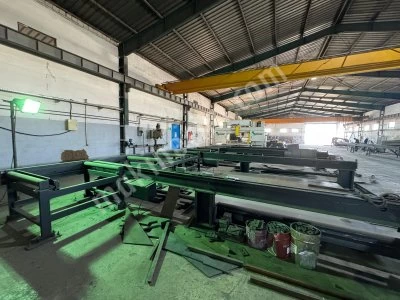

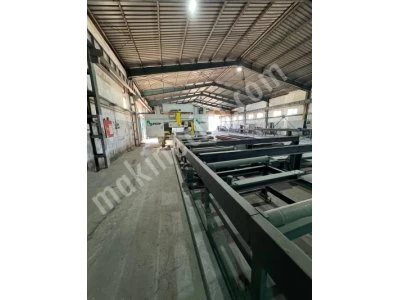

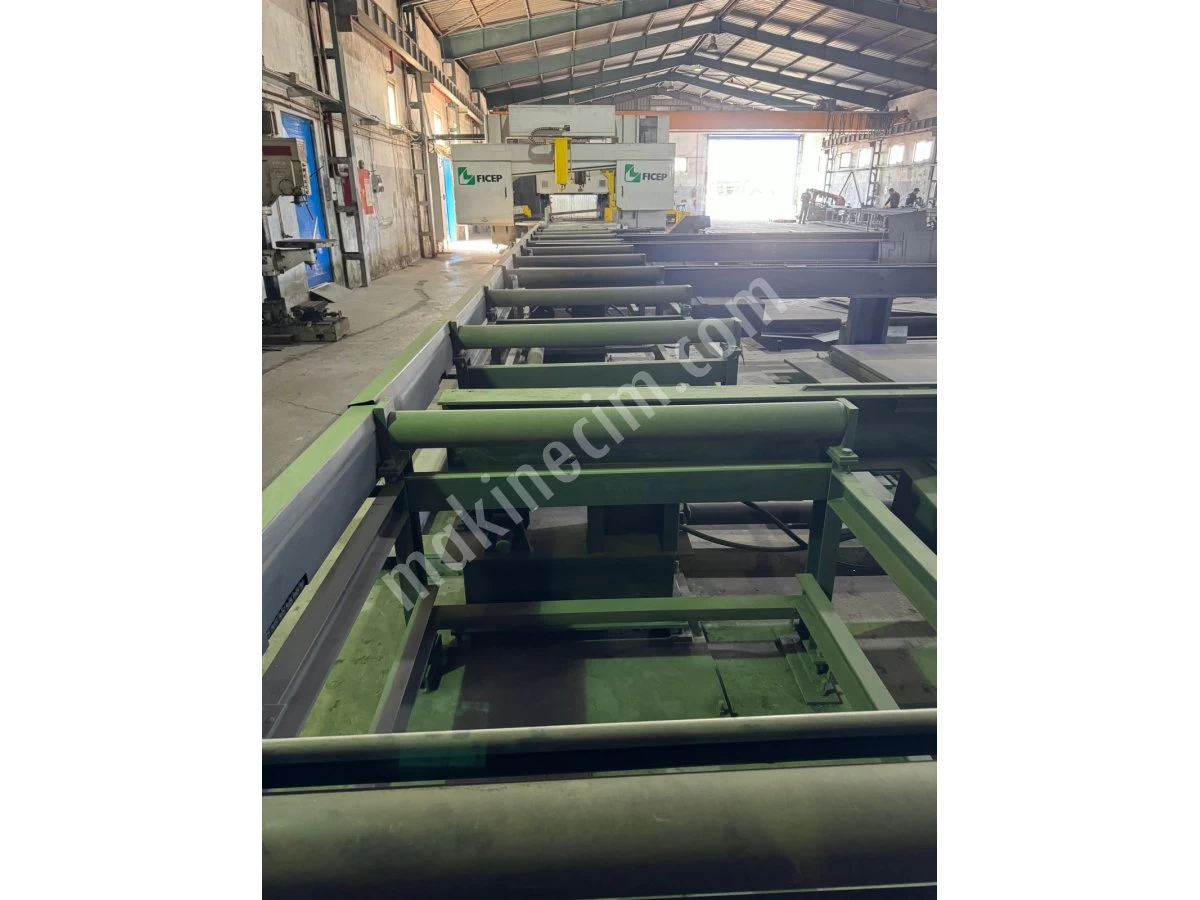

65' Feed Conveyors, 50' Exit Conveyors

AdditionalInformation:

I-Beams

Beam Depth Minimum 3-1/8"

Maximum: 40" (saw)

Maximum: 44" (drill)*

Flange Height Minimum: 1-5/8"

Maximum: 17-3/4”

Channels (with flanges facing down)

Channel Depth Minimum: 3-1/8”

Maximum: 40” (saw)

Maximum: 44” (drill)*

Flange Height Minimum: 1-3/4”

Maximum: 11-3/4”

Angles

Foot Height (including uneven feet) Minimum 3-1/8” x 3-1/8”x 3/8”

Maximum 10” x 10” x 1-9/16”

Flats

Width Minimum 4”

Maximum 40” (saw)

Maximum 44” (drill)*

Square Tubing

Minimum Size 3-1/8” x 3-1/8”

Maximum 17-3/4” x 17-3/4” in.

Rectangular Pipes

Minimum Size 3-1/8 in. x 1-9/16 in.

Maximum 40 in. x 17-3/4 in. (saw)

Maximum 44 in. x 17-3/4 in. (drill)*

*Crossing members exceeding 40 in. depth requires removal ofhorizontal saw clamps. All Beams

Maximum Drillable Thickness 7.5 cm

Maximum Transferable Length 20.5 m

Minimum Transferable Length 2.4 m

Drilling Capacities

Drill Heads 1

Number of Spindles per Drill Head 1

Maximum Hole Diameter 5 cm

Spindle Rotation Motor (AC) per Head 15 HP

Infinitely Variable and Programmable Spindle

Speed Per Spindle 180–2500 RPM

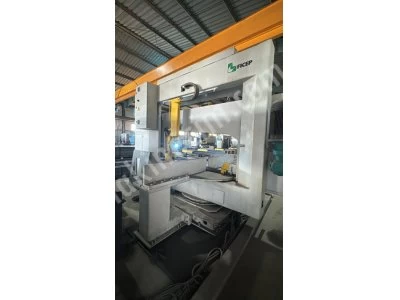

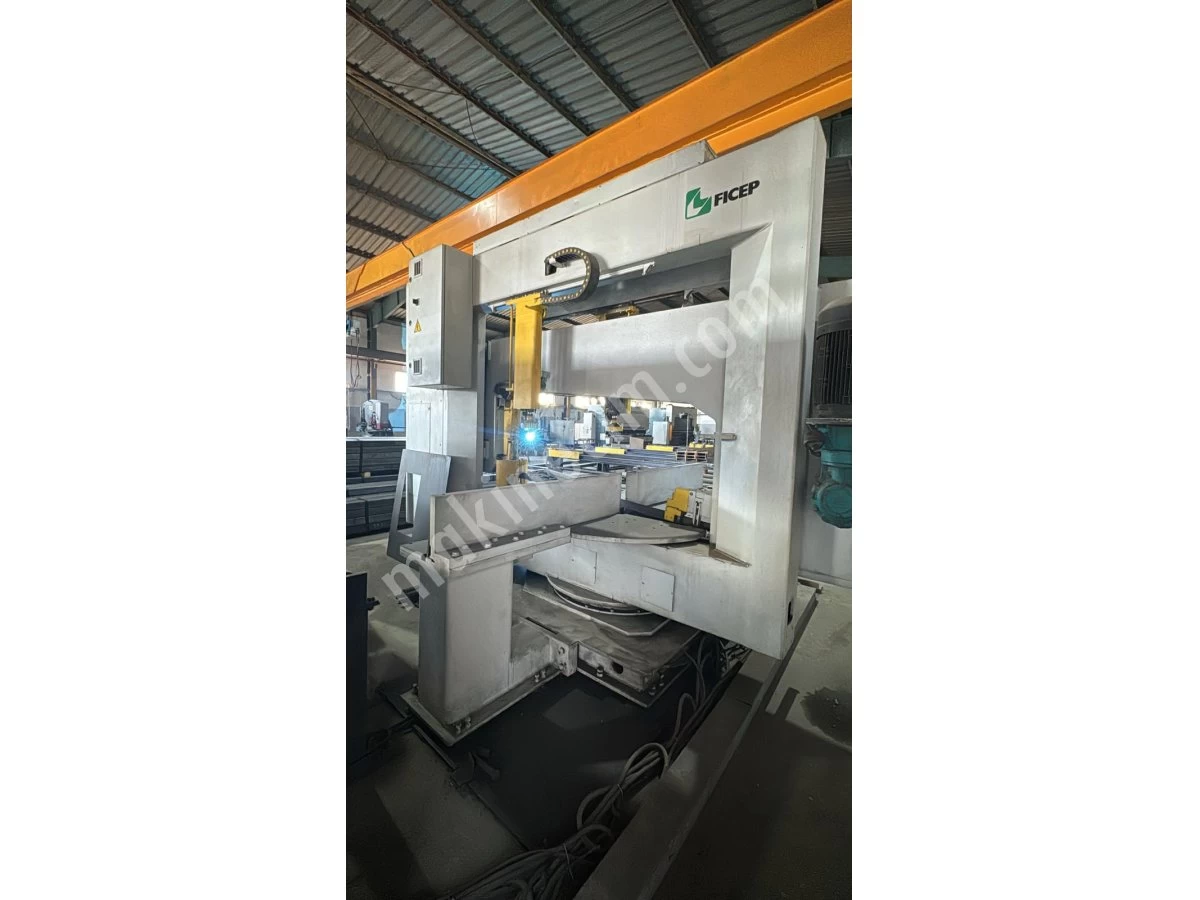

Band Saw Unit Model 1045 BH

Cutting Capacity at 90° Angle Minimum 8.5 cm x 1.0 cm

Maximum 104 cm x 45.5 cm

Cutting Capacity at 45° Angle 6.5 cm x 45.5 cm

Blade Size (Width x Cut) 3.6 cm x 0.05 cm

Band Saw Drive Motor 7.5 HP

Programmable Blade Speed 65–328 FPM

Other Features

Maximum Standard Section Weight 11,900 lbs.

Maximum weight per foot as standard: 300 lbs/ft

Not to exceed 11,900 lbs.

Maximum conveying speed: 164 FPM

Pass line: 33-1/2”
