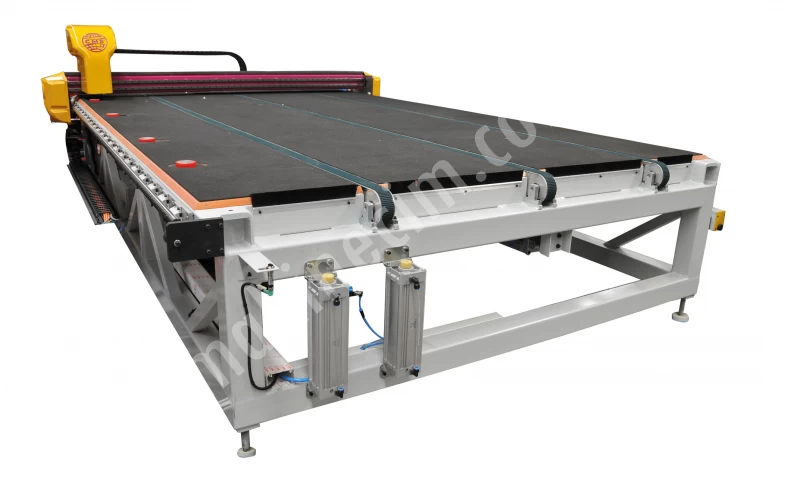

Fcm Series - Glass Cutting Machines

• Vibration free working and movement thanks to heavy and sturdy steel construction structure
• Excellent precision table surface for perfect glass cutting and high quality glass breaking
• Table surface made by 22mm thick strong MDF
• Long-life and smooth cushion table surface
• Cutting Table with transport belts
• All Axis has been processed by CNC machines all at one time to catch stable structure
• Perfect cutting quality with Helical pinion and rack gear system
• Long-life metal head cutting diamonds
• Precious Cutting bridge
• Mechanical positioning system to make Glass referencing
• Laser scanner system with electronic positioning
• Laser scanner system for shaped glasses
• Automatic safety system against cutting head falling off the glass
• Straight and shape glass cutting feature
• Low-E Edge Deletion system for straight and shape glass
• Long life Metallic brush system for Low-E glass edge deletion (Patented to CMS Glass Machinery)
• Automatic glass cutting speed for clear and Low-E glass
• Hi-Tech operating head with an automatic cutting pressure
• High-tech buildings with a diamond head group
• Automatic pressure system according to different glass thickness and shape glass
• Vinyl Glass cutting feature

Optimization Software:

• Perfect Cut Suite
• Laminated Glasses are cut with accuracy of +/- 0,5mm via mirroring feature of the optimization software

 The optimization softwares includes the following modules:

Highlights:

Standard Straight and Shape Cutting:
By aid of automatic speed and pressure adjustment gives you the perfect glass cutting for straight glass, shape glass and irregular shape glass
Standard Low-E Edge Deletion:
Integrated long life high-speed brush system for Low-E Glass. The brush system has automatic edge deletion speed for straight and shape glasses
Standard Shape Scanning (Arc Method):
The scanner system allows the acquiring of a shape template using the laser sensor of the cutting table. The intelligent algorithms introduce a new generation for the shape-scanning feature. It is faster and more accurate than the standard “unintelligent grid” scanning.
Standard Vinyl Glass Cutting:
Standard vinyl glass cutting function offers a maximum quality of cutting vinyl film. The system has an ability of importing .dxf files of artistic drawings or figures into the library to cut them on the machine delivering a high quality product.
Remote Control System for Technical Assistance Purposes:
The machine has remote control system for technical assistance purposes. This system provides the most advance and effective service. Remote control system allows the technician to interact and communicate with the numerical control directly from the service center through via modem connection
