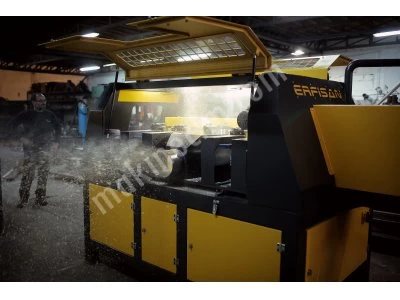

Erfisan Makina - Vertical Multiple Slicing
There are 2 main motors of 30 kW.

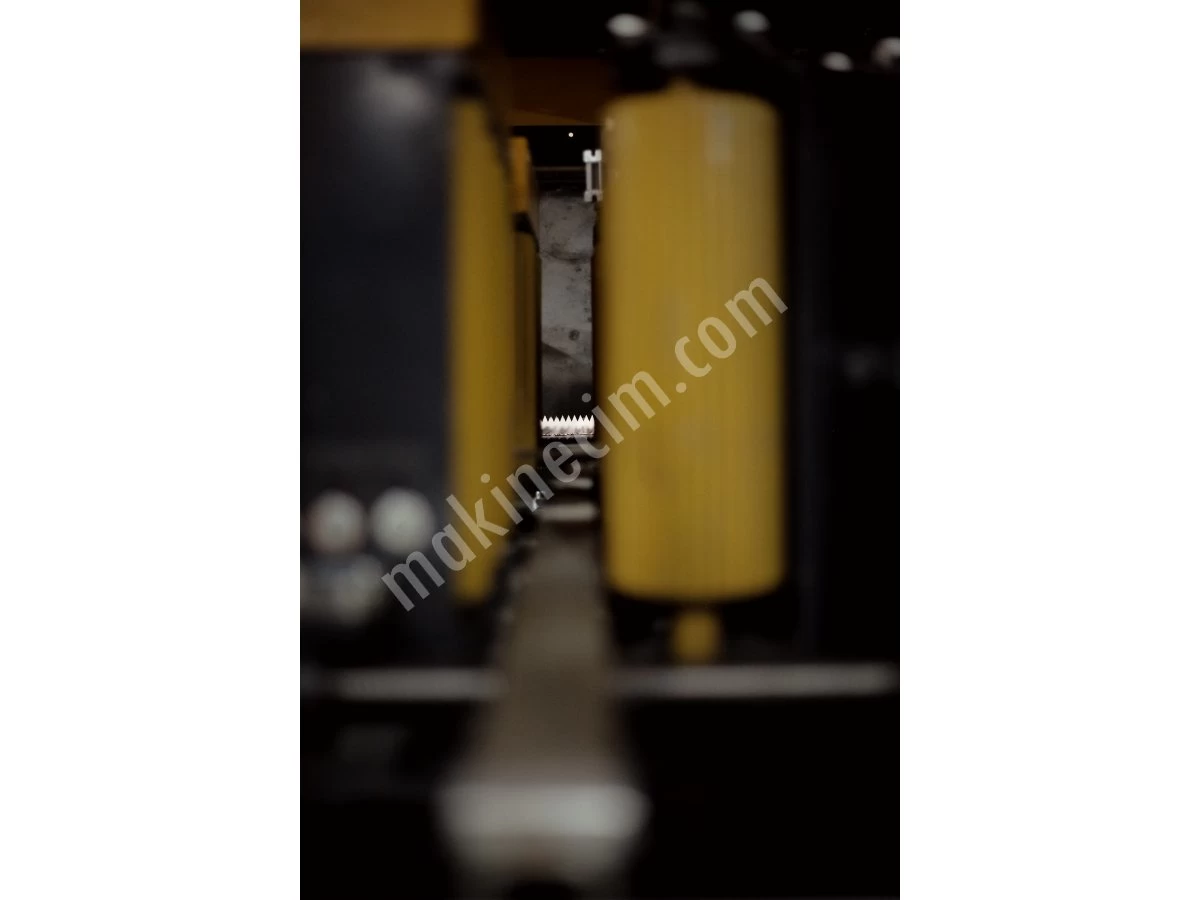

There are 3 traction drive motors in total of 2.2 + 2.2 + 0.55 kW. It provides fast and safe working opportunity with a total of 12 rollers, 9 of which are driven.

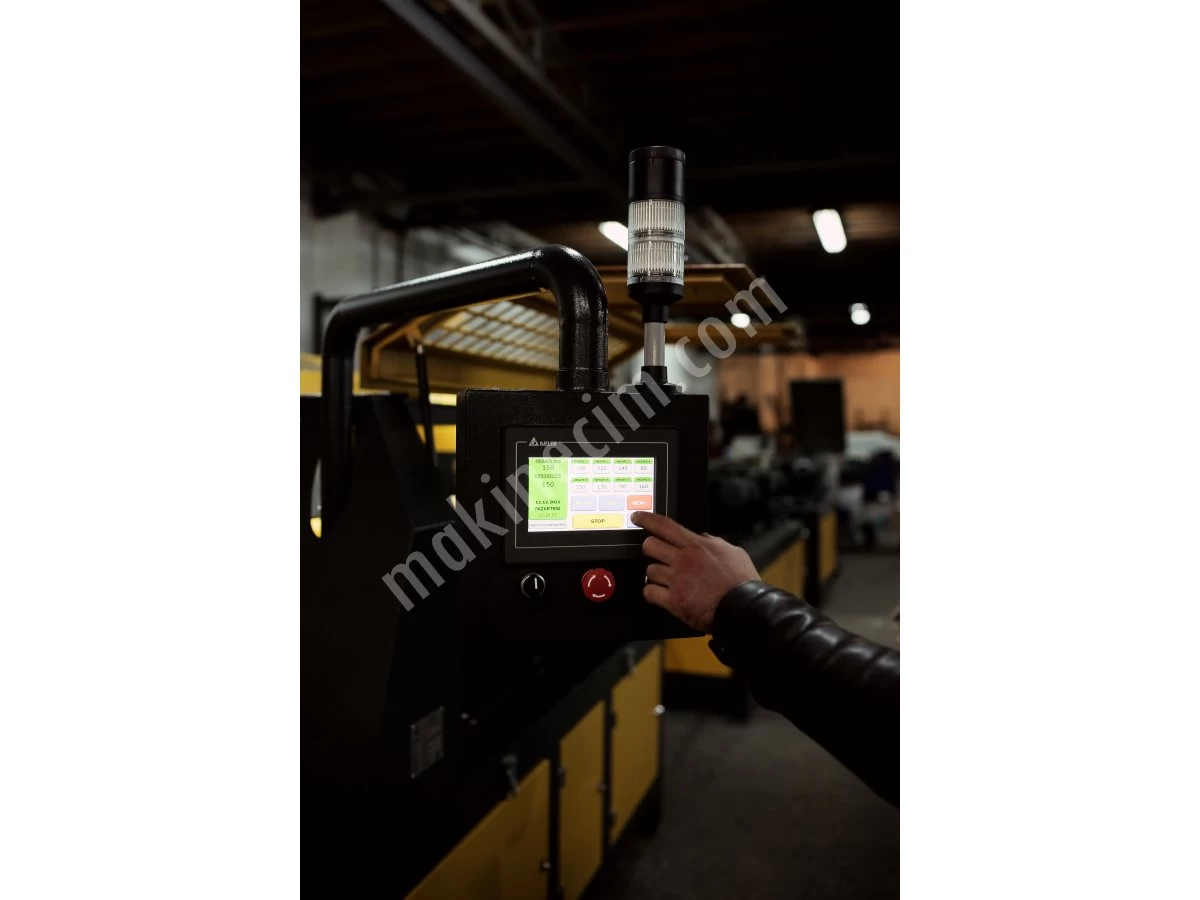

Width adjustment is made by PLC control unit with fully digital control.
250 – 300 – 350 flats can be connected.
It has a cutting thickness of 5.5 cm to 22 cm and a processing capacity of 40 cm.
Minimum lath length is 70 cm.

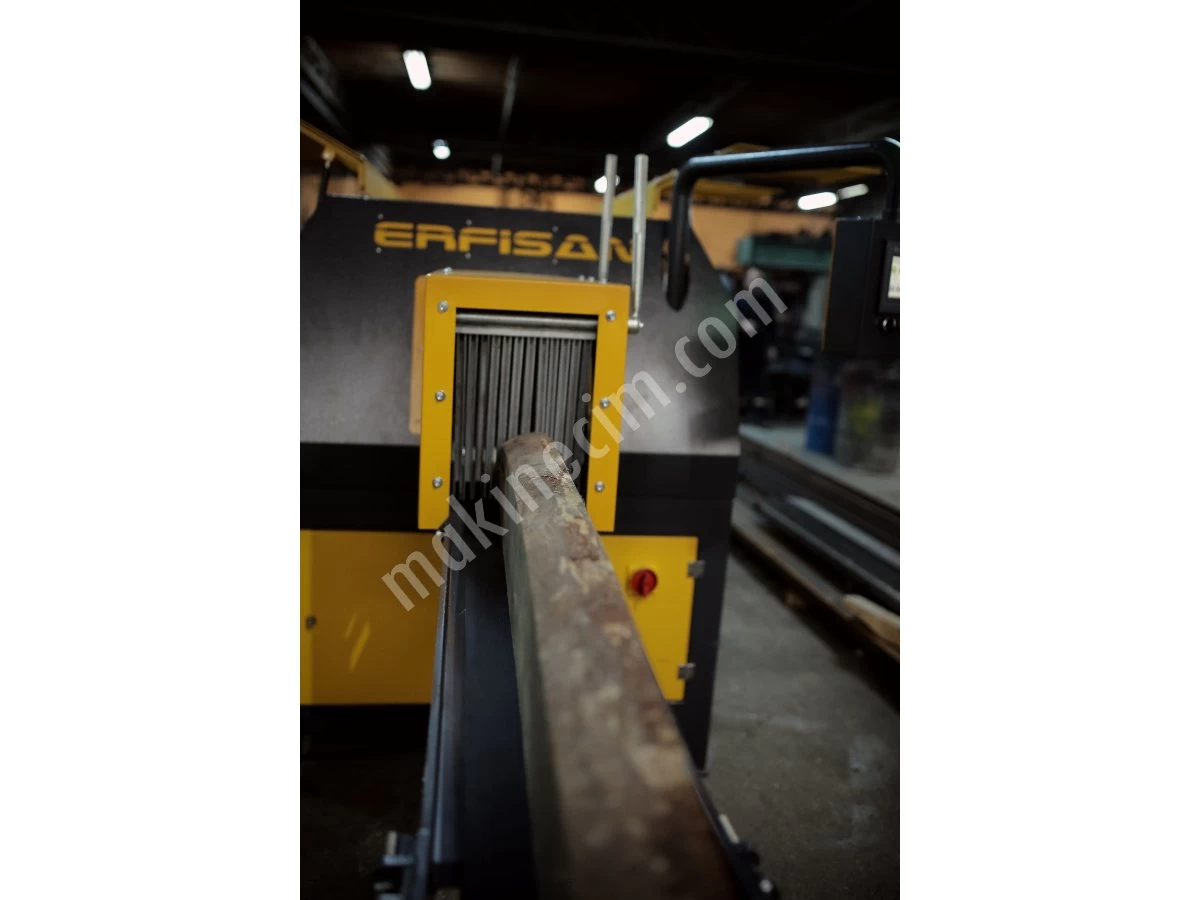

The material that exceeds the processing capacity is sent back to the entrance thanks to the easy material loading with the help of the belt conveyor at the entrance and the return belt.
Except for the main motors, all motors are controlled by the driver, DELTA is used in the driver and PLC unit, LG product LS is used in the switchgear.
Our machine is guaranteed for 1 year, provided that you meet the necessary maintenance conditions (lubrication, cleaning, etc.).
