Equivalent Sand Shaking Device Liya Laboratory Test Instruments
| Price : | Ask For Price |
| Ad Code : | M-159319 |
| Ad Type : | For Sale - New |
| Views : | 508 |
| Date Updated : | 29 Apr 2025 |
| Production Type : | Special Production |
| Brand : | LİYA LABORATUVAR TEST CİHAZLARI LTD. ŞTİ. |
| Model : | LT-B0003 |
| Production Year : | 2012 |
Liya Laboratuvar Test Cihazlari Beton Test Presi
Türkiye - Ankara - OSTİM
MELİH GÖKÇEK BULVARI OSTİM TEKNİK SİTESİ NO-1-41
Equivalent Sand Shaking Device Liya Laboratory Test Instruments Ad Description
General Specifications:

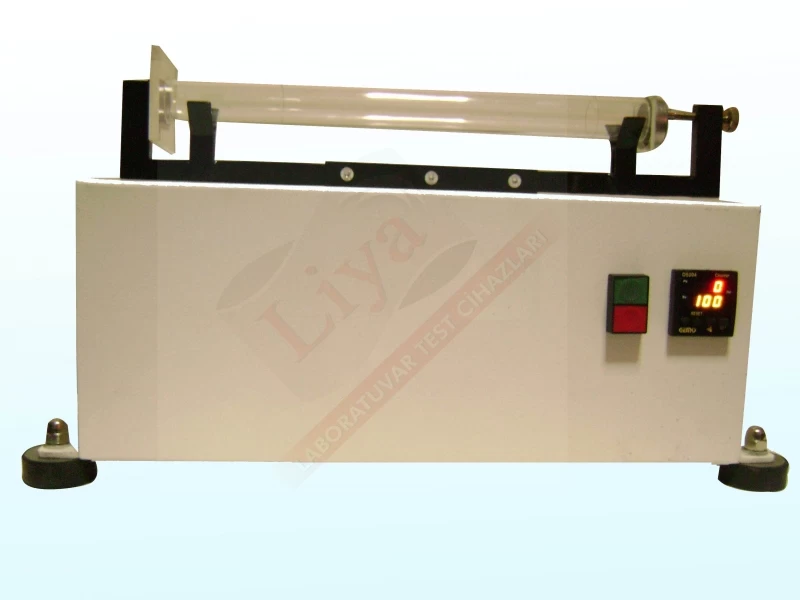

The shaking apparatus is designed to shake Sand Equivalent cylinders in a homogeneous way. The operating time is adjustable.
Relevant Standards:
EN 933–8, ASTM D2419, AASTHO T176, UNI 8520–15, UNE 83131, CNR No. 27
Technical Specifications:
| Product Code | Product Name | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| LT-A0003 | Sand Equivalent Shaker | 220x600x320 | 4.6 |
| LT-A0004 | Sand Equivalent Shaker with Enclosure Cabinet | 240x800x340 | 27.5 |
Standard:
| Standard | Horizontal Movement | Rate |
|---|---|---|
| EN 933–8 | 200 mm ± 1 mm | 90 ± 3 cycles / 30 s |
| ASTM D2419 | 203.2 mm ± 1.02 mm | 88 ± 3 cycles / 30 s |
Electrical Requirements:
220 V, 50–60 Hz, 1 ph
