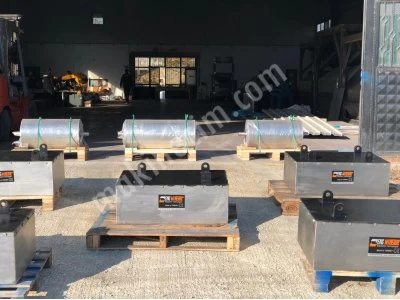

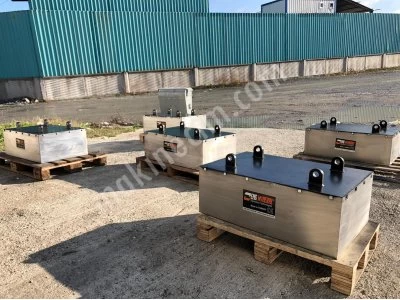

Eng Mineral Manuel Cleanıng Over Belt Permanent Magnet
| Price : | Ask For Price |
| Ad Code : | M-448057 |
| Ad Type : | For Sale - New |
| Views : | 15 |
| Date Updated : | 13 Jan 2025 |
| Production Type : | Brand |
| Brand : | Eng Mineral |
| Model : | Eng-mbt |
| Production Year : | 2024 |
year
It is used for the retention of iron and iron compounds (magnetic metals) in the transported material during transportation on conveyors.
Depending on the width of the conveyor belts and the transport height of the transported material, it is possible to design in any size.
Magnetic material selection is made according to the application area of our machines produced with permanent magnets. Our company manufactures magnetic holders with Sr-Ferrit and NdFeB alloy magnetic materials.
|
MODEL |
Konvenyör Bant Genişliği (Convenyor Belt Width) (mm) |
Mıknatıs Boyutları (Magnet Size) (mm) |
Çekme Mesafesi (Pull Distance) (mm) |
|
MBT-504522 |
500-600-650-700 |
500X450X225 |
200 |
|
MBT-504525 |
500-600-650-700 |
500X450X250 |
250 |
|
MBT-504527 |
500-600-650-700 |
500X450X275 |
250 |
|
MBT-655522 |
800-900 |
650X550X225 |
200 |
|
MBT-655525 |
800-900 |
650X550X250 |
250 |
|
MBT-655530 |
800-900 |
650X550X300 |
300 |
|
MBT-856522 |
1000-1200 |
850X650X225 |
200 |
|
MBT-856525 |
1000-1200 |
850X650X250 |
250 |
|
MBT-856530 |
1000-1200 |
850X650X300 |
350 |
|
MBT-1006525 |
1400 |
1000X650X250 |
250 |
|
MBT-1006530 |
1400 |
1000X650X250 |
300 |
|
MBT-1006532 |
1400 |
1000X650X250 |
325 |
