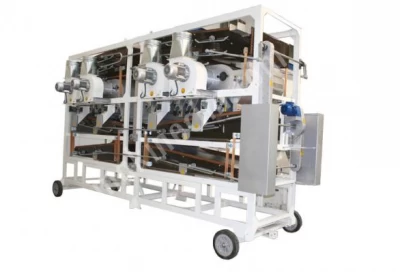

Dual front & Precision Screening Machine

High capacity precision screening machines. The machine is manufactured in right and left view mirror on a body. Left and right side separately carries out the same task where large capacity is obtained.

There are two standard models; fixed and movable type.



High capacity precision screening machines. The machine is manufactured in right and left view mirror on a body. Left and right side separately carries out the same task where large capacity is obtained.

There are two standard models; fixed and movable type.



 Working Principle:

Product delivered to the machine with one feeder into two, right and left cleaning unit. Product in the first screening sieve separated from the rough-dust material. The second screening sieve with vacuum vessel Absorbs garbage, straw, husks etc. While separated particles are taken as fractures, the last screen products are divided into two different color. Vibration is done with the help of eccentric bearings. The cleaning system which is under the sixth screen has brushes moving forward and back, so there is no risk for the screen to be blocked.





Ürün / Product	Kapasite tn/st / Capacity tn/hr
Soya Fasülyesi Soya Beans	7-10 ton / saat 7-10 tn / hr
Nohut chickpeas	8-12 ton / saat 8-12 tn / hr
Fasulye Beans	7-11 ton / saat 7-11 tn / hr
Barbunya Kidney Beans	7-10 ton / saat 7-10 tn / hr
Susam Sesame	4-6 ton / saat 4-6 tn / hr
Yeşil Mercimek Green Lentils	5-8 ton / saat 5-8 tn / hr
Kırmızı Mercimek Red Lentils	8-11 ton / saat 8-11 tn / hr
Buğday Wheat	8-12 ton / saat 8-12 tn / hr
Pirinç Rice	6-8 ton / saat 6-8 tn / hr
Ayçekirdeği Sunflower	3-5 ton / saat 3-5 tn / hr
Kimyon Cumin Seeds	2-4 ton / saat 2-4 tn / hr

Makine Ebatları / Dimensions
Makine+Elev Boy Machine+Elev Lenght	5850 + 550
Makine+Elev Eni Machine+Elev Width	2000+105
Makine+Elev Yüksekliği Machine+Elev Height	3200+2050

Motor Sayısı Engine N	Toplam Motor Gücü Total Motor Power	Standart Gerilm Standard Volt	Opsiyonel Gerilim Optional Volt	Ağırlık Weight	Fırça Sayısı Brush No	Eleme Alanı Screen area	Titreşim Vibration
7	13	380	220-440	2600	30	2x8=16	Eksantrik Eccentric



Improved Products

Soybeans

Chickpeas

Beans

Kidney Beans

Sesame

Green Lentils

Red Lentils

Wheat

Rice

Sun Flower

Cuming Seeds

and many others.
