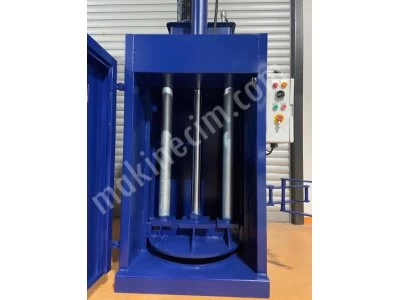

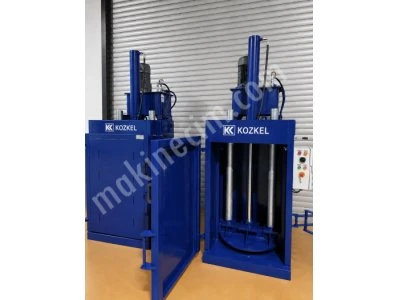

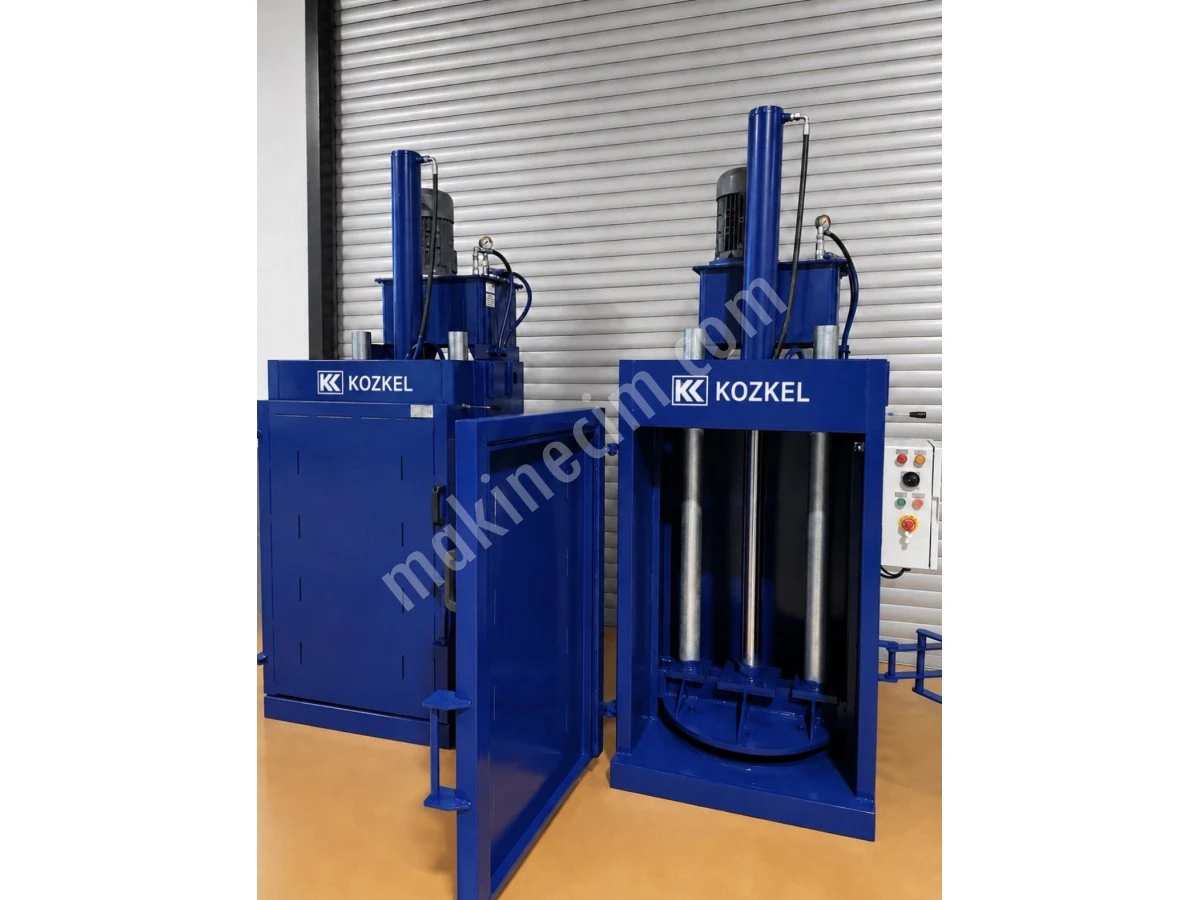

Drum Crusher

With KOZKEL Barrel Crushing Press Machine, you can easily press all barrels up to 210 Liters in volume.

• Since cycle time is very important in barrel pressing, the 7.5 kW motor and large pump provide a fast press cycle time.
• High-thickness and reinforced body sheets provide long-lasting durability under the strongest pressure forces.
• Electrical panel in IP65 Standard (panel resistant to weather conditions such as rain, cold, heat, etc.).
• Compliant with TS EN ISO 12100:2010 Risk Assessment Standards.
• CE certified and compliant with EN16500:2014 Standards.
• It provides a more effective and long-lasting exterior coating thanks to electrostatic powder paint.

• Machine Dimensions W/D/H: 120 X 100 X 250 cm
• Pressing Force: 40 TON
• Machine Weight: 750 kg
• Engine Power: 7.5 kW
• Working pressure: 200 bar
• Cycle Time (descension + ascent): 18 sec.

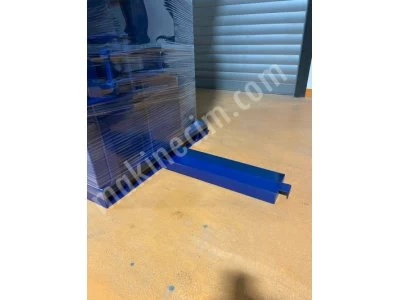

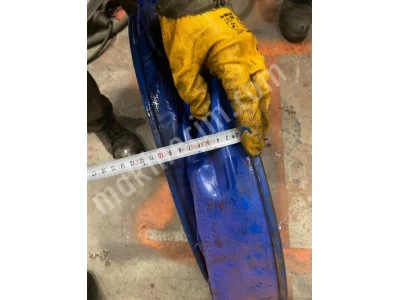

• Crushed Barrel Height: 10 cm
• Warranty Period: 1 years
• Grounding system
• Stand-by operating system
• Engine protection system
• Phase rotation indicator light
• On-Off power switch
• Safety certified "Emergency Stop" button
