DRAGON 20 NEW GENERATION OF NEW TECHNOLOGIES FOR SALE CLOSED CIRCUIT

Mobile: 0555842 86 86

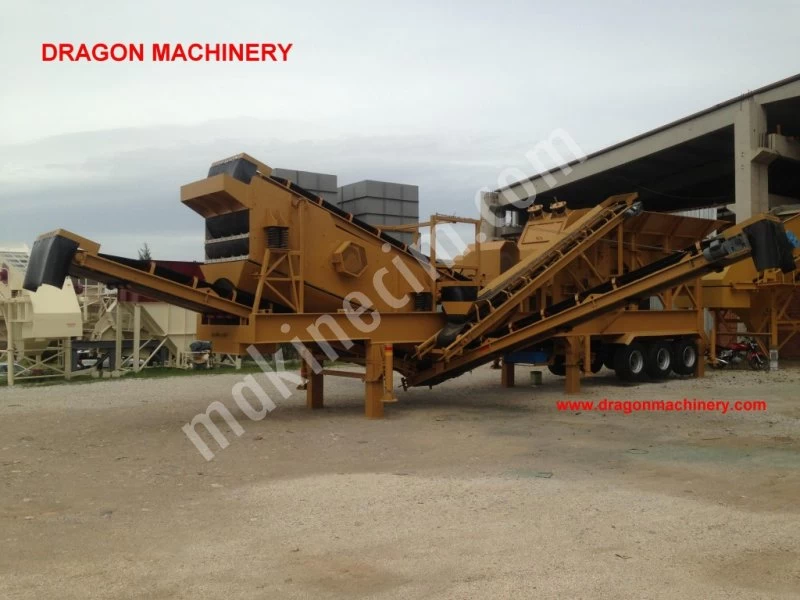

Dragon 20 Mobile Crushing and Screening System, Closed-circuit , Recycle Plant

DRAGON 20 ? ? Mobile Closed Circuit Crushing and screening plant new technologies

Dragon 20 closed-circuit crushing system All systems were collected on a single platform , with 1 GB portable.

Designed to be in operation within 15 minutes of edilmişd .

Classic Rock Crusher plants alone more you can do with jobs .

Current world and Turkey, the construction of our most preferred in the market .

Machines and equipment available in the system

* Vibrating Feeder and hopper

2 vibromotorl feeder system is driven edilmekd . In this way, works smoothly and is sunulmakd minimum maintenance .

Excavators and Loaders feed hopper feeder is suitable for permanent Kamyonla feeding studies done with extra compartment .

In the hopper feeder and all wear points are korunmakd with interchangeable wear armor .

Tray feeders are in the playoff system . By-pass conveyor eliminated thanks to the stockyard earth materials spill.

* Dragon 20 Advanced Turbo Impact Crusher System

Feed hopper 1500x1300mm

Rotor: 1500 x 1400mm

Thin walls are 8 pieces in providing crusher .

Motor Power 200 - 250 KW

Thanks to special adjustment block primary , secondary one machine function ? ? Dose.

Up to 50 times with high reduction ratio is unsurpassed.

* Main Conveyor Belt System 1200 mm

Crawler is a wheel conveyors .

* Vibrating Screen type High Capacity System

Size : 2000x5000mm

Engine power 22 KW

Floors: 3 Floor

* Screen conveyor 1200 mm six- Stock

Folding type

* Stock Conveyor 650 mm Folding type 2

* Return Conveyor Collection 1 600 mm

* Return Conveyor 2 750 mm

* Mobile Chassis Chassis System 3 -Axis Specialty constriction

* Hydraulic System

There are six hydraulic ram mechanism in the system , after six hard both kilitlendikd These feet are strengthened .

2 for opening and closing the lift piston hammer has also these special control system is controlled by the piston 8 .

Hydraulic Power System 125 Litres

Magnetic Conveyor Belt 750 mm

* Board Material , Telemecanique , Schneider Electric is branded .

* Soft Starter Panel Systems Abba in the system and special control system is available.

Uzakd the Control ( Radio Control System ) is yapılabilmekd control of all functions .

Generator System is optional Cummins, Perkins, Doosan, Deutz 6 cylinder diesel engine brands and Marelli alternator .

Capacity: Fragile Materials and Supply, which vary according to the size of the final product is 250 ? ? Capacity is 375 tons .

Tozsuzlandır System , Conveyor high-pressure water to suppress dust in the nozzle of the spray powder is blocked.

Feeders would Vibromotorl Emtaş or Italvibras , Olin is Brand .

Drive drum is rubber -coated and Gear Type .

Electric Motors GAMAK , Emtaş , is International Branded .

Indirect special gear reducers 3 respectively.

Rubber Conveyor Belts are Brand Derby or Eksaş .

Bearings: SKF bearings or equivalent

Eregli Iron and Steel flat products used in the product is not A1 quality .

* By-pass system (optional )

* Magnetic magnet (optional)

* Generator System (Optional)

* Truck addition which is used to make the feed hopper (Optional)

* Tozsuzlandır System ( Optional)

* Frequency Control System soft starter is used instead.

This system of the crusher operation cycle allows adjustment , also the generator in working with through this device Demerajsız work , Cheap generator selection and low fuel consumption sağlanabilmektedir.takrib fuel consumption 25 - 30 Lt / hour ( Optional) ** All of our products European Union is CE certified . ** Total weight: 58,000 kg ** Shipping Dimensions: Width x Height 3000 mm x 4500 mm Length 16000 mm
