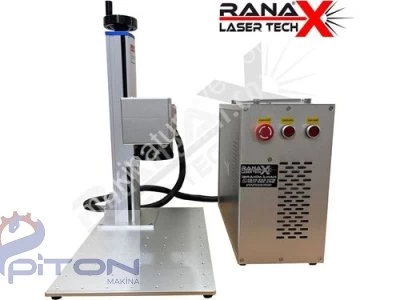

Dp30W Fiber Laser Marking Machine

TRAINING - SHIPPING AND INSTALLATION IS FREE

You can contact us for detailed technical information, references and sales information.

We would be happy to welcome you in our Istanbul Office

2 YEARS WARRANTY

Original Raycus Q Series Source - JCZ Ezcad2 Control Board ( Turkish ) - Sino Galvo

12 Months Installment Opportunity for Credit Card

usage areas

​All Types of Metals (Silver, Gold, Platinum, Copper, Aluminum etc.) Key Restoration, MDF, Parquet, Leather, Many Plastic Types, Circuit Boards, Plate Cards, Promotional Products, Mirrored and Acrylic Plexiglasses, Phone Cases, Painted Products , Bank Cards, Carbon Based Materials etc.

GENERAL FEATURES AND INSTALLATION CONTENT

More than 15,000 Patterns and Drawings
Professional Drawing Program
Goggles
Foot Pedal
Raycus Q Series Source
70x70 -110x110 - 150x150 - 200x200 - 300x300 mm Lens Options
Manual Focus
Sino Galvo
Portable Design
100,000 Hours Laser Life
Low Energy Consumption
Double Red Pointer
Turkish Software

24/7 Free Service and Spare Parts Support All Over Turkey

Get Price for Computer, Divider and Additional Equipment

5 Year Spare Parts Warranty

DETAILED TECHNICAL INFORMATION

Laser Power: 30W

Supported Graphics Format: PLT, BMP, JPG, PNG, AI, PCX, TGA, ICO, DXF

Beam Quality: M2<2

Power Stability : (8)<+1% rms

Pulse Repetition Frequency: 20KHZ---100KHZ

Consumption Power: <800W

Minimum Character: 0.1mm

Laser Wavelength: 1064nm

Working Area: 70x70 -110x110 - 150x150 - 200x200 - 300x300 mm

Whole Machine Power: 500W

Cooling Way: Air Cooled

Operating Voltage: 110/220V + 10%, 50/60Hz

Ambient Operating Temperature: -35°C + 50°C

Red Marker: Dual Laser Marker

Galvanometer: Sino Galvo

Laser Source: Raycus Q Series

Control Card: JCZ Ezcad2 Turkish Software
