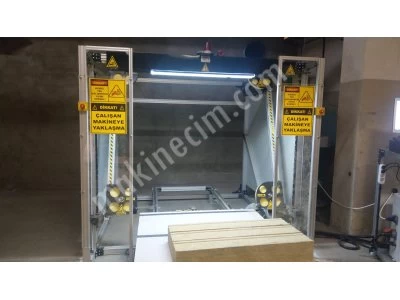

Double Speed Wire Cnc Cutting Machine

Dual Speed Wire CNC Cutting Machine Features:

• 2 Blocks can cut at the same time.

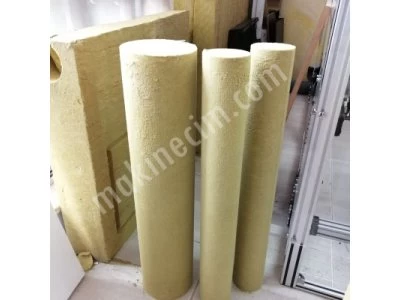

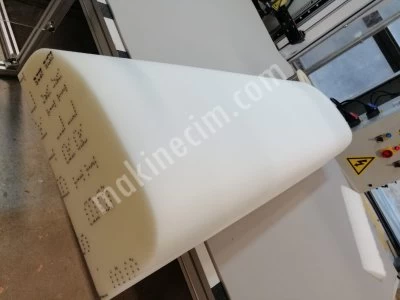

• Rock wool , Polyurethane (PU) , Glass wool , Sponge cutting.
• Wire break sensor. (Separately for both wires.)
• Thanks to the CNC control program, the plt drawing can be cut as desired.
• Turning on the automatic wire motor when the job starts and increasing the motor speed to the set cutting speed.
• Stopping the wire motor and turning off the wire motor by slowing down the speed of the wire motor at the end of the work.
• Turning on the automatic air blowing system and vacuum system when the job starts, closing the systems at the end of the job.
• Audible warning system at the end of the job. Visual (light) warning system and LED lighting while the machine is running.
• Digital speed control.
• 3 kW , 380 VAC , 6.000 rpm motor and motor controller.
• Special cutting wire capable of cutting at 300 km/h.
• 4 special dust extractor (Vacuum) systems. (1.600 m3/hour) (2 pieces of dust suction flying overhead, 2 pieces of wire dust extraction.)
• Strong sigma profile aluminum body.
• Y-axis precision linear slide motion system.
• Special cut and painted connection sheets.
• Handy control panel and Computer.
• The WinPC-NC Light program is licensed and included in the price.

Dual Speed Wire Cutting Machine Working (Cutting) Area:

• X-Axis: 2500 mm.

• Y Axis: 1200 mm.

• Wire Length: 1200 mm.

Power Usage:

• 220 VAC 50/60 Hz. , 1 kW, 10 Amps.
• 380 VAC 50/60 Hz. , 5 kW, 16 Amps.

Machine Dimensions:

• Main Case: 245cm Length X 230cm Width X 210cm Height.
• Bottom Table: 600cm Length X 125cm Width X 40cm Height.
• Weight: 600KG.

What It Can Do;

• Practical and economical solutions in construction, insulation, foam mattress sectors.

Option : Automatic Tool Path Giving / Automatic Part Placement

Thanks to the automatic tool path option, you can start your cuts (tool path) very quickly and easily.

Thanks to the Automatic Part Placement option, you can place the parts with minimum waste, give the automatic tool path and prepare your parts for cutting very quickly and easily.

For a detail information, please contact with us.
