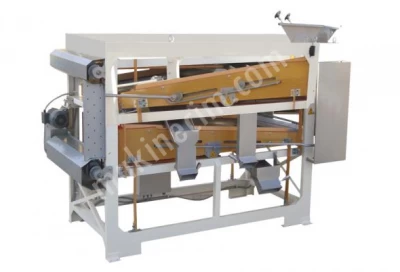

Double Deck Grading Machine

This machine enables the user to grade the product to three sizes, whether pre-cleaned or not (not necessary to clean) and or to separate the broken grains out. It can be installed before the color sorting machine for capacity enlargement. There are two standard models: fixed and mobile types.



This machine enables the user to grade the product to three sizes, whether pre-cleaned or not (not necessary to clean) and or to separate the broken grains out. It can be installed before the color sorting machine for capacity enlargement. There are two standard models: fixed and mobile types.



Screen operation is performed by shaking the product poured onto the sieve boats by an eccentric system. Brushes under the screen prevent the holes to be blocked and provides a high productivity.

By this machine three different kinds are separated.



Product Code	007/1	007/2	007/3	007/4	007/5	007/6	007/8	007/10
Product Name	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator	Calibrator
Screen No	1	2	3	4	5	6	8	10
Screen Diameters 1000x2000 mm Sieve Screen area m2	2 m2	4 m2	6 m2	8 m2	10 m2	12 m2	16 m2	20 m2
Number of Grading Options	2	3	4	5	6	7	9	11
Perfortraded Screen  Brush No	5	10	15	20	25	30	40	50
Total power	1,47 kw	2,05 kw	2,95 kw	2,25 kw	2,95 kw	2,95 kw	3,75 kw	3,75 kw
a	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	3300 mm	5470 mm	5470 mm
b	1300 mm	2000 mm	2300 mm	3050 mm	3560 mm	4100 mm	3050 mm	3500 mm
c	1850 mm	1850 mm	2050 mm	2050 mm	2050 mm	2050 mm	2050 mm	2050 mm
