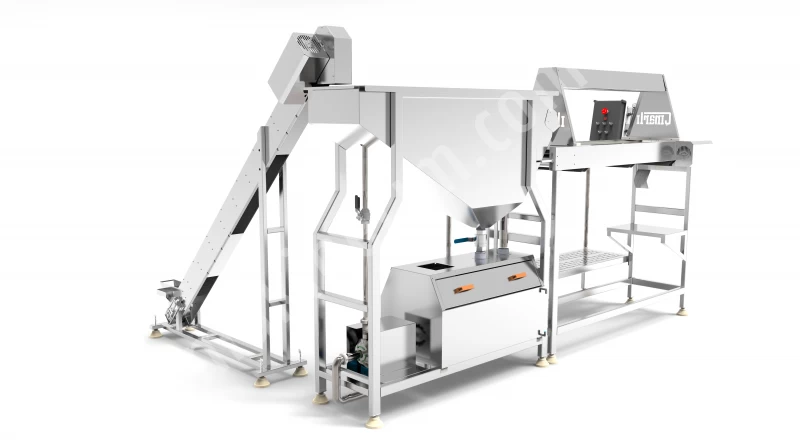

DENSIMETER SET (Separator for stoneless olives)
| Price : | Ask For Price |
| Ad Code : | M-206188 |
| Ad Type : | For Sale - New |
| Views : | 179 |
| Date Updated : | 11 Jul 2016 |
| Production Type : | Special Production |
Çınarlı Makine San. Tic. A. Ş.
Türkiye - Manisa - Akhisar
Akhisar Organize Sanayi Bölgesi 3. Cadde No: 16-18
Akhisar / Manisa / Türkiye
DENSIMETER SET (Separator for stoneless olives) Ad Description
Technical Details
Densimeter set is used to separate stonelees olives from the olives with stone by taking advantage of intensity difference. Olive is carried to the densimeter bunker from the pitting machine by an elevator. While stoneless olives stay on the surface of salted water in the bunker, the olives with stone sink bottom of the bunker. Olives in the bottom of the bunker are taken from the densimeter bunker by means of bypass (emptying) system periodically. Stoneless olives separated by this method are checked finally on the selection band. The machine is made of stainless steel completely.
FEATURES
- Ip 65 plastic control panel (Hensel)
- 380 V / 50 HZ
- Serial phase protection relay
- AISI 304L stainless steel body
- Bearings with plastic body and stainless steel housing
- Plastic based with AISI 304 stud feet
- Protection with thermic relay
- All the bands are made of PVC conforming to FDA
- Stone discharge by bypass system
- Stainless steel open vane pump
- Recirculation water filter
- Stainless steel control valves
- Waste olive section in picking band
- Upper lightening in picking band
- Lower discharge valves
- Worm gear reducer
| Optionals | Caster | - | • Convenient filling mouth to tin • Height adjustable seat |
