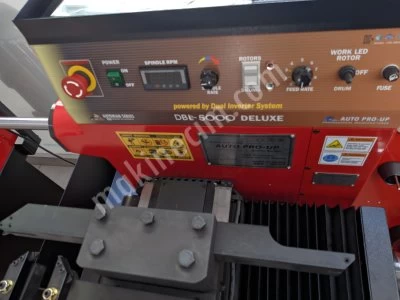

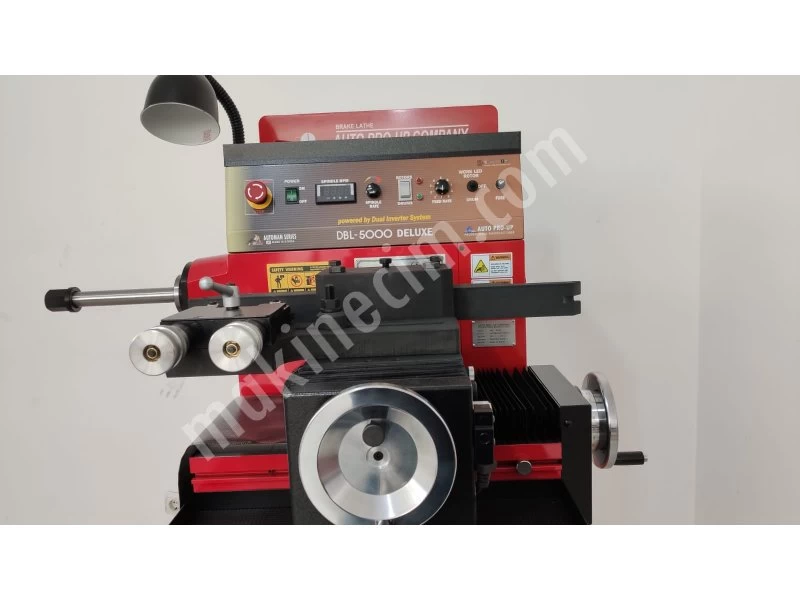

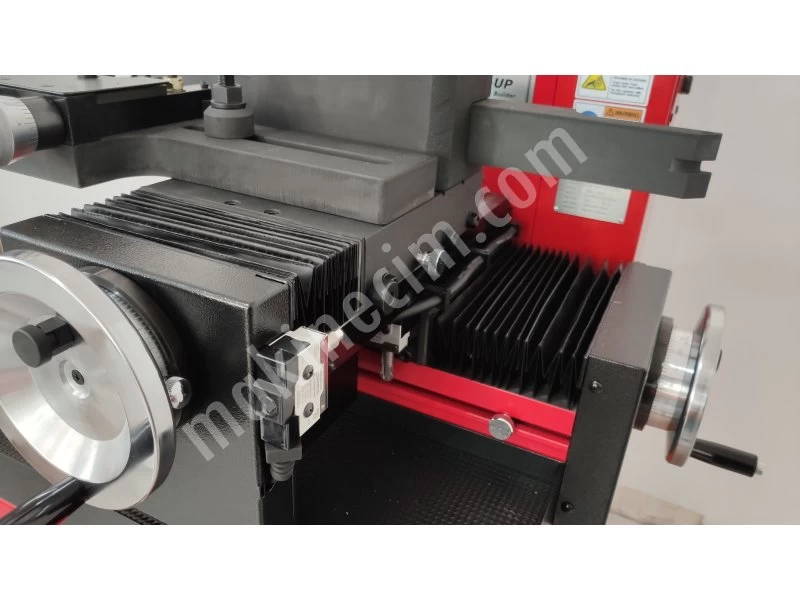

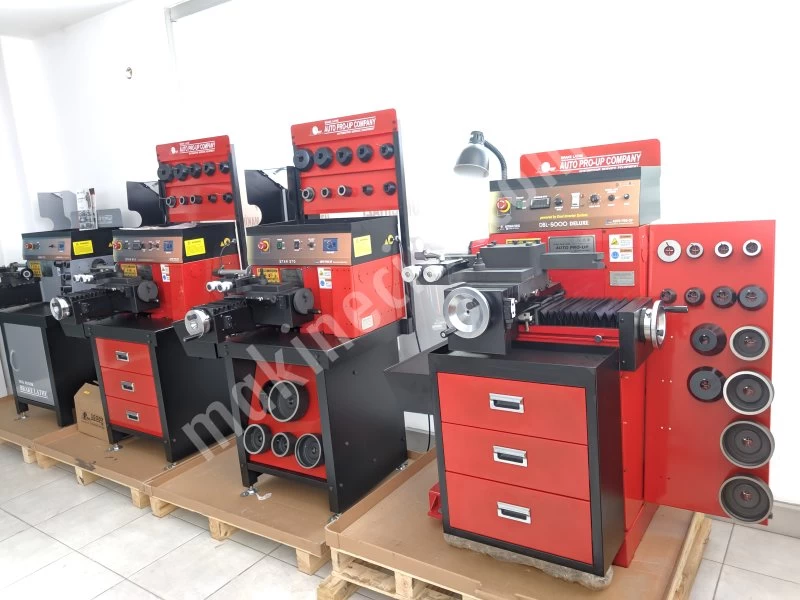

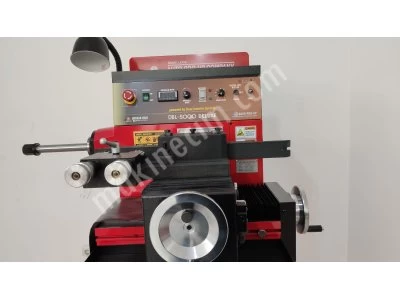

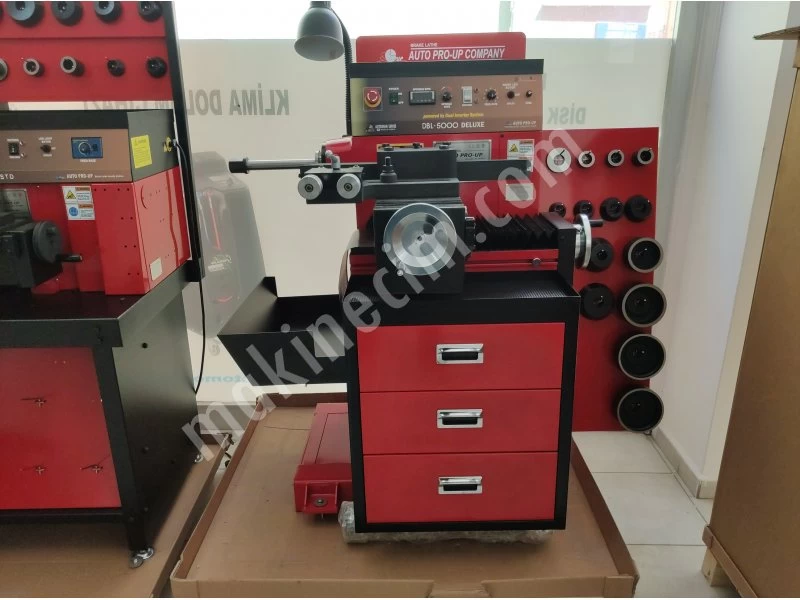

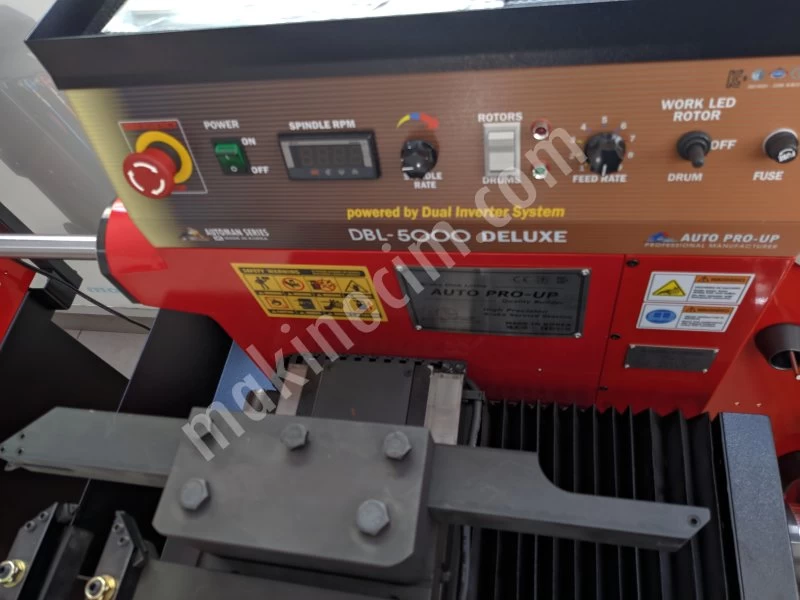

DBL-5000 DRUM DISC LATHE MACHINE
| Price : | Ask For Price |
| Ad Code : | M-171476 |
| Ad Type : | For Sale - New |
| Views : | 920 |
| Date Updated : | 14 Feb 2025 |
| Production Type : | Special Production |
Ayvaz Otomotiv
Türkiye - Samsun - Tekkeköy
Kurtuluş Mah Baki Esen Cad No 50/1 Tekkeköy Samsun
DBL-5000 DRUM DISC LATHE MACHINE Ad Description
DBL-5000
TECHNICAL SPECIFICATIONS
POWER
110-240V, 50/60 Hz 1Phase
MAIN ENGINE
1 HP 1,714 RPM 10: 1Ratio (220/380 v 3PH)
FEED MOTOR
2 Gear DC
MPH SPEED
0-120 RPM
DRUM DIAMETER
1000mm
DRUM DEPTH
360 mm
VOLANT DIAMETER
600 mm
VOLANT THICKNESS
50 mm
SPINDLE DIAMETER
Standard 30 mm
Local liquors 26 mm
Local liquors 50 mm
MACHINE NET WEIGHT
550 Kg
MAXIMUM SUPPORT WEIGHT
100 Kg
PACKAGE SIZE
950 * 980 * 1700
