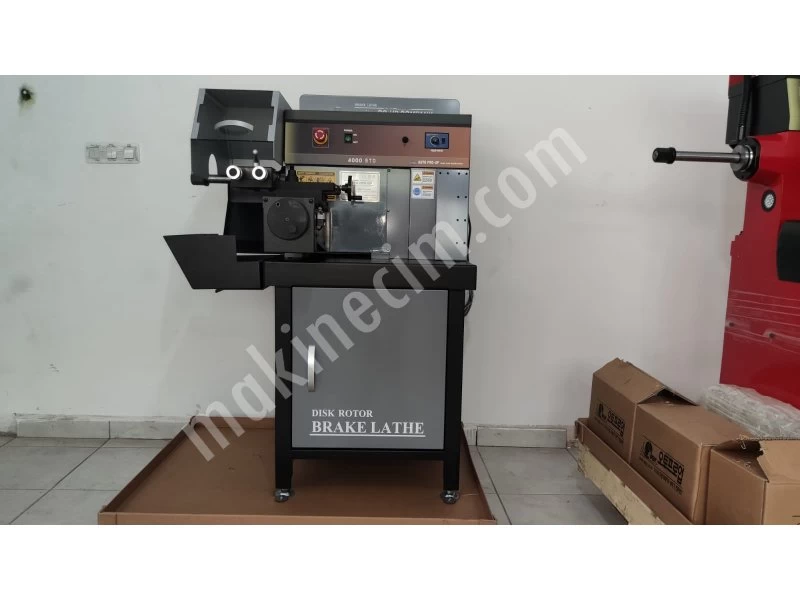

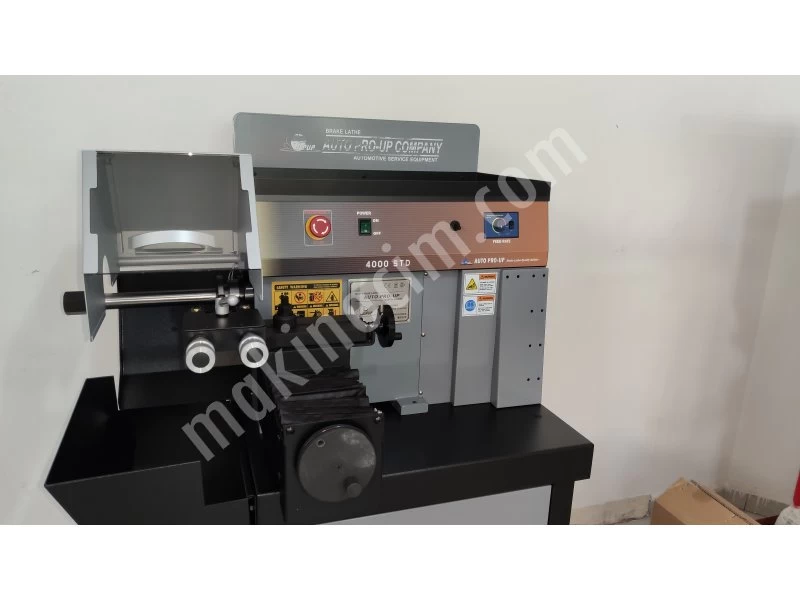

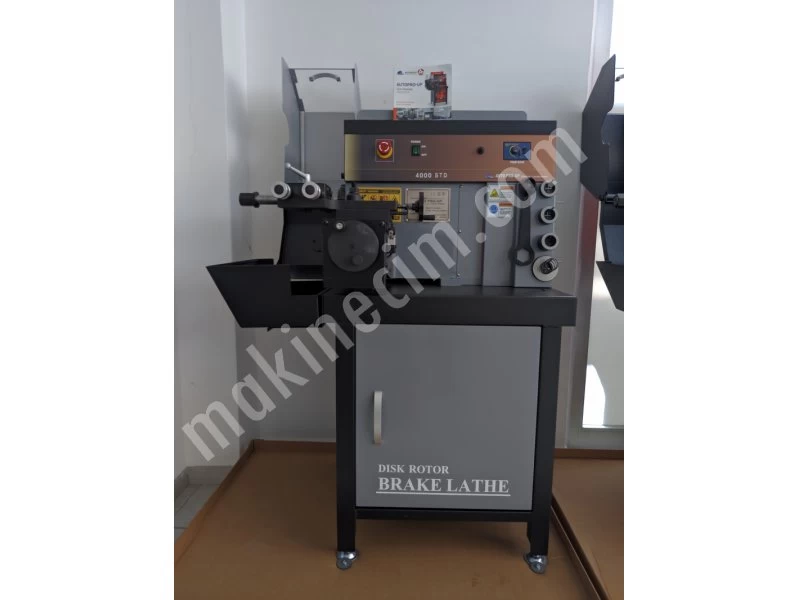

DBL-4000L DİSK LATHE MACHINE
| Price : | Ask For Price |
| Ad Code : | M-171468 |
| Ad Type : | For Sale - New |
| Views : | 333 |
| Date Updated : | 14 Feb 2025 |
| Production Type : | Special Production |
Ayvaz Otomotiv
Türkiye - Samsun - Tekkeköy
Kurtuluş Mah Baki Esen Cad No 50/1 Tekkeköy Samsun
DBL-4000L DİSK LATHE MACHINE Ad Description
DBL-4000 (L)
TECHNICAL SPECIFICATIONS
POWER
110-220V 1Phase, 50/60 Hz
MAIN ENGINE
1 HP 1,714 RPM 15: 1Ratio
FEED MOTOR
2 Gear DC
MPH SPEED
0-120 RPM
VOLANT DIAMETER
140 mm-430mm
VOLANT THICKNESS
50 mm
SPINDLE DIAMETER
Standard 30 mm
Local liquors 20 mm
Local liquors 35 mm
MAXIMUM SUPPORT WEIGHT
80 Kg
MACHINE NET WEIGHT
210 Kg
PACKAGE SIZE
950 * 980 * 1700
