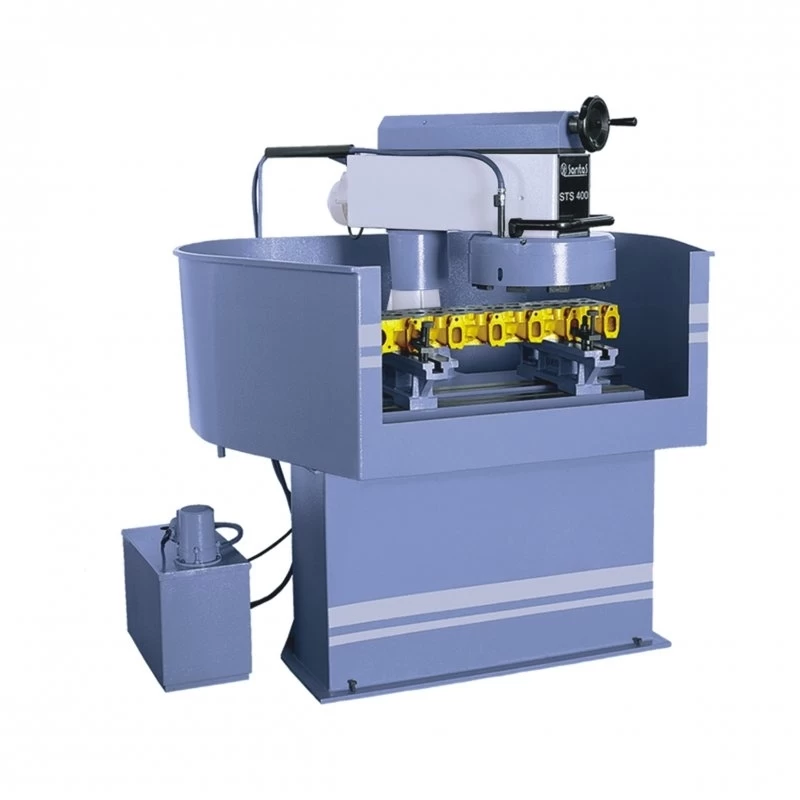

Cylinder Head Surface Grinding and Milling Machine Stş 400
Price :
Ask For Price
Ad Code :
M-177512
Ad Type :
For Sale - New
Views :
686
Date Updated :
08 Oct 2023
Production Type :
Brand
Brand
Sarıtaş Makina
Saritaş Motor Yenileme Makinalari
Türkiye - Konya - SELÇUKLU
2. ORGANİZE SANAYİ LALEHAN CAD. NO.5
SELÇUKLU/KONYA
Ad Description
|
TECHNICAL SPECIFICATIONS
|
STŞ 400
|
|
Table surface
|
850x300 mm
|
|
Minimum distance table and grinding wheel
|
140 mm
|
|
Maximum distance table and grinding wheel
|
380 mm
|
|
Maximum distance machined (tool or wheel)
|
900x180/800x220/700x250
600x280/500x320 mm |
|
Minimum distance table / tool
|
135 mm
|
|
Maximum distance table / tool
|
375 mm
|
|
Vertical spindle travel
|
240 mm
|
|
Spindle rotation speeds
|
200÷1400 r.p.m.
|
|
Cross feed speed per minute
|
50÷200 mm/1’
|
|
Distance wheel to column center line
|
400 mm
|
|
Segmental wheel to column center line
|
400 mm
|
|
Spindle motor power
|
2,2 kw
|
|
Feed motor power
|
0,37 kw
|
|
Coolant unit motor power
|
0,18 kw
|
|
STANDARD EQUIPMENTS
|
QUANTITY
|
|
STD 256 Tool holder complete with tool
|
1
|
|
STD 257 Pair of parallel support (140x470 mm)
|
2
|
|
STD 258 Cylinder head clamping plate
|
4
|
|
STD 259 Grinding wheel (80x65x58x20 mm)
|
10
|
|
STD 260 Segmental wheel diameter (Ø 400 mm)
|
1
|
|
STD 261 Grinding wheel dresser
|
1
|
|
STD 262 Grinding wheel extractor
|
1
|
|
STD 263 Coolant system
|
1
|
|
STD 264 Operating manual
|
1
|
|
OPTIONAL EQUIPMENTS
|
|
|
SR0125 Motor drive rotating table (Ø 320 mm)
|
-
|
|
SR0126 Grinding wheel (80x65x58x20 mm)
|
-
|
|
SR0127 Grinding wheel static balancer with rotating plates
|
-
|
|
DIMENSIONS
|
|
|
Length
|
1550 mm
|
|
Height
|
1200 mm
|
|
Width
|
1210 mm
|
|
|
|
|
DIMENSIONS WITH PACKING
|
|
|
Length
|
1700 mm
|
|
Height
|
1450 mm
|
|
Width
|
1350 mm
|
|
|
|
|
WEIGHTS
|
|
|
Without packing
|
600 kg
|
|
With packing
|
720 kg
|
Cylinder Head Surface Grinding, Milling Machine
