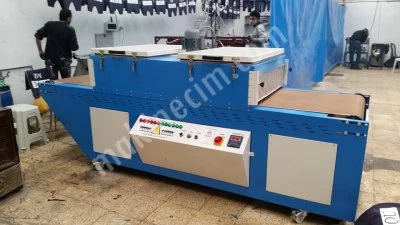

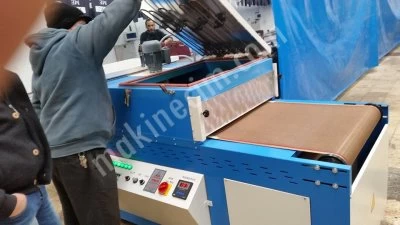

Curing Furnace

USAGE AREAS:

• FOR DRYING PURPOSE IN THE MANUFACTURING OF TRANSFER PRINTING PAPER
• SUITABLE FOR DRYING TRANSFER PRINTING PRODUCTS

EXPLANATION:

• LOWEST ELECTRICITY CONSUMPTION IN CLASS
• STANDARD 70 X 300 CM TEFLON TAPE SIZE
• THE BELT OPERATING IN THE OVEN KEEPS HEAT LOSS TO A MINIMUM
• COMPACT SMALL SPACE PERFECT DESIGN
• MINIMUM HEAT LOSS WITH HIGH DENSITY INSULATION MATERIAL ON ALL COVERS
• HEALTHY WORKING ENVIRONMENT WITHOUT EXPOSURE TO HARMFUL FUMES WITH FAN EXHAUST OUTLET
• TEMPERATURE CONTROL WITH A THERMOSTAT EVERY 1 METER
• BELT MOVEMENT WITH A MAINTENANCE-FREE THREE-PHASE GEARBOX MOTOR
• EASY SPEED ADJUSTMENT WITH DIGITAL POTENTIOMETER MOTOR DRIVER
• PREMIUM QUALITY TEFLON TAPE
• VERY EASY ADJUSTABLE TEFLON TAPE TENSION AND PARALLELITY ADJUSTMENT SYSTEM

TECHNICIAL SPECIFICATIONS:

• BAND WIDTH: 70 CM
• TAPE LENGTH: 3 METERS
• SUPPLY VOLTAGE: 400 VAC 50-60 HZ THREE-PHASE
• RESISTANCE POWER: 15 KW, EACH PHASE TO BE 5 KW
• ENGINE POWER: 0.75 KW THREE-PHASE
• EXHAUST OUTPUT: 1 X 300 MM FLUE TYPE FAN
