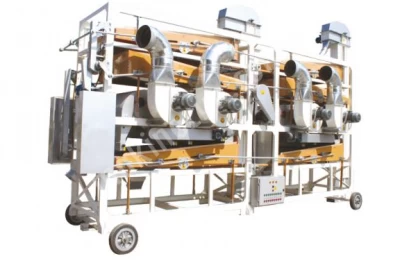

Cumin, Sunflower Seeds & Spices Screening Machine

It used for precision cleaning for products such as spices which is so difficult to remove. The work principle based on two parts. The left side of the machine makes cleaning. The right side from the first cleaning, sorting process is retake. Thanks to this feature known as a combined cleaning and sorting machine.

There are two standard models; fixed and movable type.

It used for precision cleaning for products such as spices which is so difficult to remove. The work principle based on two parts. The left side of the machine makes cleaning. The right side from the first cleaning, sorting process is retake. Thanks to this feature known as a combined cleaning and sorting machine.



There are two standard models; fixed and movable type.



Working Principle:

It works on two principles. In the first screening system the upper screen separates the broken and reuined products with vaccume till the sixth screen. The same process is repeated in the right side of the machine.

Thus, it is the most sensitive screening and cleaning machine due to passing twice the screening process.





Ürün / Product	Kapasite tn/st /Capacity tn/hr
Soya Fasülyesi Soya Beans	4-6 ton / saat 4-6 tn / hr
Nohut chickpeas	3-6 ton / saat 3-6 tn / hr
Fasulye Beans	3-6 ton / saat 3-6 tn / hr
Barbunya Kidney Beans	3-6 ton / saat 3-6 tn / hr
Bakla Vetches	4-6 ton / saat 4-6 tn / hr
Yeşil Mercimek Green Lentils	3-6 ton / saat 3-6 tn / hr
Kırmızı Mercimek Red Lentils	3-6 ton / saat 3-6 tn / hr
Buğday Wheat	4-6 ton / saat 4-6 tn / hr
Pirinç Rice	4-6 ton / saat 4-6 tn / hr
Ayçekirdeği Sunflower	1-2,5 ton / saat 1-2,5 tn / hr
Kimyon Cumin Seeds	1-2,5 ton / saat 1-2,5 tn / hr





Makine Ebatları / Dimensions
Boy/Lenght	6200
En / Widht	2100
Yükseklik/Height	4000
Makine+Elev Yüksekliği Machine+Elev Height	4000 + 4400
Makine+Elev Boy Machine+Elev Lenght	6200 + 800









Motor Sayısı Engine N	Toplam Motor Gücü Total Motor Power	Standart Gerilm Standart Volt	Opsiyonel Gerilim Optional Volt	Ağırlık Weight	Fırça Sayısı Brush No	Eleme Alanı Screen area	Titreşim Vibration
9	14	380	220-440	2600	30	12	Eksantrik Eccentric





Improved Products

Soybeans

Chickpeas

Beans

Kidney Beans

Sesame

Green Lentils

Red Lentils

Wheat

Rice

Sun Flower

Cuming Seeds

and many more
