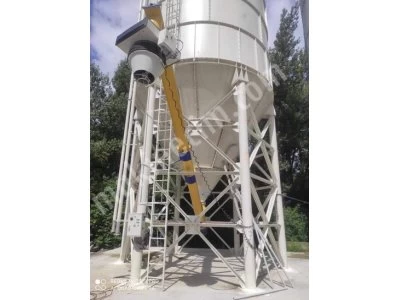

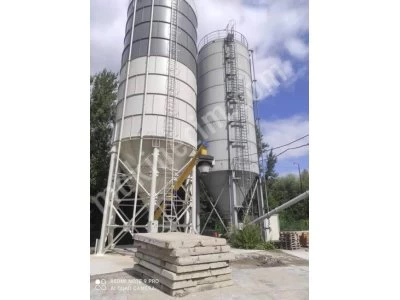

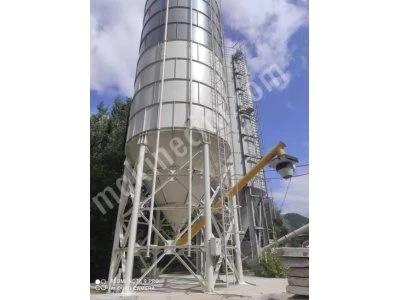

Cs-200 | 200 Ton Capacity Cement Silo

200 Ton Cement Silo For Sale - Call Us 24/7

Our CS-200 model is designed to meet the needs of your business, offering an impressive storage solution with a capacity of 200 tons. It provides a vast storage space with a height of 18,360 mm and a diameter of 4,100 mm. This silo stands out with its durable structure, weighing 14,800 kg and constructed from ST-37 steel, ensuring longevity and reliability.

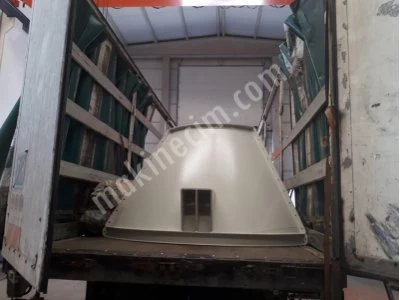

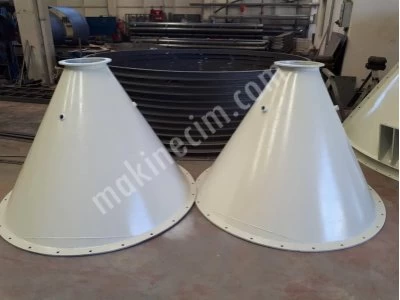

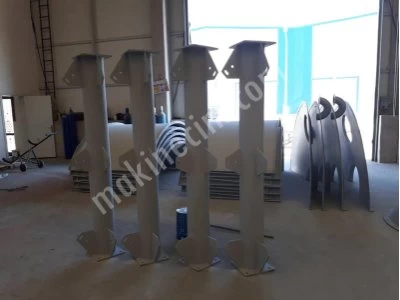

The silo legs are made from 200 x 2 mm rectangular iron and 20 mm metal plates, supported by NPL 80 mm angle iron. The conical part is guaranteed robustness with a 140 mm steel C channel and is made from ST-37, 8 mm metal plate.

The product is equipped with a 4" steel pipe extending to the silo leg as the filling pipe and a maintenance platform. Ease of use is facilitated by internal and external manholes. The silo roof, including locks, offers a complete structure. The manufacturing process is conducted according to structural analysis and approved projects, reinforcing the product's quality and safety.

Our CS-200 model is coated with one layer of anticorrosive paint and two layers of top coat epoxy paint, with a total paint thickness of 140 microns, providing superior protection against external elements. This silo is an ideal solution for optimizing your workflow while reducing long-term costs. With high-quality materials and a marvel of engineering design, the CS-200 will be a reliable component of your business.

CS-200 - 200 Ton Cement Silo Technical Specifications

• Silo Capacity: 200 tons, 153 m³ (cement density of 1.3 ton/m³)
• Silo Height: 18,360 mm
• Silo Diameter: Ø 4100 mm
• Number of Silo Legs: 4
• Silo Outlet Diameter: Ø 300 mm
• Number of Components: 150
• Silo Weight: 14,800 kg
• Silo Leg Material: 200 x 2 mm, rectangular iron
• Silo Leg Supports: NPL 80 mm angle iron
• Silo Leg Plates: 20 mm metal plate
• Conical Part Support Material: 140 mm steel c channel
• Conical Part Material: ST - 37, 8 mm metal plate
• Silo Body Material: ST - 37, 5 and 6 mm metal plate
• Silo Top Cover Material: ST - 37, 4 mm metal plate
• Filling Pipe: 4" steel pipe up to silo leg
• Internal Manhole: Available
• External Manhole: Available
• Silo Roof: Includes locks
• Maintenance Platform: Available
• Structural Analysis is conducted for silos, and manufacturing follows approved projects
• Painting: 1 layer of anticorrosive paint, 2 layers of top coat epoxy paint, total paint thickness of 140 microns
