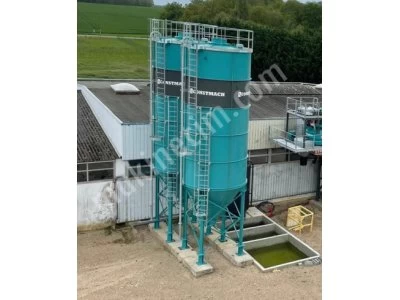

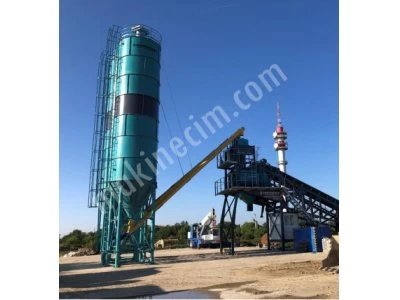

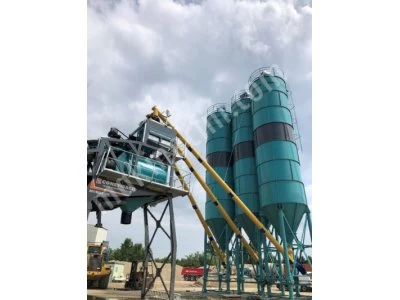

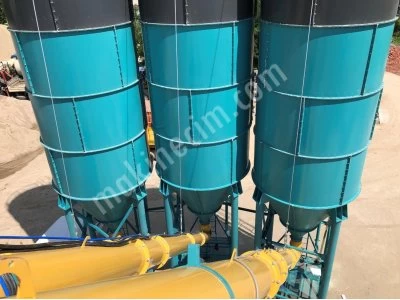

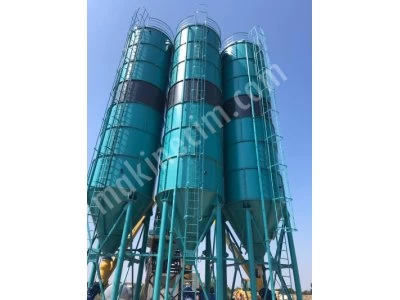

Cs-100 | 100 Ton Capacity Cement Silo

100 Ton Cement Silo For Sale - Call Us 24/7

The CS-100 cement silo stands out with its durability and high capacity structure. With a capacity of 100 tons (78 m³), it can be used safely in large-scale projects. This silo, standing on four sturdy legs, has a height of 18,920 mm and a diameter of 3,060 mm, offering a stable structure with a weight of 8,000 kg. It provides the performance you need with a Ø 300 mm outlet diameter and 120 components.

The body of the silo is made from ST-37 material using 5 mm thick metal plates, adding extra durability. All components, such as the top cover, conical part support material, and leg plates, are selected according to the highest quality standards. The leg plates made from 20 mm metal plates and the conical part supported by 100 mm steel C channel provide extra stability. Additionally, the silo roof is equipped with locks and offers easy access with a maintenance platform.

Features such as internal and external manholes ensure ease of use and maintenance access. The charging pipe is made of 4" steel pipe extending down to the silo legs. The production process is supported by structural analysis adhering to approved projects, ensuring safe and long-lasting use.

The CS-100 Cement Silo is a product that will meet your needs with its quality and reliability. Its robust structure and large capacity storage increase efficiency in your projects, offering a reliable solution.

CS-100 - 100 Ton Cement Silo Technical Specifications

• Silo Capacity: 100 tons, 78 m³
• Silo Height: 18,920 mm
• Silo Diameter: Ø 3060 mm
• Number of Silo Legs: 4
• Silo Outlet Diameter: Ø 300 mm
• Number of Components: 120
• Silo Weight: 8,000 kg
• Silo Leg Material: 219x5 mm, charging pipe
• Silo Leg Supports: NPL 80 mm angle iron
• Silo Leg Plates: 20 mm metal plate
• Conical Part Support Material: 100 mm steel C channel
• Conical Part Material: ST - 37 - 6 mm metal plate
• Silo Body Material: ST - 37 - 5 mm metal plate
• Silo Top Cover Material: ST - 37 - 4 mm metal plate
• Charging Pipe: 4" steel pipe to silo leg
• Internal Manhole: Available
• External Manhole: Available
• Silo Roof: Includes locks
• Maintenance Platform: Available
