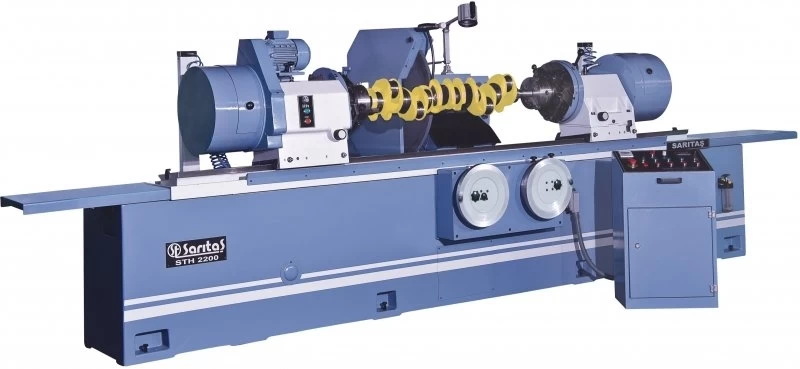

Crankshaft Grinding Machine Sth 2200
| Price : | Ask For Price |
| Ad Code : | M-177501 |
| Ad Type : | For Sale - New |
| Views : | 761 |
| Date Updated : | 08 Oct 2023 |
| Production Type : | Brand |
| Brand : | Sarıtaş Makina |
Saritaş Motor Yenileme Makinalari
Türkiye - Konya - SELÇUKLU
2. ORGANİZE SANAYİ LALEHAN CAD. NO.5
SELÇUKLU/KONYA
Crankshaft Grinding Machine Sth 2200 Ad Description
|
TECHNICAL SPECIFICATIONS
|
STH 2200
|
|
|
Maximum distance between centers
|
mm
|
2250
|
|
Maximum distance between self centering chucks
|
mm
|
2200
|
|
Maximum weight admitted on the centers
|
kg
|
300
|
|
Maximum weight admitted with steady rest
|
kg
|
600
|
|
Height of centers over table
|
mm
|
300
|
|
Maximum diameter admitted on steady rest
|
mm
|
130
|
|
Maximum diameter of grinding wheel
|
mm
|
810
|
|
Maximum grinding diameter with new wheel
|
mm
|
200
|
|
Maximum head offset
|
mm
|
140
|
|
Minimum grinding wheel thickness
|
mm
|
18
|
|
Maximum grinding wheel thickness
|
mm
|
60
|
|
Diameter of the chucks
|
mm
|
200
|
|
Workheads rotation speeds (stepless)
|
rpm
|
10÷100
|
|
Maximum diameter admitted on table
|
mm
|
600
|
|
Maximum quill traverse on tailstock
|
mm
|
25
|
|
Air pressure for heads displacement
|
bar
|
8
|
|
Wheelhead fast hydraulic feed
|
mm
|
200
|
|
Wheelhead manual centesimal feed
|
mm
|
150
|
|
Wheelhead manual feed for hand wheel turn
|
mm
|
1
|
|
Wheelhead impulse feed
|
mm
|
0,005
|
|
Table feed per turn of hand wheel
|
mm
|
5
|
|
Fast automatic table traverse speed
|
mm/1'
|
5000
|
|
Grinding wheel motor power
|
kw
|
7,5
|
|
Headstock motor power
|
kw
|
1,5
|
|
Hydraulic unit motor power
|
kw
|
1,5
|
|
Table displacement motor power
|
kw
|
0,75
|
|
Coolant unit motor power
|
kw
|
0,18
|
|
STANDARD EQUIPMENTS
|
QUANTITY
|
|
STD 133 Steady rest capacity diameter 30÷160 mm thickness
|
2
|
|
STD 134 Grinding wheel face and radius dresser with diamond
|
1
|
|
STD 135 Shaft centering device with dial gauge
|
1
|
|
STD 136 Crank pins arm measuring device
|
1
|
|
STD 137 Self centering chuck diameter 200 mm
|
2
|
|
STD 138 Head displacement checking device with dial gauge
|
1
|
|
STD 139 Grinding wheel diameter 810x203x24 mm
|
1
|
|
STD 140 Pair of flanges for grinding wheel
|
2
|
|
STD 141 Grinding wheel static balancing shaft
|
1
|
|
STD 142 Grinding wheel extractor and bushing threaded hub protection
|
1
|
|
STD 143 Wheelhead and table slide ways lubrication system
|
-
|
|
STD 144 Hydraulic system
|
-
|
|
STD 145 Pneumatic system
|
-
|
|
STD 146 Coolant system
|
-
|
|
STD 147 Service kit
|
-
|
|
STD 148 Operating manual
|
-
|
|
EXTRA EQUIPMENTS
|
QUANTITY
|
|
SR0054 Dual scale electronic dial gauge for centesimal diameter check.
|
-
|
|
SR0055 Static grinding wheel balancer with rotating plates
|
-
|
|
SR0056 Portable super finisher with grinding belt
|
-
|
|
SR0057 Grinding belt for superfinisher 20 mm thickness
|
-
|
|
SR0058 Grinding belt for superfinisher 25 mm thickness
|
-
|
|
SR0059 Grinding belt for superfinisher 30 mm thickness
|
-
|
|
SR0060 Tapered center with removing bush (require 2 pcs.)
|
-
|
|
SR0061 Sheared center with removing bush
|
-
|
|
SR0062 Driving dog capacity diameter
|
-
|
|
SR0063 Cathplate (20÷75mm) (require 2 pcs.)
|
-
|
|
SR0064 Cathplate (70÷140mm) (require 2 pcs.)
|
-
|
|
SR0065 Grinding wheel diameter 810x203x18 mm
|
-
|
|
SR0066 Grinding wheel diameter 810x203x20 mm
|
-
|
|
SR0067 Grinding wheel diameter 810x203x22 mm
|
-
|
|
SR0068 Grinding wheel diameter 810x203x26 mm
|
-
|
|
SR0069 Grinding wheel diameter 810x203x28 mm
|
-
|
|
SR0070 Grinding wheel diameter 810x203x30 mm
|
-
|
|
SR0071 Grinding wheel diameter 810x203x32 mm
|
-
|
|
SR0072 Grinding wheel diameter 810x203x34 mm
|
-
|
|
SR0073 Grinding wheel diameter 810x203x36 mm
|
-
|
|
SR0074 Grinding wheel diameter 810x203x38 mm
|
-
|
|
SR0075 Grinding wheel diameter 810x203x40 mm
|
-
|
|
DIMENSIONS
|
2200
|
|
|
Length
|
mm
|
4400
|
|
Height
|
mm
|
1600
|
|
Width
|
mm
|
1900
|
|
|
||
|
DIMENSIONS WITH PACKING
|
||
|
Length
|
mm
|
4550
|
|
Height
|
mm
|
1810
|
|
Width
|
mm
|
2050
|
|
|
||
|
WEIGHTS
|
||
|
Without packing
|
kg
|
5300
|
|
With packing
|
kg
|
6300
|
