COUPLING HEATING DEVICE

FACTORY MAINTENANCE SERVICES,

TO REMOVE THE TIGHTENING COUPLING, THE SHAFT,

DO NOT WORK WITH OXYGEN TILL EVENING!

REMOVE-AL

WITH MAX. REMOVE THE SHAFT AND THE SIZE YOU WANT IN FIFTEEN MINUTES.

SAVE TIME,

PREVENT PRODUCTION AND LOSS OF JOB!

www.indmakinasanayi.com

http://www.induksiyonmakinalari.com

With 40KW Air Cooled Induction Machine and Flexible Induction Heating Cable, Coupling Removal, Bearing Removal, Shaft Removal, Tight Roller Removal, Pre-Welding and Post-Welding Stress Relief Operations Can Be Done.

PURPOSE OF USAGE:

40KW air cooled induction machine and Flexible induction heating cable wrapped in different outer diameters-bearing-cords or special inductors made according to workpiece can be easily removed by heating. TEMPERATURE MEASUREMENT CAN BE MADE WITH A THERMOCOUPLE AT CERTAIN POINTS DURING VOLTAGE RELIEF AND THE TEMPERATURE-TIME GRAPH CAN BE REPORTED.

TECHNICIAL SPECIFICATIONS:

-Output Power: 40KW

-Output Frequency: 15-25KHz

-Air Cooled / Fan

-380V +- 10% , 50/60Hz

-Temperature Control Unit, which can be set to the desired temperature,

-Min.400°C High Temperature Resistant, Flexible Induction Heating Cable – 40 meters

-Optional: Plug-in Inductor or Inductors (optional) made according to the dimensions of the continuously used workpieces according to the customer's request.

-High Temperature Ceramic Fiber Insulation Material For Cable Protection

-INDUCTION OUTPUT POWER: 40KW

-OUTPUT POWER CAN BE ADJUSTED TO REMOVE WORKPIECES SUCH AS BEARINGS OR COUPLING WITH DIFFERENT OUTER DIAMETERS, BY INDUCTION HEATING,

-INDUCTION HEATING POWER THAT CAN BE CONTROLLED ACCORDING TO THE WORKPIECE SIZE FROM THE FRONT PANEL,

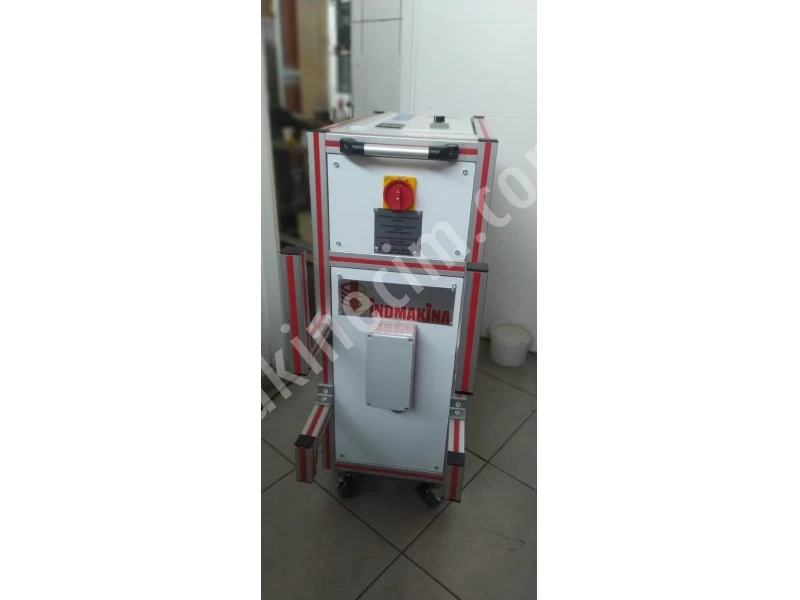

-TO WORK THE INDUCTION MACHINE, THE FRONT PANEL HAS MAIN SWITCH FOR ENERGY ON-OFF, POWER ADJUSTMENT BUTTON, TEMPERATURE CONTROL UNIT.

-40KW AIR COOLED INDUCTION MACHINE WITH BRAKE-WHEELED MOBILE UNIT WHERE THE MACHINE, FLEXIBLE INDUCTION CABLE AND INDUCTORS CAN BE MOVED TO THE WORKPIECE TO BE REMOVED or ASSEMBLED.

-AIR-COOLED FLEXIBLE INDUCTION HEATING CABLE OR WITH PLUG-INDUCTION, INDUCTION MACHINE INSTALLATION-COMMITMENT-START AND DELIVERY-TRAINING, SERVICE AND WARRANTY SERVICES OUR COMPANY.
