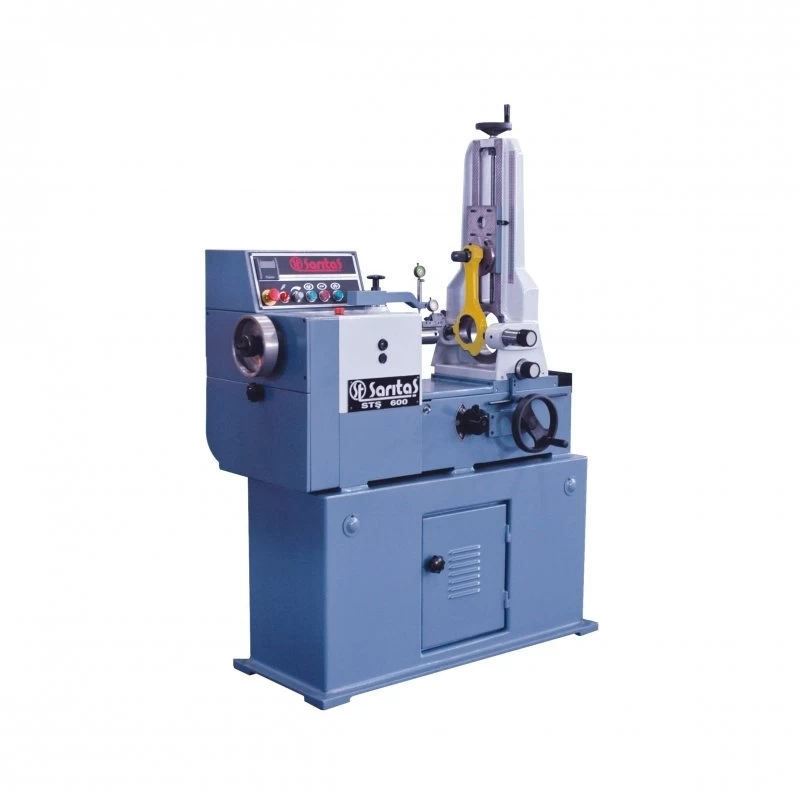

Connecting Rods Boring Machine Stş 600

Ad Details Ad Owner Ad Description
Price : Ask For Price
Ad Code : M-177516
Ad Type : For Sale - New
Views : 495
Date Updated : 08 Oct 2023
Production Type : Brand
Brand : Sarıtaş Makina

Saritaş Motor Yenileme Makinalari

Türkiye - Konya - SELÇUKLU
2. ORGANİZE SANAYİ LALEHAN CAD. NO.5 SELÇUKLU/KONYA

Connecting Rods Boring Machine Stş 600 Ad Description

TECHNICAL SPECIFICATIONSMinimum conrod center distanceMaximum conrod center distanceMinimum boring diameterMaximum boring diameterDistance between spindle and tableSpindle rotation Speeds (Digital display)Automatic table feed speedsMaximum conrod carriage travelMaximum traverse travel of tableMotor power
STŞ 600
85 mm
600 mm
15 mm
150 mm
185 mm
0 ÷ 1300 r.p.m.
0.06 ÷ 0.12 r.p.m/rev
300 mm
25 mm
1,5 kw

STANDARD EQUIPMENTSSTD 315 Centering deviceSTD 316 Tool setting armSTD 317 Tool setting device with dial gaugeSTD 318 Tool setting device for small diametersSTD 319 Boring spindle range (14-29 mm)STD 320 Boring spindle range (38 mm)STD 321 Boring spindle range (59 mm)STD 322 Expanding arbor capacity (17mm - 30mm)STD 323 Expanding arbor capacity (30mm - 60mm)STD 324 Expanding arbor capacity (40mm - 90mm)STD 325 Expanding arbor capacity (48mm - 100mm)STD 326 Expanding arbor capacity (55mm - 115mm)STD 327 Clamping pinsSTD 328 Lubricating pumpSTD 329 Operating manual
QUANTITY
1
1
1
1
1
1
1
1
1
1
1
1
13
1
1
OPTIONAL EQUIPMENTSSR0151 Set of centering rough conesSR0152 Con-Rod alignment checking fixtureSR0153 Tool setting device complete with micrometer

1 set
1
1
DIMENSIONSLengthHeightWidth  DIMENSIONS WITH PACKINGLengthHeightWidth  WEIGHTSWithout packingWith packing

1280 mm
1830 mm
760 mm


1450 mm
2000 mm
900 mm


650 kg
750 kg
