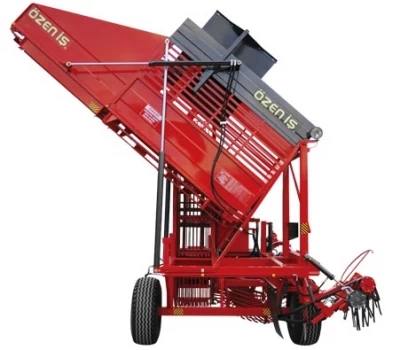

Combine Sugar Beet Harvester Machine
| Price : | Ask For Price |
| Ad Code : | M-2741 |
| Ad Type : | For Sale - New |
| Views : | 22690 |
| Date Updated : | 21 Sep 2024 |
| Production Type : | Special Production |
Özen İş Tarım Makineleri
Combine Sugar Beet Harvester Machine Ad Description
It operates by being mounted on the tractor's drawbar and powered by the tractor's PTO shaft. Our self-lubricating machine requires no additional power from the tractor other than the PTO shaft and a 12-volt battery.
This single-row harvester combines the sugar beet leaf cutting, topping, harvesting, cleaning, storage, and unloading operations. Its crank-type vibrating jaw removes the sugar beet from the soil as cleanly as if it were harvested by hand, without breaking or damaging it.
Except for the elevator unit and the star drum, all units of our machine operate with a hydraulic system.
Thanks to its electronic-hydraulic control, it automatically adjusts the beet's harvesting range and harvesting height.
Its tank, which can hold a net of 2.5 tons and reach a height of 430 cm, allows for easy and quick loading and placing operations.
*Our machine is located in Konya Selçuk University, Faculty of Agriculture, holds an Experiment Report.
|
TECHNICAL SPECIFICATIONS
|
|
|
Height
|
3320 mm.
|
|
Width
|
3250 mm.
|
|
Length
|
4300mm
|
|
Weight
|
2600 kg
|
|
Between Two Wheels
|
Min:2025 / Max:2250 mm
|
|
Loading Height
|
4250mm
|
|
Tire Size
|
12.5 /80 – 15.3 14 times
|
|
PTO Shaft Speed
|
540 rpm
|
|
Walking Speed
|
2, 3, and 4 Slow Gears
|
|
Work Capacity
|
1.8 -2.3. Decare / Hour
|
|
Head Cutting System
|
Spring-Pressed Comb
|
|
2nd Row Preparation System
|
Double Cleaning Spring
|
|
Color
|
Red
|
