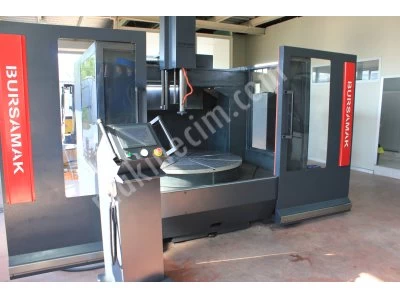

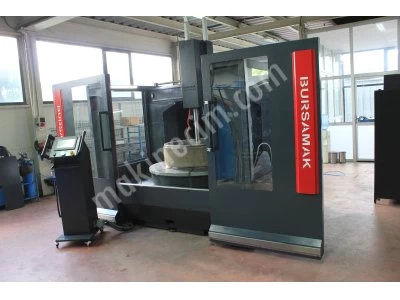

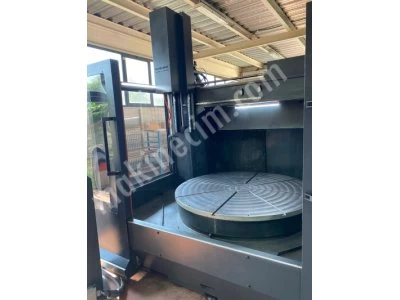

Cnc Vertical Grinding Machine
| Price : | 79.000 € |
| Ad Code : | M-426497 |
| Ad Type : | For Sale - New |
| Views : | 313 |
| Date Updated : | 18 Jun 2026 |
| Production Type : | Brand |
| Brand : | Bursamak |
| Model : | VGM750 |
| Production Year : | 2026 |
Bursamak Makina
Türkiye - Bursa - Nilüfer
Yaylacık Mh. 44.sk. No:13
Cnc Vertical Grinding Machine Ad Description
| CNC VERTICAL GRINDING MACHINE | |||
| MODEL | VGM750 | VGM1100 | VGM1500 |
| Table Diameter | 750 mm. | 1100 mm. | 1500 mm. |
| X Movement | 590 mm. | 760 mm. | 960 mm. |
| Z Movement | 300 mm. | 450 mm. | 600 mm. |
| Maximum Workpiece Diameter | 800 mm. | 1150 mm. | 1550 mm. |
| Maximum Workpiece Height | 285 mm. | 435 mm. | 585 mm. |
| Front Door Opening | 800 mm. | 1150 mm. | 1550 mm. |
| Maximum Workpiece Weight | 500 kg. | 750 kg. | 1000 kg. |
| Machine Weight | 3000 kg. | 3800 kg. | 4500 kg. |
| Total Power | 8 kW | 10 kW | 13 kW |
| Machine Dimensions (W X L X H) | 180cm X 165cm X 250cm | 210cm X 180cm X 270cm | 250cm X 200cm X 290cm |
| Usage Area (W X L X H) | 260cm X 260cm X 260cm | 330cm X 280cm X 280cm | 400cm X 300cm X 300cm |
| Coolant Tank Volume | 80 liter | 100 liter | 120 liter |
| Grinder Speed | 3000 rpm | ||
| Table Speed | 100 rpm | ||
| Coolant Flow Rate | 50 liter/minute | ||
| Grinder Sharpening | Available | ||
| Grinder Disc Sizes | The desired grinder can be connected with the Veldon Mandrel. | ||
| Axis Movements | Precise servo controlled | ||
| Grinder and Table Control | Precise speed adjustment from the control unit | ||
| Grinder and Table Rotation Direction | Automatic according to internal external grinding | ||
| Automatic Lubrication | Available | ||
| Spindle Cooling | Available | ||
| Control Unit | Special fully automatic control unit | ||

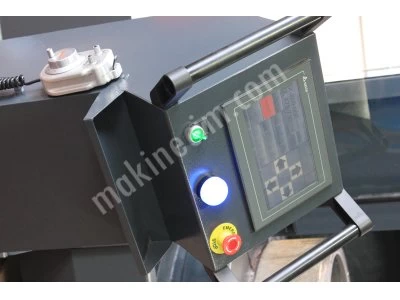

| Control Panel | 10.1" Touch panel | ||
| Handwheel | 0.1 / 0.01 / 0.001mm | ||
| Operating Modes | Handwhell / Jog / Automatic | ||
| Indoor Lighting | Available |
