Classic Semi-Cylindrical Heating Boiler Yks
| Price : | Ask For Price |
| Ad Code : | M-157463 |
| Ad Type : | For Sale - New |
| Views : | 6134 |
| Date Updated : | 14 Nov 2025 |
| Production Type : | Brand |
| Brand : | AKTES Pazarlama |
| Production Year : | 2025 |
Aktes Pazarlama
Türkiye - Adıyaman - merkez
HOCAÖMER MAH.GÖLBAŞI CAD NO 30 KAT 2
MERKEZ / ADIYAMAN
Classic Semi-Cylindrical Heating Boiler Yks Ad Description

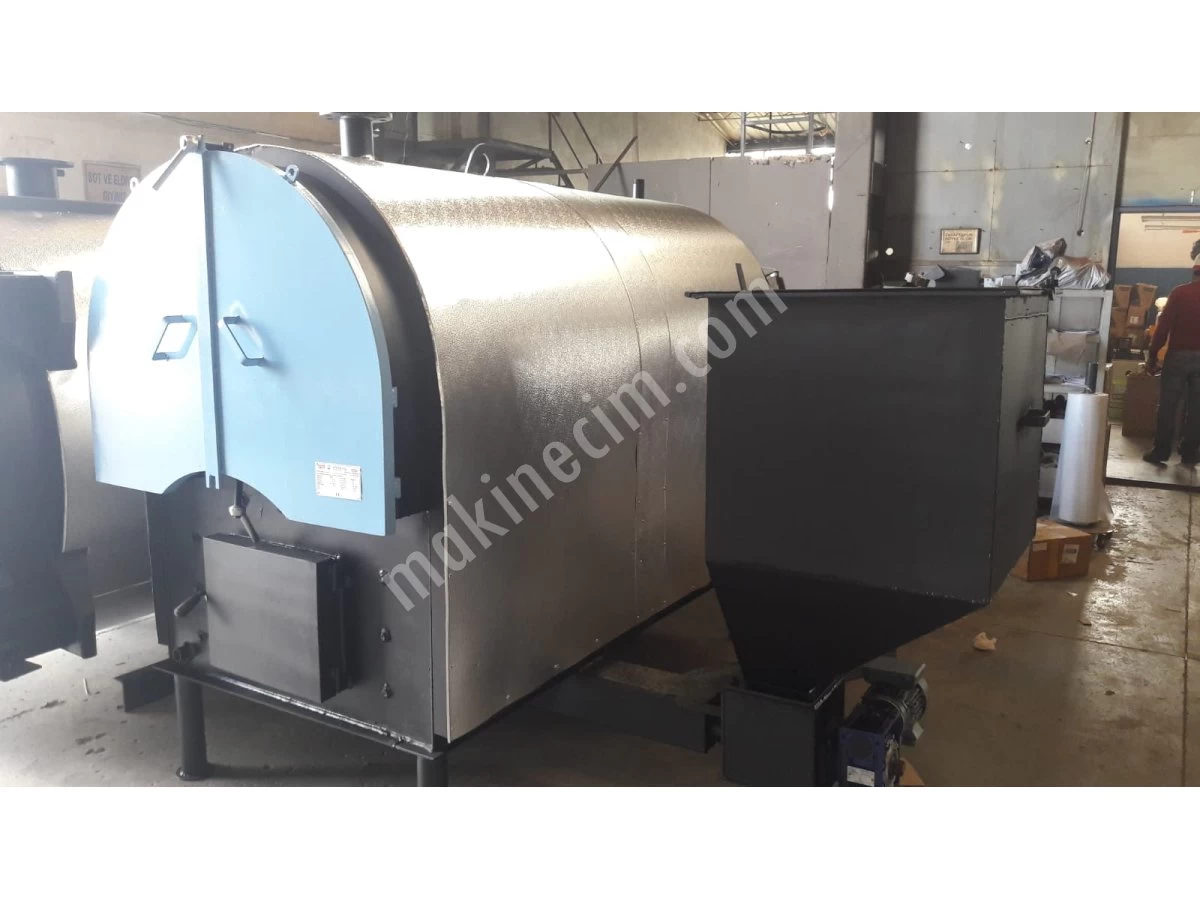

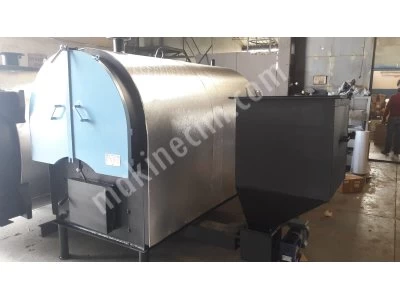

YKS Coal-Fired Semi-Cylindrical Heating Boiler
YKS Type, Solid Fuel, Coal-Fired Semi-Cylindrical Three-Pass Hot Water Boiler
Capacity Range: 60,000 – 600,000 Kcal/h
- High efficiency even when using low-calorific coal.
- Designed with a three-pass system.
- Suitable for stoker systems.
- Efficiency value certified by TSE: 80%.
YKS Type Solid Fuel, Coal-Fired Three-Pass Hot Water Boiler Technical Data Table
| Code | Thermal Power | L (mm) | D (mm) | H (mm) | ØD (mm) | Flow/Return Connection (DN) | Flow Safety (DN) | Return Safety (DN) | Approx. Weight | |
| kcal/h | kW | (kg) | ||||||||
| YKS60 | 60,000 | 70 | 1650 | 810 | 1150 | 200 | 50 | 32 | 20 | 720 |
| YKS90 | 90,000 | 105 | 1665 | 970 | 1340 | 200 | 50 | 32 | 25 | 960 |
| YKS120 | 120,000 | 140 | 1890 | 1010 | 1390 | 250 | 65 | 40 | 25 | 1190 |
| YKS150 | 150,000 | 174 | 1940 | 1110 | 1500 | 300 | 65 | 40 | 32 | 1455 |
| YKS180 | 180,000 | 209 | 2140 | 1210 | 1550 | 350 | 65 | 40 | 32 | 1700 |
| YKS210 | 210,000 | 244 | 2290 | 1210 | 1640 | 350 | 80 | 40 | 32 | 1900 |
| YKS240 | 240,000 | 279 | 2290 | 1310 | 1710 | 350 | 80 | 40 | 32 | 2090 |
| YKS270 | 270,000 | 314 | 2400 | 1310 | 1720 | 400 | 80 | 40 | 32 | 2290 |
| YKS300 | 300,000 | 348 | 2690 | 1350 | 1780 | 400 | 100 | 50 | 40 | 2580 |
| YKS330 | 330,000 | 383 | 2690 | 1390 | 1840 | 450 | 100 | 50 | 40 | 2730 |
| YKS360 | 360,000 | 419 | 2920 | 1390 | 1840 | 450 | 100 | 50 | 40 | 2980 |
| YKS390 | 390,000 | 453 | 2960 | 1430 | 1920 | 450 | 100 | 50 | 40 | 3140 |
| YKS420 | 420,000 | 488 | 3000 | 1430 | 1920 | 450 | 100 | 50 | 40 | 3265 |
| YKS450 | 450,000 | 523 | 3000 | 1490 | 1980 | 450 | 100 | 50 | 40 | 3415 |
| YKS480 | 480,000 | 558 | 3120 | 1510 | 2020 | 500 | 100 | 50 | 40 | 3690 |
| YKS510 | 510,000 | 593 | 3350 | 1510 | 2070 | 500 | 125 | 50 | 40 | 3920 |
| YKS540 | 540,000 | 628 | 3350 | 1560 | 2070 | 500 | 125 | 50 | 40 | 4080 |
| YKS600 | 600,000 | 698 | 3500 | 1610 | 2070 | 500 | 125 | 65 | 50 | 4430 |
| The values in the table may vary by ±5%. We reserve the right to make changes to dimensions and models. Our company cannot be held responsible for printing errors in measurements. | ||||||||||
