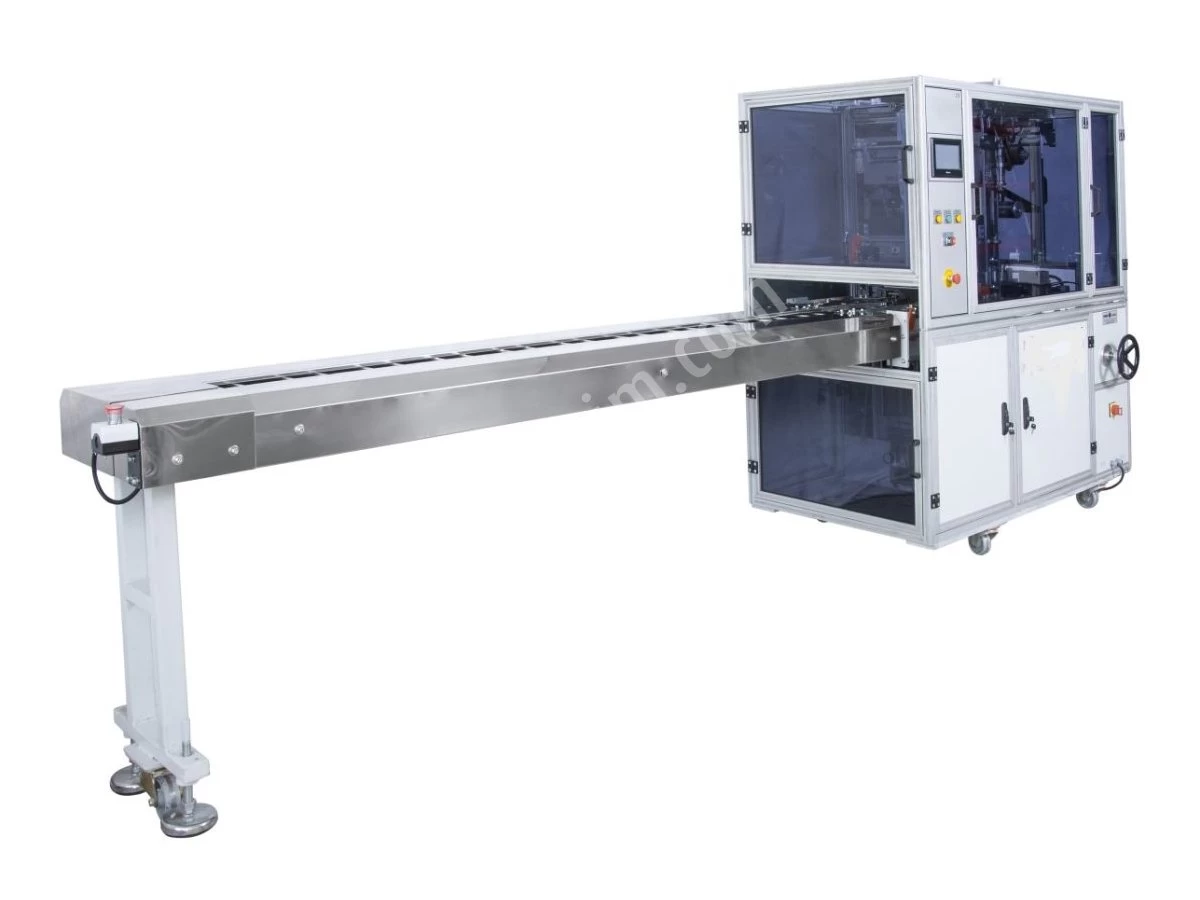

The Chocolate Tablet and Bar Packaging Machine is expertly designed for wrapping small to medium-sized square and rectangular boxes, either individually or in rows, in an envelope-style package. This automatic packaging machine features an encoder system PLC with a user-friendly touch screen, making mold changes straightforward while offering operator-friendly efficiency. Feeding can be done manually or automatically based on the production line requirements, and for easy unwrapping, an opening tape strip can be added to the outer foil of the boxes. Optionally, the machine can be equipped with a photocell system and date coding device when using colored or printed exterior foils.
|
Machine Dimensions |
H190 x W100 x L430 cm |
|
Weight |
950 Kg / 1.100 Kg |
|
Feeding Belt Dimensions |
H90-100 x W25-30 x L140-150 cm |
|
Power |
3.5 kW, 380/400 VAC 3 Phase 50/60 Hz. |
|
Air Consumption |
6 bar / min |
|
Noise Level |
70-80 Decibel |
|
Capacity Per Minute |
20-40 depending on product size |
|
Package Dimensions |
-
Length (A): Min: 50mm / Max: 320mm
-
Width (B): Min: 30mm / Max: 120mm
-
Height (C): Min: 20mm / Max: 80mm
-
OPP, BOPP, PVC Length: Min: 110mm / Max: 420mm
|
