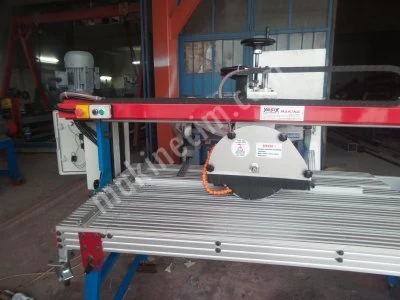

Ceramic Granite Marble Cutting Machine

YMHO-1300-300 AUTOMATIC GRANITE, CERAMIC, FLAT AND ANGLE WATER FOR MARBLE CUTTING MACHINE (0-45 DEGREES) (Available types) (automatic)



With our expertise and knowledge in the industry for 10 years with our quality and appropriate types of aqueous cutting machine to be able to cater for all budgets ...



wheelchair Portable folding legs is offered in all our timing belt as standard semi-automatic cutting machine advances, strong and lightweight aluminum chassis, hardened guideways main traits that distinguish from other machines in the industry.



Each size is available in our production.

If required it can be automated.

Please contact us.



Technical specifications



Ability to work with 220 volts or 380 volts.



Machine Type: YMHO-1300-300



Straight cutting length: 1300mm



Straight cutting thickness: 100mm



45 ° Angled cutting length: 1300mm



45 ° Angled cutting thickness: 55mm



Cutting Motor Power: 2.2kw



Gear motor power: 0.37kW



Cutting Engine Speed: 2800dev / minutes



Water Pump: 0.37 Kw



Cutting Progress: You can easily adjust the speed setting through the pot.



It makes speed automatic cutting set when pressing the start button rotates backward max speed.



 longer cutting life of the diamond cutting discs with cooling system



Water Consumption: Consumption of water is Closed Circuit Work can be ignored.



rail cars for too long and delicate work spaces because it is induction hardened



Cutting disc diameter of 300mm - 350mm 60mm core diameter diamond cutters.



45 ° angled cut



resting easy material for cutting continuously adjustable miter cuttings of



Foldable feet long



motor protection switch to prevent the engine combustion



cutting discs up and down movement system



çap300mmx60mm granite ceramic socket diamond cutting disc is included in the price ..



Strong and lightweight aluminum chassis



With easy transport Wheel little feet



Service and spare parts services.



professional and appropriate type of manufacturing is done in all sizes aqueous cutting machine.



YOU CAN REACH ALL MODELS us to our WEB SITE.



Yasir MACHINERY INDUSTRY. TIC. LTD. Sti.



Please ask for the availability of product delivery time



KDV is not included in our prices
