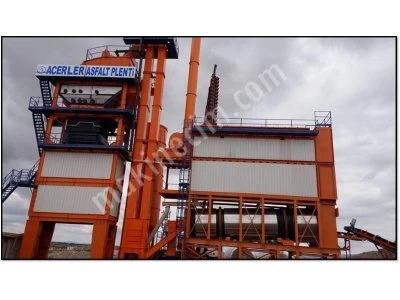

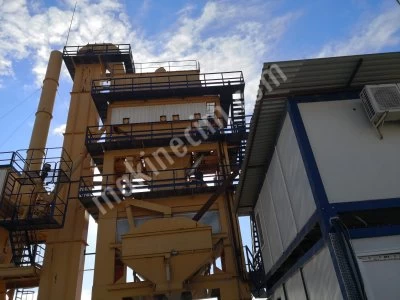

Batch And Mobile Asphalt Plant
TTC can produce fixed asphalt plants with a capacity of 80-320 t / h. TTC asphalt plants are able to meet the demands of our customers with their models in various capacities, quality and economic operating costs, after sales support.
Advantages:
– Easy Maintenance
– 24/7 after sales asphalt plant technical support
– Long-lasting wear parts
– Operator friendly automation system (multi language support)
– Easy disassembly and installation.
– Asphalt plant design suitable for different asphalt productions.
Asphalt Plant Equipment Features:
Cold feeding bunkers store the materials of different sizes and transfer them to the system according to the product recipe. It is the feeding equipment of asphalt plant.
Cold Feed Bunker Features;
– TTC asphalt plants have functional design with cold feed bunkers, bolted parts. Easy to install.
– Thanks to the cold feeding bunkers, high strength silo body and twisted body, no deformation occurs under load.
– Product feeding can be done precisely thanks to frequency controlled dosing conveyors.

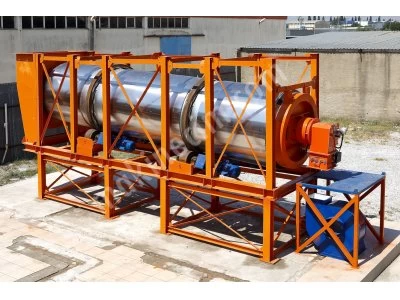

Dryer
TTC Asphalt Plant dryer creates maximum heat transfer surface thanks to its special wing designs. Provides the removal of aggregate moisture with minimum fuel consumption and heats to the desired temperature.
Dryer Features;
– TTC fixed asphalt plants have steel forged rings for high strength and long life.
– In order to prevent heat losses, asphalt plant dryer is insulated with rock wool and a long-lasting insulation is provided by covering it with stainless steel sheet.
– TTC asphalt plant dryers work with soft starter to avoid problems under load.
– Dryer burners are supplied from world famous brands.
– Asphalt plant dryer (burner) can be supplied with double fuel if desired.

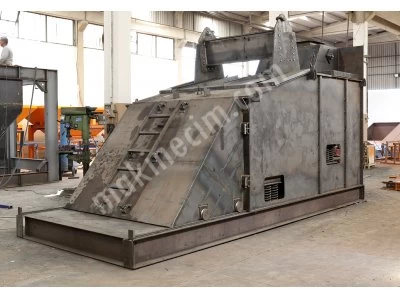

Vibrating Screen
The TTC asphalt plant screen unit eliminates aggregate with high precision thanks to its low slope and special screen arrangement.
Vibrating Screen Features;
– Dust-proof design
– Easily replaceable screen wires and easy maintenance
– 4-5 or 6 fraction screen design
– Screen by pass system
Batch Twinshaft Mixer
TTC asphalt mixing plant mixers have perfect mix and long-lasting wear parts with their special interior design.
Mixer Features;
– High quality gearboxes (synchronous) connected to each other, suitable for heavy duty operation.
– Heat and abrasion resistant inner casing plates
– Long-life mixer arms and shoes
– Heaters placed on the mixer discharge cover to prevent freezing

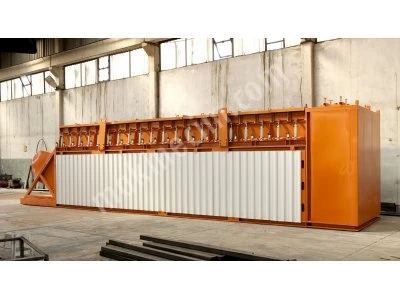

Bag Filter
TTC asphalt mixing plants separate stone dust and gas with their filters in accordance with modern technology and prevent environmental pollution.
Dust Filter Features;
– Filter, inlet and outlet temperature measurement
– Fresh air clapper to prevent the filter from being damaged by high temperature
– Heat resistant metaaramid upright bags
– Dustproof design
– The bags are easily interchangeable.
– Reverse flow bag cleaning system
– Isolation system suitable for climate conditions and heat transfer
Automation;
Asphalt Plant Automation Features ;
– Fully automatic and manual control options
– Software in the language suitable for the country where our customers are located
– Possibility to determine the desired number of recipes and report on how many products are given to which customer.
– High quality materials and equipment
– Emergency stop system suitable for work safety
