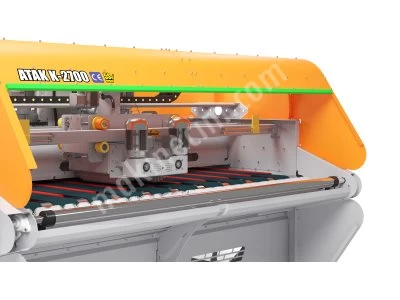

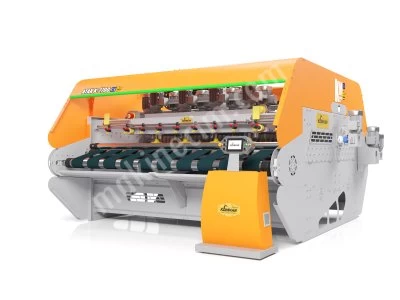

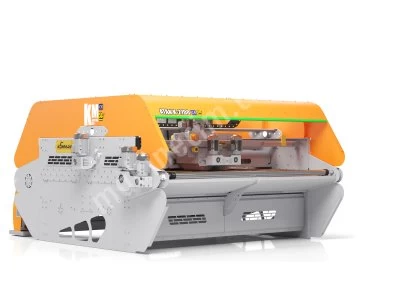

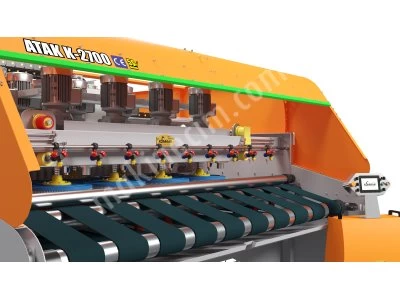

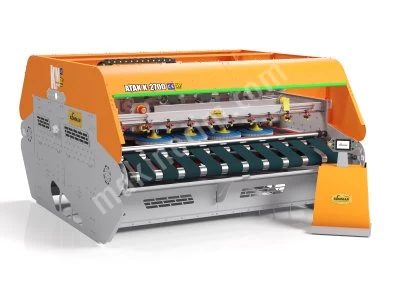

Atak K 2700 Automatic Carpet Washing Machine

ATAK K 2700 Technical Specifications:

• Total of 12 Brushed Compacts
• 4 prewash disc type brushing system (High quality 1st class heavy duty reducers are used.)
• 4 heavy wash disc type brushing system (High quality 1st class heavy duty reducers are used.)
• 6 mm thick high-strength steel main body case
• High strength conveyor drums with a diameter of 114.3 mm and a thickness of 5 mm.
• Heavy duty adjustable shaper type carpet printing system (The most successful linear system of German lathe type with stable printing.)
• Spring pressure system for homogeneous printing
• Helical middle brush system for fluff removal
• Reverse raking roller brush system (The most successful system)
• Rinsing opposite roller brushing system (The most successful system)
• Adjustable rinse water system
• Bottom wash roller brushing system
• carpet winding unit
• Possibility to wash all kinds of carpets
• 1st quality compact endless conveyor belt. ( Chemical resistant )
• Socket, adjustable belt tension and segmented belt system.
• Versatile, easy-to-use automation directory
• Manual buttons for frequently used functions in addition to the PLC screen
• Optimum operation of the machine with horizontal movement control according to the width of the carpet
• Possibility to control the speed of all units in the system thanks to the AC drives in the automation infrastructure
• Grid system that prevents carpet fringes from wrapping around the middle and lower washing brushes in fringed carpets.
• Double roller bearing hub system that can tolerate brush pressure stresses.
• Safety switches for machine safety
• The machines have been designed compactly with the mass production model and manufacturing and workmanship errors have been reduced to the level of the automotive industry.
• Manufacturing according to the principle of minimum failure level and working in the most severe conditions.
• High efficiency with less water with first class water spraying nozzles in the pre-wetting system.
• Maximum output level with low energy and water consumption.
• It can be produced as chrome, galvanized or epoxy oven painted upon request.
• 2.70 Belt width - Compact endless conveyor belt

• Total Number of Brushes: 12 pieces
• Voltage: 380-50 / V-Hz
• Brush Motor Power: 1.1 KW
• Brushing units: 8 Disc Brushes, 2 Roller Brushes, 2 Squeegee and Rinsing Brushes
• Total Power: 18 KW
• Disc Brushes Motor Speed: 1400 rpm
• Brush Cycle: 200 rpm
• Brush Diameter: 420 mm
• Carpet cleaning of 1000 square meters in 8 hours
• A 6 square meter carpet can be washed in 3 minutes on average.
• Carpet washing speed 1m/min per minute
• Electricity Consumption in 1 Hour: 11 KWh
• LxLxHeight: 3310x3560x1900 mm
